American DJ - DOTZ-TPAR-SYS

Description

The Dotz TPar System is an exciting all-in-one LED Wash system for mobile entertainers bands and stage lighting. This lighting system features a 4-head T-Bar light system each with one 30-Watt COB TRI LED (RGB), producing wide, saturated color washes of light with LEDs rated at an extremely long life of 50,000 hours. The system washes a very large area with its 90-degree beam angle. Or change the light output to a 25-degree beam with the included lens kit.

Great for any performer on-the-go, the Dotz TPar System is easy to set-up and take down. Plus, with low heat emitting LEDs performers stay cooler on stage. The system includes a tripod stand, a foot controller, RF remote control and a gig bags to help protect your equipment.

In addition to its built-in programs and foot controller, the Dotz TPar System may also be controlled by an external DMX Controller via its XLR In/Outs. User can also mount two smaller lighting fixtures on top of the T-bar and plug them in directly on the back of the bar.

System includes:
* 4x COB LED Par Wash Fixtures
* 1x Foot Controller
* 1x Lighting Stand
* 1x RF Remote Control

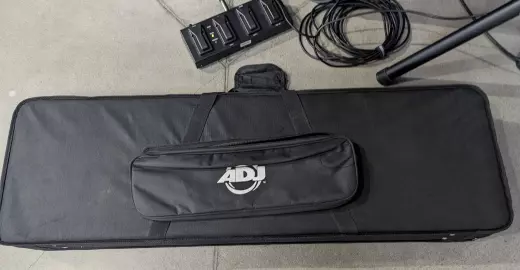

* 1x Stand Bag
* 1x Soft case for lighting system

Features:
* COB LED Par Wash System with 4 Par fixtures
* COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
* Smooth RGB Color Mixing (fast or slow color change operation)
* Great for Stage Lighting, Bands, Night Clubs & Mobile Entertainers
* Emits less heat on performers on stage as opposed to conventional stage lighting
* 4 Operational modes: Sound Active, Auto Run, Built-In Programs, & DMX-512
* Stand Alone or Master-Slave Setup
* Pixel Flip option changes pixel orientation
* 14 Built-in Programs
* 5 DMX Channel modes: 3, 5, 9, 12 and 18 channels
* Digital DMX Display with 4-button menu for easy navigation
* 3-Pin DMX In/Out
* Strobe & Pulse LED Effect
* Electronic Dimming: 0-100%
* 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
* Beam angle: 90-degree
* Includes 25-degree beam angle lens kit
* Long Life LEDs (Rated at approximately 50,000 hrs.)
* Foot Controller Features: Mode, Black Out and Program Change
* RF Remote Control control up to 25 meters
* Light Source: Each fixture has 1x 30-Watt TRI Color COB LEDs
* LUX @ 3M: 1345
* Power Draw: 144W Max (entire system)
* 2x power plugs on rear or plug in other lighting fixtures (120V = Edison or 230V = Shuko)
* Includes hardware to mount lighting fixtures on top of bar
* Multi-voltage operation: AC 100V-240V 50/60Hz (IEC Input)
* Dimensions (LxWxH): 39.5 x 12.75x 3.25/ 1000 x 320 x 82mm
* Weight: 35 lbs./ 16 kg. (Fixture Bar, Stand & Controller)
