HK AUDIO LINEAR ACTIVE SUB

Description

Description
Active, 2000 W, 1x 18" network ready, MILAN-ready (certification and implementation in preparation), Ethercon, DSP-Out, stereo pre-amplifier, 2x Powercon, compact body, cardioid-capable, M20 flange.

Details
• Maximum acoustic performance through high-efficiency speakers and powerful 2,000-watt Class-D power amplifier from Pascal
• Practical and highly efficient cardioid setup options to effectively reduce the bass level behind the PA
• Powerful DSP platform with built-in fully parametric 10-band EQ, delay and limiting for uncompromising customization
• Modern network technology for the targeted control of all DSP features of each individual Linear 7 Box from the FOH location
• Additional DSP-Out with the full feature range of the powerful DSP for operating non-network-capable active speakers (eg existing tops from the HK-Audio LINEAR series)
• Stereo pre-amp to operate as a center sub or 2.1 setup. Even without network integration directly on the box selectable cardioid presets
• Future-proof audio streaming (certification for MILAN is in preparation)
• 96 kHz high-resolution converters, FIR filtering, low latency
• Extremely compact and lightweight housing made of birch plywood
• Cardioid for practitioners: While medium and high frequencies are emitted by nature, low frequencies are spherical. This often leads to an unpleasant excess of low bass on and behind the stage. Even more serious, it is becoming increasingly common for broadcasters to make precise specifications for sound distribution. This is to implement in the bass range only with cardioid technique. The 18" LINEAR 7 subwoofer fulfills the prerequisites for implementing cardioid setups quickly and easily, both mechanically and with the available filter sets.
• Peak power: 2,000 W
• Power Amp: Class D
• Woofer: 18" (4" voice coil)
• Analog inputs: 2x XLR / 6.3mm jack
• Analog Thru: 2x XLR
• DSP out: XLR
• Networking: 2x Ethercon
• DAN protocol (audio streaming): Milan (certification in preparation)
• DSP functions: fully parametric 10-band EQ with variable filter characteristics, high pass filter, low pass filter, polarity, level, delay, limiter, cardioid setup
• Operating systems for remote software: Windows, Mac OS (App for iPad follows)
• Sampling rate: 96 kHz
• Latency: 2.6 ms
• Mains connection: 2x Powercon
• Power adapter: Automatic switching power supply (100 to 240 Volt)
• Front grille: 2 mm powder-coated metal grid, black acoustic foam
• Cabinet: 15 mm multiplex
• Surface: Environmentally friendly Warnex acrylic paint

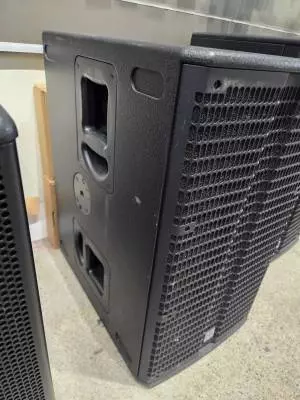

• Handles: 2x MultiGrip

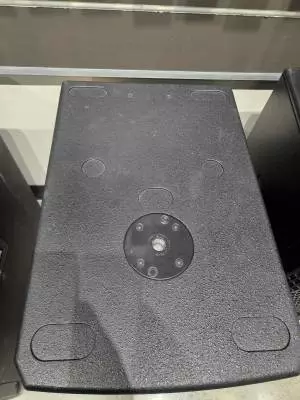

• Stnd Adaptor: M20
• Dimensions: 55 x 55 x 68 cm
• Weight: apx. 42 kg
