Electro-Voice - ZXA1-90W

Description

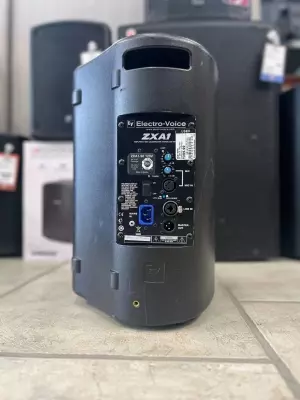

8-inch Two-Way Powered Full-Range Loudspeaker

An incredibly versatile solution for mobile DJ and small-venue sound reinforcement, ZXA1 features the latest professional-grade Electro-Voice drivers and a powerful 800-W amplifier, all presented in a stylish, super-durable ABS enclosure to create a lightweight loudspeaker that looks as good as it sounds. Whether used as a standalone loudspeaker or with a sub, turn up a ZXA1 and your eyes won't believe your ears: small-format never sounded better.


Features:

* Integrated 800-W Class-D amplifier (biamplified design with transducer protection)
* EV8L 8-inch high-output LF transducer and
* DH2005 1-inch-exit true compression driver
* Rotatable 90 x 50 horn
* 126 dB maximum SPL
* Selectable high-pass filter for use with subwoofer
* Line and microphone inputs
* Integral monitor angle and built-in pole mount
* Rigging kit available
* 19 pounds, with integral handle for easy carrying

Specifications

Amplifier Power: 800 Watts (RMS)
Color: White
Input Connections: XLR and TRS Combo; XLR with Independent Gain
Power Requirement: 120V: 95V - 132V, 50 - 60 Hz, 0.6A;
230V: 190V - 264V, 50 - 60 Hz, 0.4A
Speaker Type: Full-range, powered monitors, powered speakers, two-way, wedges
Frequency Response (-3 dB): 60 - 20000 Hz Full Range Mode
Frequency Response (-10 dB): 48 - 20000 Hz Full Range Mode
Recommended High-Pass Frequency: 36 Hz User Selectable
Max. SPL/1m (calc): 126 dB
Enclosure Material: High Impact Polystyrene
Grill: Polyester Powder Coated, 18GA Galvanized Steel
Height: 457 mm (17.99")
Width: 282 mm (11.1")
Depth: 264 mm (10.39")
Weight Net: 8.62 kg (19 lbs)
