Pittsburgh Modular - TAIGA KEYBOARD

Description

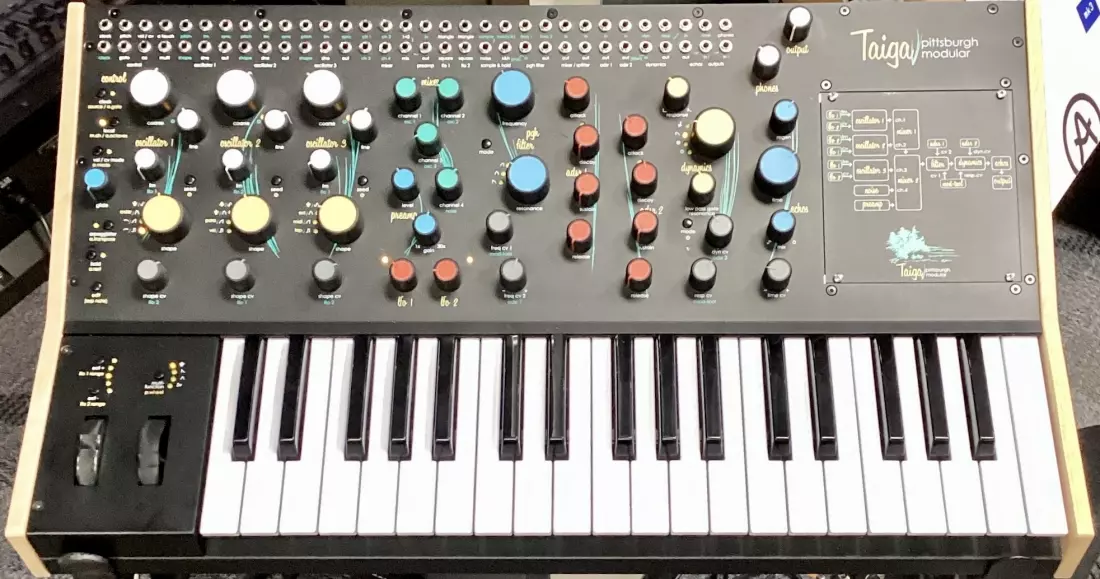

Taiga Keyboard is an evolution of the award-winning Taiga synthesizer. Taiga presented users with several unique inventions from the Pittsburgh Modular Synthesizer team. Now with Taiga Keyboard, that same powerful collection of tools acts as a foundation in this new keyboard instrument.

In addition to the Taiga core sound engine, Taiga Keyboard's larger format affords additional room in the layout, spreading controls out and adding larger knobs for better onstage-centric ergonomics. There are also additional modulation sources, more controls, a full-size 37 key premium aftertouch-enabled keybed, and its first-of-its-kind, modular expansion bay.

Features

* Taiga Keyboard oscillators
* The "Pittsburgh Filter"
* Pittsburgh Dynamics Controller
* Open Architecture
* Modular Expansion Bay
* Keybed and additional MIDI control

Specifications

Paraphonic synthesizer with unique additive elements
37 note aftertouch equipped keybed with full-sized keys
Fully patchable - use Taiga Keyboard's components as separate modules with external devices or reroute its internal patching.
24hp powered Eurorack Modular Expansion Bay
64 point patch bay for rerouting internal signal flow and integrating external sound and modulation sources
Controllable via MIDI, CV, and integrated pseudo random sequencing mode
Clock-synced arpeggiator
3x Pittsburgh Modular Synthesizer developed 100% analog oscillators, each with dedicated coarse and fine controls
Oscillator waveforms - sine, triangle, and saw - Waveforms can be combined
3x Pittsburgh Modular Synthesizer 6 stage wave folder/shaper circuit - folds inputted waves back onto themselves to increase harmonic content
Oscillators include frequency modulation (FM)
Noise generator - pitched somewhere between pure white and pink noise. Perfect for percussion or adding a bit of edge to a sound.
Variable state, multi-mode "Pittsburgh No-Dead-Spots" filter (lowpass, bandpass, highpass, modes can be combined)
Sample & Hold circuit
2x Analog ADSR / envelope generators
Pittsburgh dynamics section - an alternative to an envelope generator and a VCA, the dynamics controller is a Pittsburgh Modular invention that adds a dimension of control over a vactrol-less lowpass gate circuit, adding release time. (read more on this in the user guide)
2x Dual range analog LFOs with square and triangle wave outputs.
LFO Range High: 2 Hz to 500 Hz Low: 41 seconds to 5 Hz
Dual Channel Mixer - 2 2-channel mixer and a 3-channel mixer joined together, capable of mixing both audio or control voltages.
Preamp that uses a high gain, soft clipping overdrive limiter circuit to increase the level of audio signals. The preamp can be used to cleanly increase the level of external audio to internal signal levels, or it can be used as an overdrive / limiter for internal signals.
Digital multi-mod tool - modulation control via CV, random generator, and extra LFO and envelope generator
Internal clock with tap tempo and can be clocked via an external source.
Built-in clock divider
Echos - 100% analog bucket brigade delay
