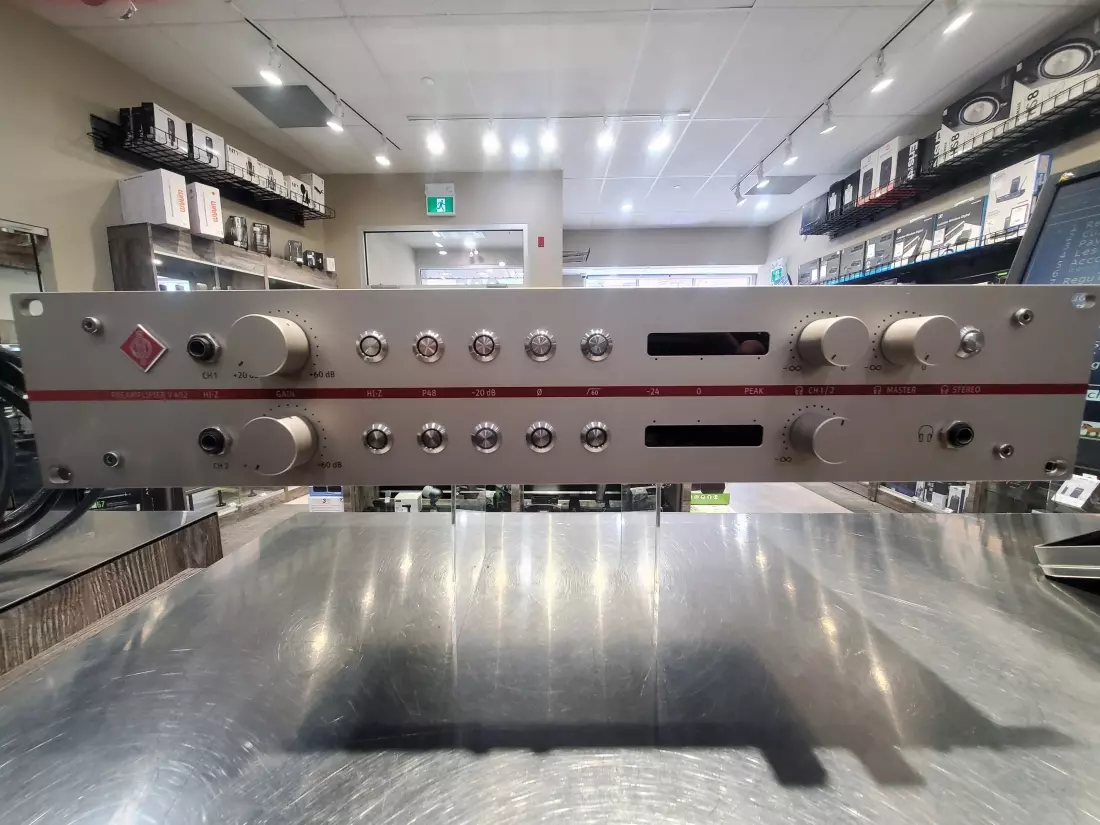

Neumann - V 402

Description

The V 402 is a state-of-the art dual channel microphone preamplifier with an integrated studio grade headphone amplifier. Its transformerless circuitry is designed for maximum transparency and sonic purity. The V 402 is thus the perfect complement to all Neumann microphones in order to unveil the true character of voices and instruments.

The DI inputs, also designed for sonic purity, will capture the sound of electric guitars and bass guitars as well as other instruments without coloration or loss of detail. Sophisticated circuitry and a very high input impedance ensure a brilliant sound with no audible noise.

A switchable 20 dB pad allows the V 402 to be used with high level sources up to 28 dBu without distortion. The high pass function is carefully designed to remove pops and rumble without signal degradation.

For easy monitoring the V 402 is equipped with a studio grade headphone amplifier ensuring superb monitoring quality at the recording stage. Independent volume controls for each channel allow you to dial in a latency-free monitoring mix without affecting the recorded signal.

Features:
* Dual channel state-of-the-art transformerless microphone preamp
* Two studio quality instrument inputs with very high impedance
* Switchable low cut removes rumble without signal degradation
* Exceptionally clean headphone amplifier
* Easy monitoring mix with volume control for each channel
* Handmade in Germany

Specifications
Frequency Range: < 10 Hz to > 100 kHz (-3 dB@ 40 dB Gain)
Mains Power Supply: Input Voltage; frequency: 100-120 V and 220-240 V; 50 Hz/60 Hz
Power Consumption: max. 25 W
Ground Lift: switchable on/off

Microphone Inputs
Connector: 2 x XLR 3 F
Input Impedance: approx. 3 kΩ
Minimum Gain: +20 dB (PAD off)
Maximum Gain: +60 dB (PAD off)
Attenuation PAD switchable: off/-20 dB
Maximum Input Level (PAD off): +8 dBu
Maximum Input Level (PAD on): +28 dBu
EIN @ 60 dB Gain / 50 Ohm 1: -129,4 dBu(A)
EIN @ 40 dB Gain / 50 Ohm 2: -129,2 dBu(A)
THD Mic In @ 1kHz /40 dB Gain / +12 dBu: 0.00018%

Power Supply (P48, IEC 61938): 48 V, max. ≥ 10 mA, switchable on/off

Hi-Z Inputs
Active: switchable on/off
Connector: 2 x Jack 6.3 mm (1/4"), mono, unbalanced (front)
Input Impedance: 3.3 MΩ
Maximum Input Level: +21 dBu
Minimum Gain: 0 dB (PAD off)
Maximum Gain: +40 dB (PAD off)

Bargraphs per Channel: -24 dBu to +24 dBu in 6 dB steps
Bargraphs Peak Hold: indication @ +24 dBu (hold time approx. 3 sec.)

Headphone Output
Mono/Stereo: switchable
Connector: jack 6.3 mm (1/4"), stereo (front)
Volume Control: for left & right channel + Master
Output Impedance: approx. 2 Ω
Maximum Output Level: +20 dBu into 150 Ω load impedance

Outputs
Connector: 2 x XLR 3 M
Output Impedance: approx. 200 Ω
Maximum Output Level: +26 dBu into 1 kΩ load impedance

High Pass Filter: 60 Hz, 12 dB/oct, switchable on /off

Product Dimensions (height x width x depth): 89mm x 483 mm x 242 mm
Weight: 6.2 kg

Operating Conditions: 0 degC to +50 degC; < 75% RH@ +40C; non-condensing
