American DJ - WMX1 STANDALONE DMX CONTOLLER

Description

The ADJ Lighting WMX1, powered by Wolfmix, is a standalone lighting control system designed with the performer in mind. Featuring a 4.3" colour touchscreen display and 37 backlit silicone buttons, it allows intuitive hands-on control of a DMX lighting setup. It features a toolbox of FX modules and eight independent fixture groups which allow for the simple creation of high-impact light shows on the fly without a computer. Ideal for mobile entertainers as well as bars, clubs, and entertainment venues, this compact but powerful controller puts creative lighting control at any users fingertips.

Features
* Calibrate and RGB, White, Amber, UV mixing with automatic fixed colour wheel translation
* Automatic matching of similar gobos across different fixture types
* Timed release of flash and preset buttons
* Fixture FLIP function, for reversing beam order
* Fixture SPLIT function, for splitting up multi-FX bars
* Lock full controller, or lock editing with a password
* Project & fixture backup with WTOOLS app
* Offline 3D visualisation with Easy View & WTOOLS over USB
* Auto-recovery of active project (no manual saving needed)
* Import different fixture setups into the same project
* Starts in under 2 seconds. Starts sending DMX in under 1 second
* Factory firmware startup recovery mode for times of crisis

Specifications
Palettes & FX
Colour FX module with 8 effect types & 16 definable colours
Move FX module with 8 effect types
Beam FX module with 8 effect types
6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed, Blackout & Smoke
Static colour palette with 10 user definable colours per group & gradient control
Static position palette with 5 user definable positions per group with fade & fanning
Gobo palette with 5 user definable gobos per group
20 nameable live edit buttons with flash triggering mode and Park function
100 nameable presets for storing snapshots with hold and fade timings
Preset playback cue list- all presets or per page of 20 presets

Control & Sync
Group and master dimming with encoder acceleration
Group FLASH, FULL and Blackout
16 bit Pan/Tilt control
Multi-beam LED bar control
FX music pulse sync from Microphone or Line-In
FX BPM sync with Ableton Link, OS2L or BPM TAP
Effect Speed, Phase, Order, Size, Fade, Fan & Flick
Live control of move FX registration point
Global FX speed and freeze control
Map DMX IN with group dimmer and patch to output channels
WLINK - sync with another Wolfmix controller

Built-in Tools
Fixture Builder
Fixture calibration tool, to limit the area of moving fixtures
X-Y touch controlled positioning grid
RGBW touch controlled colour picker
8-step real time sequencer for creating beam and move FX
Live view of DMX levels with default value override and DMX channel tester
Beam Editor to override Min and Max values used in generated FX

Display
4.3 colour TFT with tinted glass
Capacitive touch

Encoders
Full body alloy
Incremental push with acceleration

Button Pads
37 Silicone buttons with matt oil finishing
LED colour backlit

Processing
220Mhz CPU with ARM core
8MB RAM
16MB Flash

Audio
Omnidirectional electret mic
3.5mm Jack Line-In
Analog adaptive peak detector

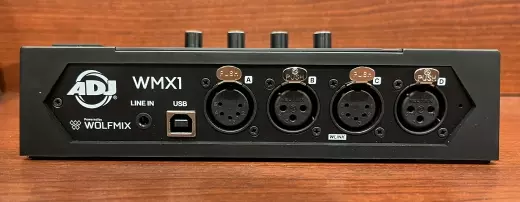

DMX
2x 3pin DMX OUT XLR connectors
1x 5pin DMX OUT XLR connector
1x 5pin DMX IN/OUT XLR connector with WLINK
USB-B connector - 900ma required (USB3 rating)
High-speed USB communication

Housing
ABS Plastic
Powder-coated steel base plate with 100mm VESA (M4 6mm max)
Powder-coated steel reinforced back plate

Size and Weight
Dimensions: 195 x 220 x 62 mm (7.68 x 8.66 x 2.44")
Weight: 1070 g (2.36 lbs)

*Some features require an add-on purchase available through the WTOOLS app
