Roland - Stereo Mixing Keyboard Amp

Description

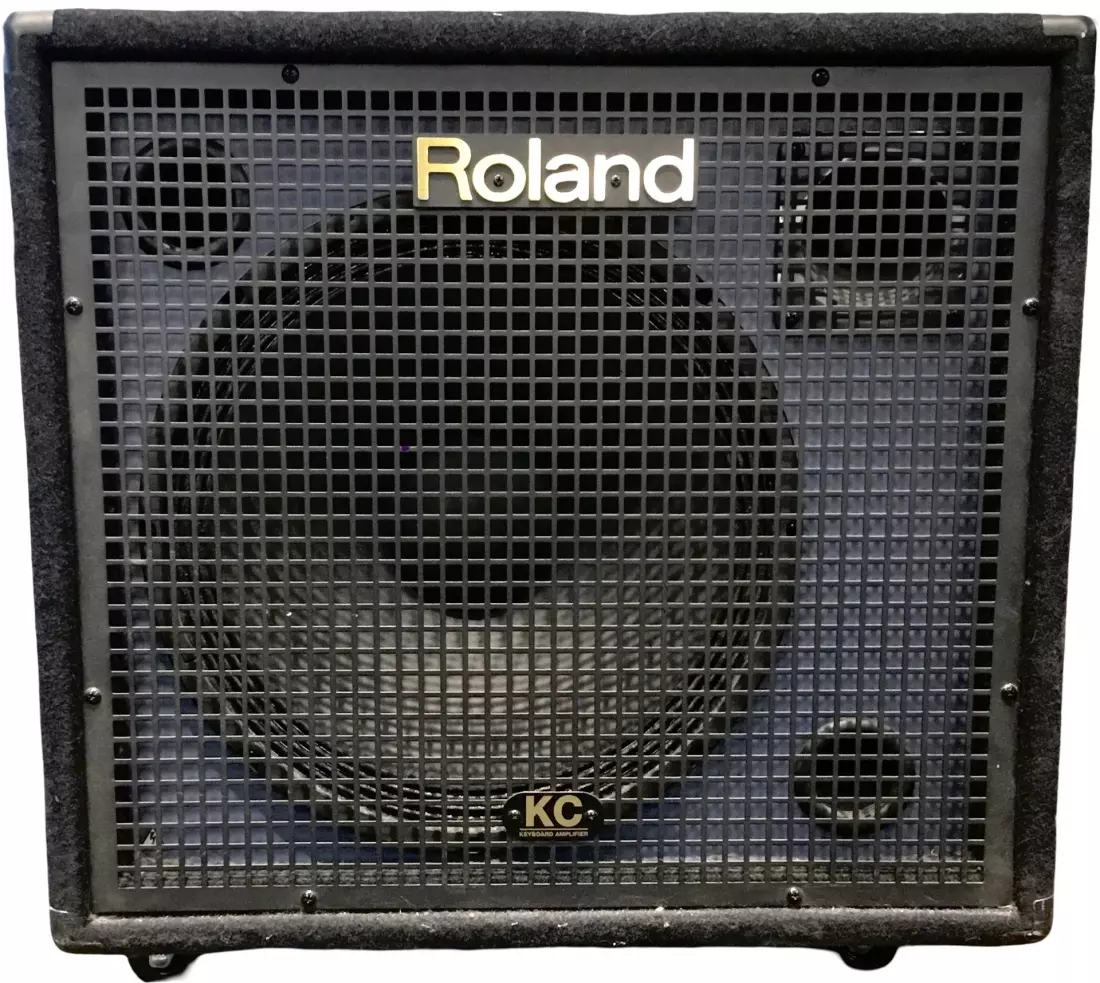

The KC-550 boasts 180 watts of powerful sound via a 15-inch speaker and horn tweeter. In addition to its four input channels, this flagship amp includes an Output Select switch for selecting the monitor sound destination, a Shape switch for quick sound adjustment and an XLR Line output for direct connection to a mixing console.

- Flagship keyboard amplifier with powerful 180-watt/15 speaker and horn tweeter
- Output Select feature and convenient Shape switch for tonal adjustment
- 3-band EQ and Subwoofer output compatible with new KCW-1
- XLR Line output for connection to mixing consoles
- Stereo Link In/Out for chaining to KC-550s for stereo applications

OUTPUT
Rated Power Output: 180 W
Speakers: 38 cm (15 inches) x 1, Tweeter x 1

NOMINAL INPUT LEVEL (1 KHZ)
Channel 1 (MIC/LINE): -50 to -20 dBu
Channel 2-4 (LINE): -20 dBu
STEREO LINK INPUT: 0 dBu
AUX IN: -10 dBu

NOMINAL OUTPUT LEVEL (1 KHZ)
LINE OUT: +4 dBu
STEREO LINK OUTPUT: 0 dBu
SUBWOOFER OUT: +4 dBu
CONTROLS

CONNECTORS
CH1 INPUT Jack (XLR type)
CH1-4 INPUT L (MONO) Jacks (1/4" phone type)
CH1-4 INPUT R Jacks (1/4" phone type)
LINE OUT L (MONO) Jacks (XLR type, 1/4" phone type)
LINE OUT R Jacks (XLR type, 1/4" phone type)
AUX IN Jacks (RCA phono type)
SUBWOOFER OUT Jack (1/4" phone type)
STEREO LINK OUT Jack (1/4" phone type)
STEREO LINK IN Jack (1/4" phone type)
PHONES Jack (Stereo 1/4" phone type)
