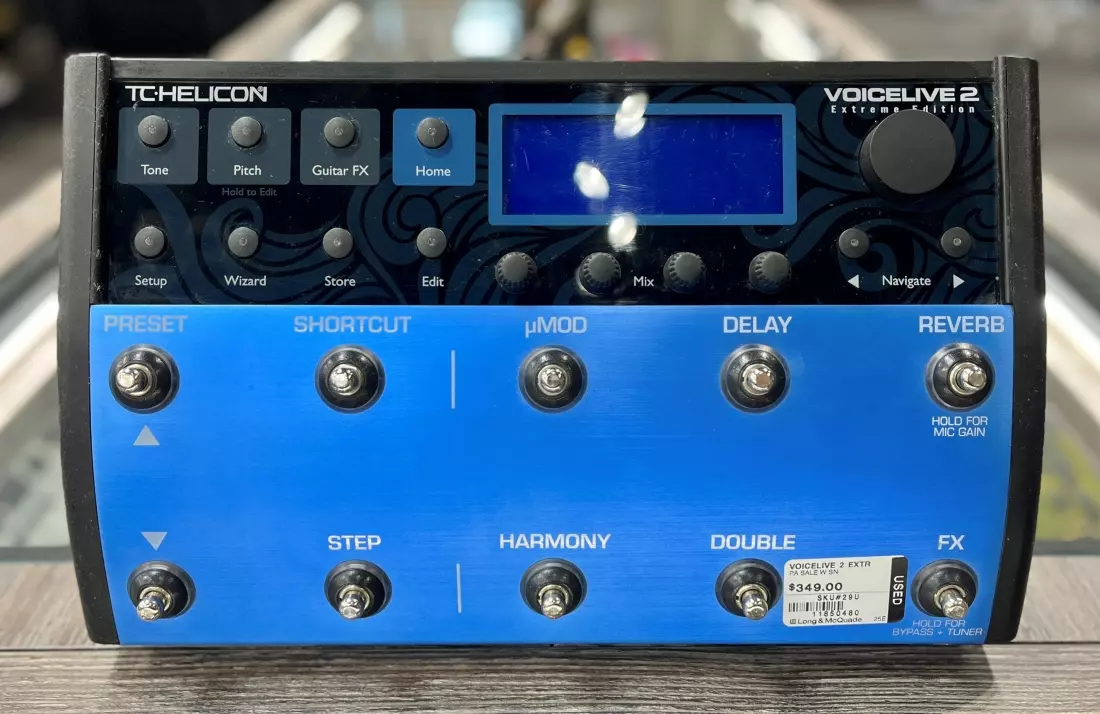

TC Helicon - Voicelive 2 Extreme

Description

*** GOOD CONDITION ***
- Rubberized sides are slightly tacky
- Comes with original power supply

The VoiceLIve 2 Extreme Edition is a limited release that pushes aspects of the product to the max on quality and features. The VoiceLive 2 floor-based vocal processor from TC Helicon makes it easier to lead your own vocal backup group while sounding rich and authentically human at the same time. It starts with a guitar, MIDI keyboard, or aux-input controlled vocal harmony algorithm with four intervals, each of which can be unison-doubled, or 8 discrete voices controlled by your MIDI keyboard playing. And when you want to tap into your gospel soul, VoiceLive 2 effects pedal gives singers a Choir algorithm that creates the massive multi-voice group vocal sound to bring home those classic choruses. The Extreme Edition gives you an enhaned Mic Pre amp with increased transparency, double the looping memory, special presets via VoiceSupport, and an extruded aluminum blue casing with artist-inspired graphics.

SPECIFICATIONS

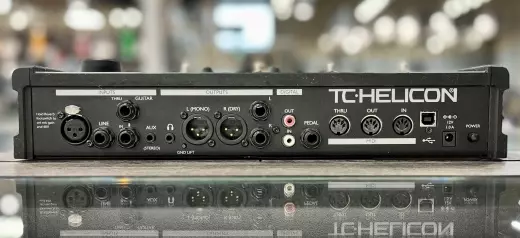

Analog Inputs
- Mic (XLR), Line (1/4" TRS), Guitar (1/4" TS), Aux (3.5mm)
- Mic Input Level @ 0 dBFS: -49dBu to +10dBu
- Line Input Level @ -37 dBu to +22 dBu: -37 dBu to +22 dBu
- EIN @ Max Mic Gain Rg = 150 Ohm: -127 dBu
- High Gain/High Power NPN Bipolar transistor front end
- Mic/Line Input SNR: >107 dB
- Guitar Input Level @ 0 dBFS: 14 dBu to -4 dBu
- Guitar Input SNR: >104dB
- Aux Input Level @ 0dBu: +2dBu
- A to D Conversion: 24 bit, 128 x oversampling bitstream, 110dB SNR A-weighted

Analog Outputs
- Main: XLR (Left & Right), TRS (Left & Right)
- D to A Conversion: 24 bit, 128 x oversampling bitstream, 115dB SNR A-weighted
- Output Range (Line/Mic Level): 16 dBu / 0dBu
- Dynamic Range: > 109 dB, 20 Hz to 20 kHz
- Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz
- Headphone Out: 3.5mm (32 Ohm, 180mW max)

Digital Audio
- USB, S/PDIF (RCA)
- Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958, USB Audio
- Sample Rates: 44.1 kHz, 48 kHz, 88.2kHz, 96kHz

Control Interface
- USB: USB-B
- MIDI: In/Out/Thru: 5-pin DIN
- Pedal: 1/4" TRS phone jack

Design
- Dimensions: 13.8"W x 3"H x 8.5"D
- Weight: 5lb.
