JBL JRX115

Description

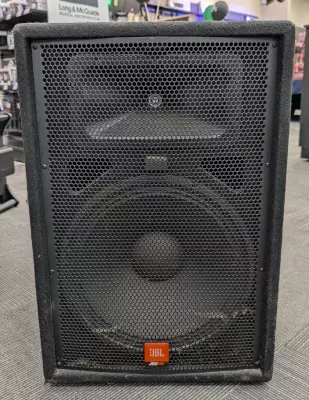

The JRX115 is a portable, fifteen-inch, two-way speaker system designed
specifically for applications in live music, music playback, and reinforcement of speech. With the smooth, natural sounding mid-range of the system, the JRX115 does a great job projecting live vocals, solos and speech.
The extended lows and great top-end make it at home for music playback
in DJ applications or anywhere live sound reinforcement is needed.
Features include the dual-angle, 36 mm pole-mount socket as well as
Neutrik® Speakon® and ¼" input connectors.

Specifications:
System Type: 15" 2-way, sound reinforcement speaker
Frequency Range (-10 dB):2 38 Hz - 16 kHz
Frequency Response (±3 dB):2 50 Hz – 12.5 kHz
Sensitivity (1w/1m): 98 dB SPL
Nominal Impedance: 8

Power Capacity:1 250 watts
Peak Power Capacity:1 1000 watts
Recommended Amplifier 250-500 watts
Power: @ 8

Maximum SPL: 128 dB
Nominal Dispersion: 90° x 50°
Crossover Frequency: 1.6 kHz
Dimensions (H x W x D):3 699 mm x 460 mm x 432 mm
(27.5 in x 18.1 in x 17 in)
Weight: 27.4 kg (60.5 lb)
Shipping Weight: 30.4 kg (67 lb)
High Frequency Driver: JBL 2412, 1" exit compression driver mounted on Progressive
Transition™ Waveguide
Low Frequency Driver: JBL M115-8A

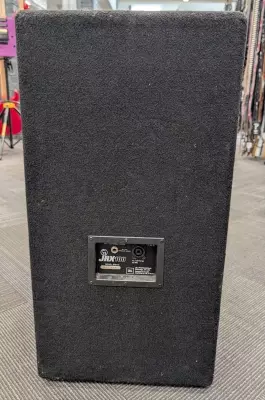

Input Connectors: Parallel Neutrik® Speakon® NL-4 (x1); ¼" TS phone jack (x1)
Enclosure Construction: 19 mm (¾ in) MDF (Medium Density Fiberboard); with glued
and mechanically fastened joint detail; covered in black
carpet.
Grille: 18-gauge, powder-coated steel
Mounting & Suspension: 36 mm, dual-angle pole-mount socket
