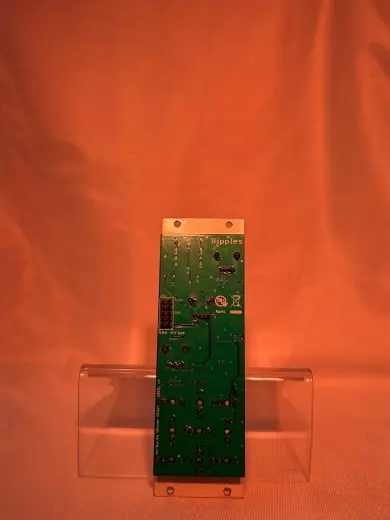

DIY RIPPLES
Sale Price: $249
Buy From Store
Customer responsible for any shipping charges.
Description

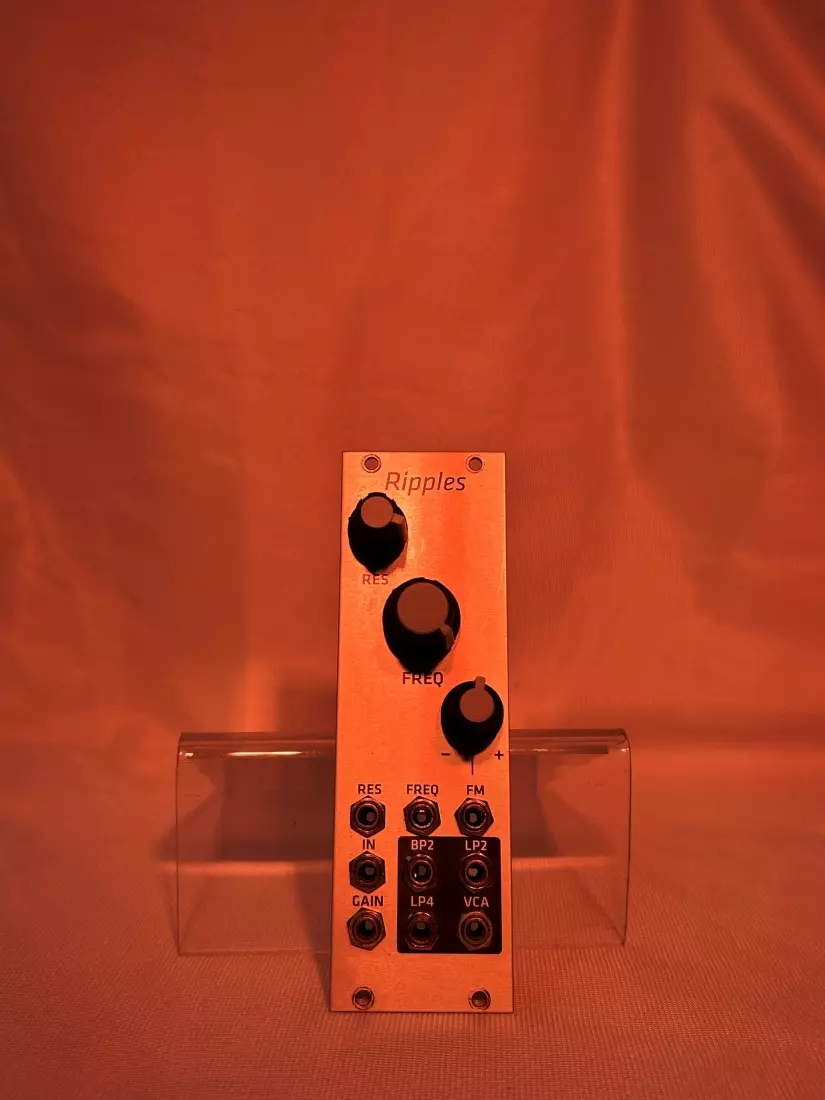

Controls
- Cutoff frequency, 18Hz to 18kHz
- Resonance (self oscillation at 80%)
- Attenuverter on Frequency CV
Inputs and outputs
-Signal in
-Frequency CV 1 (1V/Oct)
-Resonance CV. Self oscillation starts at 4V. Control voltages above 5V are non-linearly compressed, -for fine control of resonance overdrive
Technical characteristics
- Fully analog, based on SSM2164 low noise/distortion quad VCA chip, and LM13700 OTA for that extra bit of non-linearity.
- Frequency CV inputs impedance: 100k.
- Audio input impedance: 75k.
- Resonance and VCA CV input impedance: 30k.
- Open-source hardware.
-Frequency CV 2 (with bipolar attenuator, from -1V/Oct to 1V/Oct)
-VCA level. Control voltages above 5V are non-linearly compressed.
-2-pole BP output
-2-pole LP output
-4-pole LP output
-4-pole LP output attenuated by VCA
