The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

FEATURES

* Compact bodypack transmitter, unobstrusive clip-on microphone

* Antenna-switching diversity reception

* Integrated antennas

* Automatic frequency management and synchronization via remote channel for easy setup

* Selectable UHF frequencies within a large bandwidth

* Up to 10 compatible channels

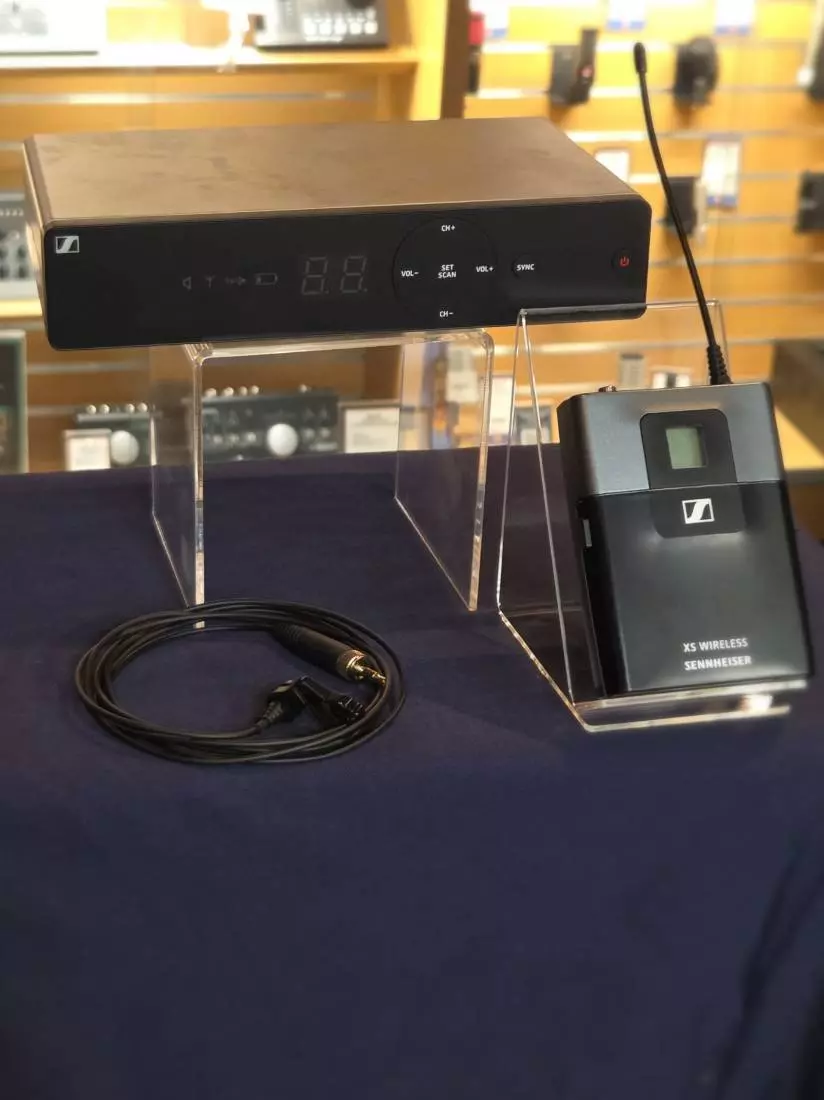

WHAT'S IN THE BOX?

1 receiver EM-XSW 1
1 lavalier microphone ME 2-2
1 bodypack transmitter SK-XSW
1 power supply NT 12-5 CW
2 AA batteries

TECHNICAL DATA

Receivers

Dimensions: approx. 200 x 42 x 127 mm
Weight: approx. 340g
Power supply: 12 V DC nom. / 300 mA
AF frequency response: 50 to 16,000 Hz (3 dB)

Transmitter

Dimensions: approx. 71 x 96 x 28 mm
Weight: approx. 95g
Power supply: 2 AA size batteries, 1.5 V
Adjustment Range: Transmitter 0 to -30 dB, adjustable in 10 dB steps

Microphone condenser

THD, total harmonic distortion: =< 0.9%
Pick-up pattern: cardioid
Signal-to-noise ratio: => 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Operating time: approx. 10 hrs
Modulation: wideband FM
Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: rugged ABS housing
Diversity reception: antenna switching diversity via internal antennas
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Sensitivity: < 3 μV at 52 dB(A)rms S/N
SPL for peak deviation: 130 dB
Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
