Description

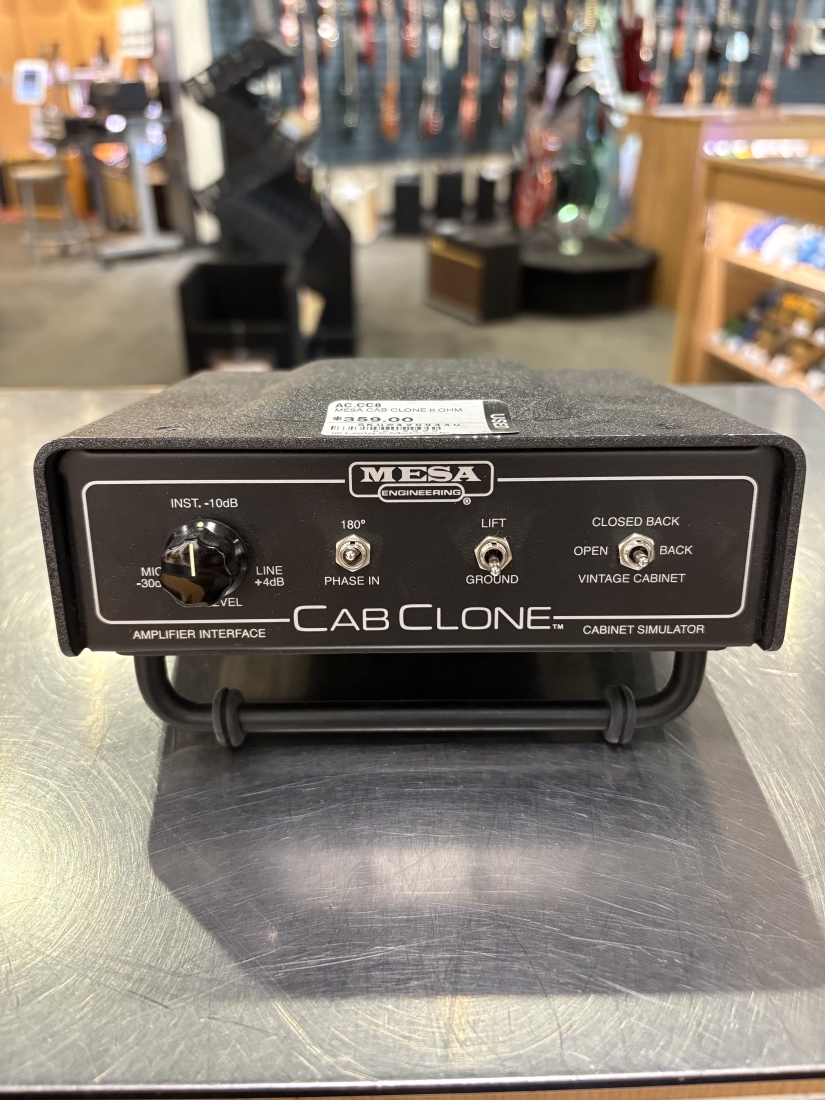

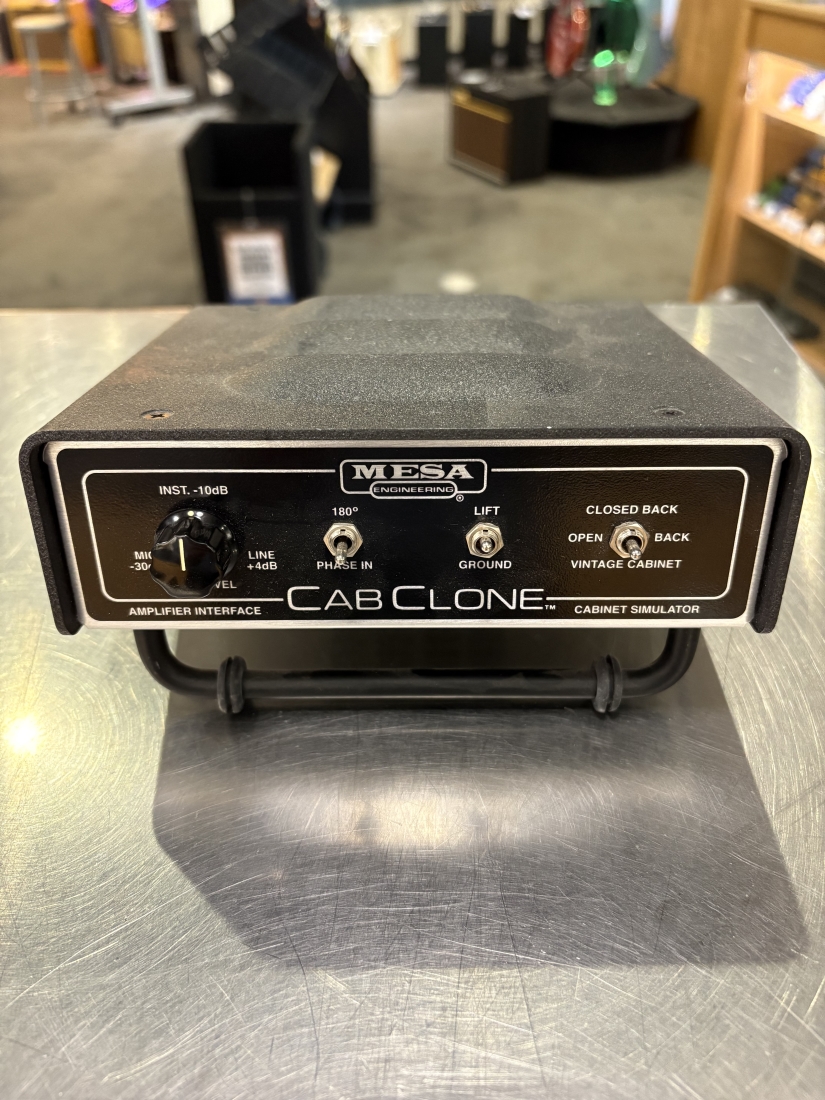

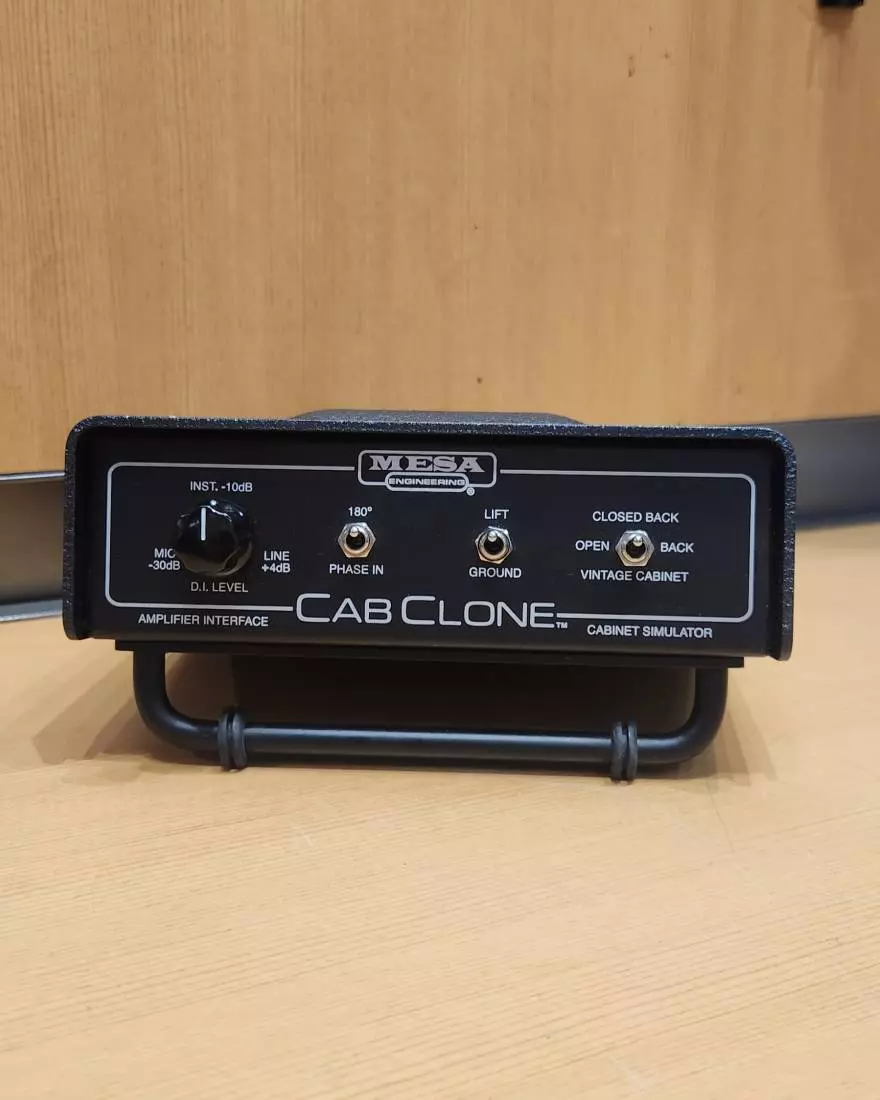

The New CABCLONE - 8 ohm Cabinet Simulator with Built-In Amp Load & Headphone Output
The CABCLONE is a passive Cabinet Simulator/Speaker+Mic alternative with a built-in Amp Load. It provides a direct interface of your guitar amps Speaker Output to the input of a mixing console, microphone preamp or even direct to your converters (recorder) with or without the need for a speaker cabinet. Its also a Compensated Headphone Driver that delivers a great sounding, great feeling headphone-friendly version of your amps Tone thats perfect for late night practice sessions or anytime you want to play without others listening.
CABCLONE - Cabinet Simulator with Internal Amp Load & Headphone Output
Designed and Handcrafted in Petaluma, California, USA
Passive Design No Power Supply Required
Built-In Internal Amp Load FOR AMPS RATED 150-WATTS OR LESS (auto-activates when no cable is
connected to Thru Output)
Input Jack (receives signal from amps speaker output)
Thru Output Jack (defeats to Internal Load when no cable is connected)
3-Position Cabinet Voicing Switch - Open-Back, Closed-Back & Vintage Closed-Back Cabinet Simulations
Variable -30 to +4db DI Output Level Control with presets for Dynamic Mic Level (-30db), Instrument
Level (-10db) & Line Level (+4db)
Balanced XLR Direct Output (controlled by the Variable DI Output Level Control)
Independent +4 Line Level Slave Output Jack (exact signal from amps speaker output, non-
simulated)
Compensated Headphone Output Jack (defeats balanced outputs when used)
Phase Switch Normal (In) or Reverse (180)
Ground Lift Switch
Removable Tilt-Back Stand (for use over an amp handle)
Formats:
4 Ohm For amps rated 150-watts or less
8 Ohm (standard) For amps rated 150-watts or less
16 Ohm For amps rated 150-watts or less
Specifications:
Dimensions (W/D/H): 6.7" x 6.40" x 2.30" without tilt-back stand (3.30 with tilt back stand)
170.18mm x 162.56mm x 58.42mm without tilt-back stand (83.82 with tilt back stand)
Weight: 2.4lbs (1.09Kg)
WITH Tilt-Back Stand
/ 2.3lbs (1.04Kg) WITHOUT Tilt-Back Stand
