Gear Hunter

Small digital console. Big power.

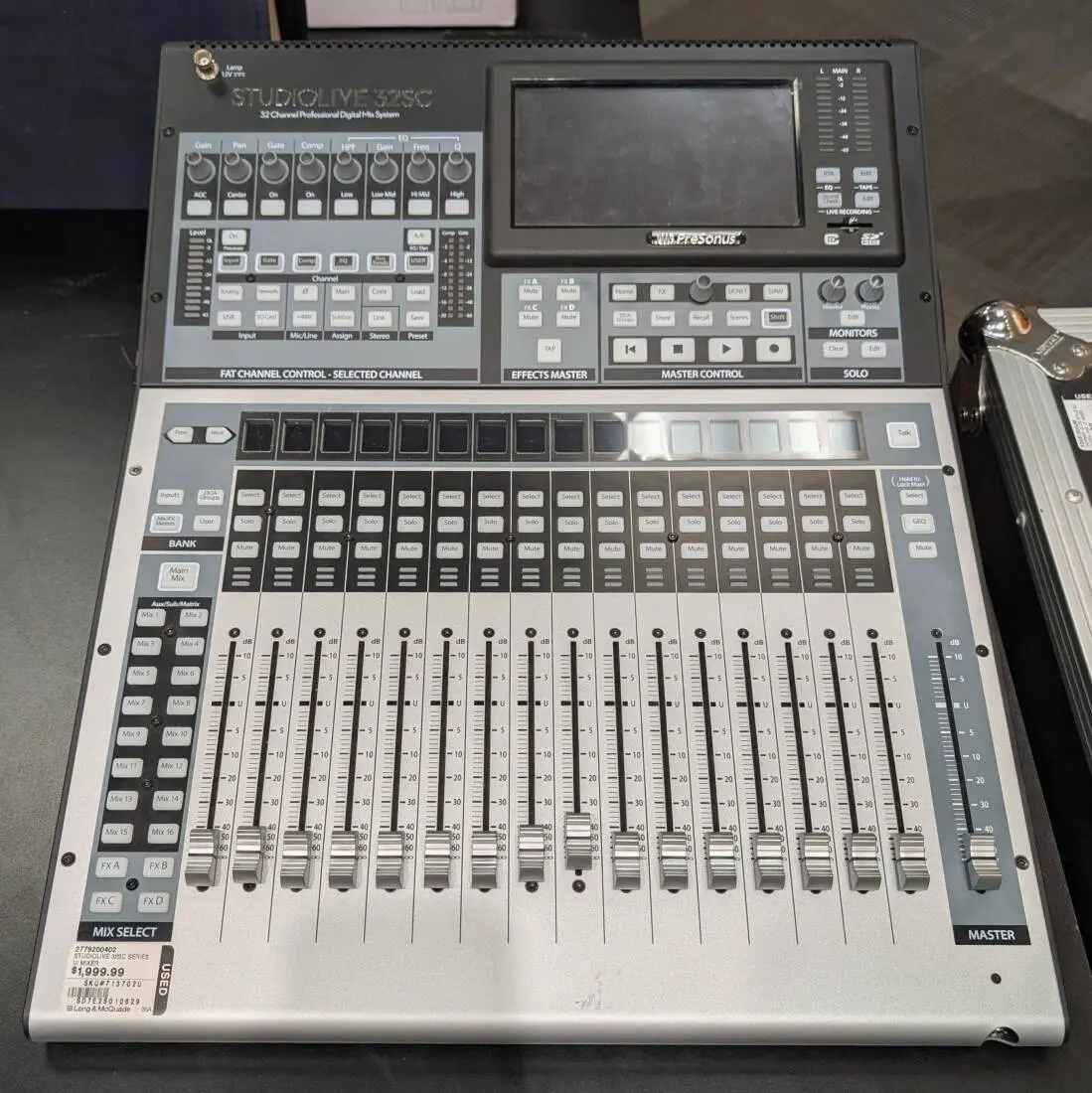

The StudioLive 32SC is a compact, rack-mountable 32-channel digital console that easily adapts to 16, 24, and 32-channel setups. Don't let its tour-friendly size fool you: the StudioLive 32SC packs a dual-core PreSonus FLEX DSP that handles 40 mix channels, 26 mix buses, and 286 simultaneous processors, including four stereo reverb systems and Fat Channel plug-in templates on every input channel and mix bus. With 128 channels of USB recording (64x64) and AVB network audio inputs/outputs, flexible routing options, and studio-quality audio, the StudioLive 32SC gives you all the tools you need, whether you're building your dream studio or a professional touring setup.

The scalable digital mixing console.
The StudioLive 32SC digital mixing console and the complete AVB PreSonus StudioLive Series III network ecosystem let you create a fully customized system. Connect NSB Series Stage Boxes to add remote analog inputs and outputs wherever you need them and expand your 32-channel, 16-bus StudioLive 32SC setup. Add EarMix 16M Personal Stage Monitors to give your musicians their own customizable 16-channel monitor mixes. Multiple StudioLive Series III digital mixing consoles can be networked, allowing you to route audio to and from any device on the audio network using the flexibility of your StudioLive 32SC's digital patching and the UC Surface remote mixing software.

The best music recording software, included!
Studio One revolutionized music recording, simplifying common mixing and production tasks with an intuitive drag-and-drop interface. Its tight integration with StudioLive 32SC digital consoles lets you control preamp levels and much more directly from the Studio One software console. Press the DAW button on your StudioLive 32SC, and Studio One controls instantly appear on your digital console. Studio One control can be toggled on or off, allowing you to quickly switch between your live mix and your final mix with the touch of a button. Studio One Artist is included with the StudioLive 32SC, so you can start recording immediately.

Control your digital mixing console remotely, from anywhere, on any device.
PreSonus StudioLive Series III digital mixing consoles are seamlessly integrated with a comprehensive and powerful software suite. Mix wirelessly using the UC Surface touchscreen software for macOS, Windows, iPad, and Android. Control your stage monitors with QMix-UC for iPhone, iPod touch, and Android devices. Whether you're adjusting your monitors on stage, moving around the venue to fine-tune your mix, or using your mobile device as a second screen for your StudioLive 32SC digital console, remotely controlling your mix from anywhere is now effortless.

The digital mixing console designed for recording music.
With 128 recording channels (64 x 64) via USB, you can record every input and bus of your StudioLive 32SC for an optimal recording setup. Each channel can independently access its analog input or dedicated digital return from your computer. Ten Fat Channel plug-in models, including vintage EQs and classic compressors, are included and can be used directly on your mixing console, as well as in Studio One. If you want even more signal processing options, PreSonus offers four Fat Channel plug-in collections with 15 additional models. Fat Channel plug-ins can be inserted on every input and output bus, giving you complete studio-quality processing during mixing and recording.

Includes the Studio Magic suite of plug-ins.
This suite of plug-ins enriches Studio One with a multitude of brand-new virtual instruments and effects. Selected from the biggest names in the industry, each plug-in adds a unique and practical touch to your tracks. Far from being mere gimmicks, they are truly powerful tools you can rely on for countless mixes.

Features
* Equipped with the new PreSonus FLEX dual-core DSP processor, it offers the highest processing power in its class.
40-channel digital mixing console with 17 touch-sensitive motorized faders
* 26 mixed-gender buses
* 286 simultaneous processors
* Fat Channel Compressor and state-space modeling plug-in equalizers available on each input channel and output bus
FLEX FX multi-effects processor with 4 slots to load legendary reverb and delay emulations, and 4 dedicated effects buses.
128-channel (64x64) recording via USB
* Built-in multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
Remotely control all mixing functions from your computer, iPad or Android tablet with UC Surface.
Capture 3.0 multitrack software included
* Advanced integration with Studio One (Studio One Artist included)

Specifications
Microphone preamp
Input type: XLR female, balanced
Main output frequency response (at unity gain): 20-20 kHz, ±0.5 dBu
Input impedance: 1 kΩ
Common mode rejection ratio (1 kHz at unity gain): 65 dB
Gain control range (+/- 1 dB): 0 dB to +60 dB
Maximum input level (unity gain): +12 dBu
Phantom power (+/-2 V DC): 48 V DC, switchable per channel

Line entries
Grade: 1/4" TRS female, balanced
Main output frequency response (at unity gain): 20-20 kHz, 0.5 dBu
Input impedance: 10 kΩ
Maximum input level: +18 dBu

Tape Inputs
Quality: RCA female, unbalanced (stereo pair)
Maximum input level: +12 dBu, ±0.5 dBu

XLR Outputs
Quality: XLR male, balanced
Maximum output level: +24 dBu, ±0.5 dBu
Output impedance: 100 Ω

Line breaks
Grade: 1/4" TRS female, balanced
Maximum output level: +18 dBu, +/-0.5 dBu
Output impedance: 100 Ω

Tape Outputs
Quality: RCA female, unbalanced (stereo pair)
Maximum output level: +18 dBu, +/-0.5 dBu
Output impedance: 100 Ω

Headphone output
Connector: 6.35 mm (1/4") female TRS, active stereo
Maximum output power: 100 mW/channel into a 60 Ω load
Frequency response: 20 Hz - 20 kHz (+/-0.5 dB)
Signal-to-noise ratio: 96 dB, 1 kHz, maximum gain, 20 Hz bandwidth, unweighted

Digital Audio and Control
ADC dynamic range: 115 dB (A-weighted, 48 kHz)
Digital-to-analog converter dynamic range: 115 dB (A-weighted, 48 kHz)
USB recording port: USB 2.0, type B
AES/EBU output: Male XLR
Network control port: RJ-45
AVB audio network port: Lockable XLR Ethernet
Internal processing: 32-bit, floating point
Sampling frequency: 48 kHz, 44.1 kHz
Bit depth A/D/A: 24
Reference level for 0 dBFS: +18 dBu
Total system latency: 1.9 ms (local routing, analog input - analog output, all active processing)

Energy / Environment
Connector: IEC
Input voltage range: 90 to 230 V AC (+/-10%)
Power consumption (continuous): 85 W
Recommended ambient operating temperature: 0°C to 40°C / 32°F to 104°F

Physics
Dimensions: 22.97 in x 17.59 in x 6.51 in / 58.35 cm x 44.67 cm x 16.54 cm
Weight: 23.15 lbs / 10.5 kg

This item pairs well with the Presonus NSB 16.8 16x8 AVB-Networked Stage Box that is also featured on Gear Hunter!
