Gear Hunter

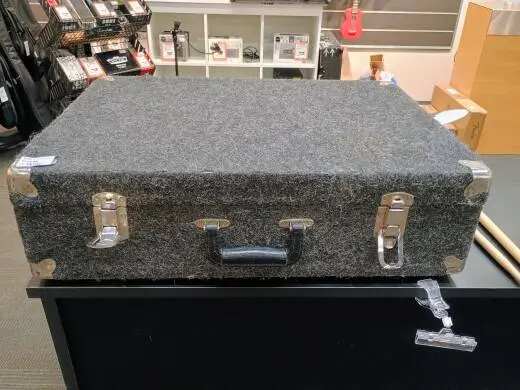

includes funky case to keep this museum piece safe.

NUMBER OF PADS:
Integrated Pads: 8

MEMORY CAPACITY:
Patches: 32
Patch Chains: 1

SOUND SOURCE:
Internal Sound Source: 39 Sounds
Dynamic Range: 16 bit
Maximum Polyphony 9 (Most Recent Given Priority)

PAD PARAMETERS:
(Sound Parameters)
Instrument Assign: OFF / 1 - 117
Pitch: + 1 Octave (100 cent units)
Decay: - 30 to + 30
Velocity Filter: 1 - 10
Pan: L1 - L6 / Ctr / R1 - R6
Velocity Filter: 1 - 10
Pan: L1 - L6 / Ctr / R1 - R6
Velocity Curve: 1 - 5
Individual Pad Level: 1 - 20
(MIDI Parameters)
MIDI Channel: OFF / 1 - 16
Note Number: 0 - 127
Gate Time: 0.1 - 4.0 sec.
Velocity Curve: 1 - 6
Velocity Sensitivity: 1 - 16
Program Change: OFF / 1 - 128

DISPLAY:
Patch Display (7-Segment LED x 3)

INDICATORS:
Pad Indicators (LED x 8)
Parameter Indicators (LED x 8)

CONTROL SECTION (Front Panel):
VOLUME Button
COPY Button
SOUND Button
MIDI Button
ALL / ENTER Button
EDIT Button
PATCH CHAIN Button
VALUE Button
PATCH / LEVEL Button

CONTROL SECTION (Rear Panel):
Power Switch

OUTPUT JACKS:
Stereo Out Jacks (L (MONO) / R)
Headphone Jack (Stereo Mini Jack)

INPUT JACKS:
Stereo In Jack (Stereo Mini Jack)

CONNECTORS:
MIDI Connectors (IN / OUT)
External Pedal Jack 1
External Pedal Jack 2
Patch Shift Jack
AC Adaptor Jack

DIMENSIONS:
450 (W) x 350 (D) x 70 (H) mm
17 - 23 / 32 (W) x 13 - 25 / 32 (D) x 2 - 3 / 4 (H) inches

WEIGHT:
2.5kg / 5-1/2lbs

RATED POWER SUPPLY:
DC 9V

POWER CONSUMPTION:
220 mA
