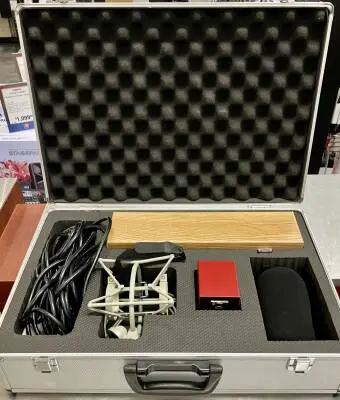

Accessories Included: “Retro” Shockmount, 5-Pin mic cable, 1x2 stereo splitter box, 30' Cable, Foam Filter and Padded wooden box.

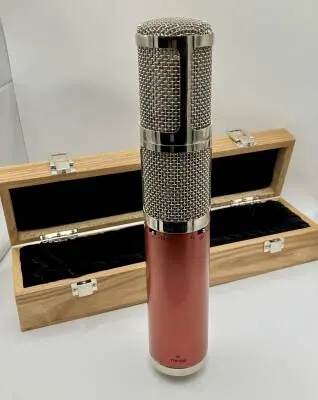

The CK-40 is Avantone’s most versatile and essential FET-style mic. A pair of 35mm center-terminated, tightly-stacked pressure gradient transducers allow accurate stereo imaging without producing proximity-based phase issues. Each capsule features completely independent controls; a high pass filter and -10db attenuation keep low-end interference to minimum at any sound level. The upper capsule/grill assembly can rotate up to 90 degrees off-axis with the lower capsule. Thanks to independent multi-pattern switching, XY, M-S and Blumlein stereo separation options are easily available and well-defined, without needing to touch the retro-style shock mount (included).

The Avantone CK-40 uses ultra-quiet Class-A FET circuitry, with well-balanced performance across a wide frequency range, and its stereo imaging and spatial possibilities are limited only by your imagination. The CK-40 is well-suited for recording anything you need to capture.

Specifications
The CK-40 operates on standard 48-volt phantom power. “Retro” Shockmount, 5-Pin mic cable, 1x2 stereo splitter box, 30' Cable, Foam Filter and Padded wooden box included.

Type: Stereo True Condenser Microphone
Polar Pattern(s): Cardioid, Omni, Figure-8 (x2)
Capsule: (2) Dual plate 35mm gold sputtered diaphragm / brass assembly
Frequency Response: 20-20,000 Hz +/- 3dB
Output Impedance: <=250 Ohms
Sensitivity: -40dB
S/N Ratio: 77dB re 1Pa
Maximum SPL: 147 dB (0.5% THD @1000Hz)
Equivalent Noise Level: 17dB (A weighted EC651)
Output Connector: Male XLR 5-pin with included breakout box and cable
High-Pass Switch: 80 Hz 6dB/octave
Attenuation Switch: -10dB
Power Requirement: Standard 48 Volt Phantom (x2) 3mA current consumption
Dimensions: 27.6mm X 49mm
Weight: .95 kgs / 2.1 lbs.
Finish: Polished Nickel trim / Metallic Cabernet Red Body
