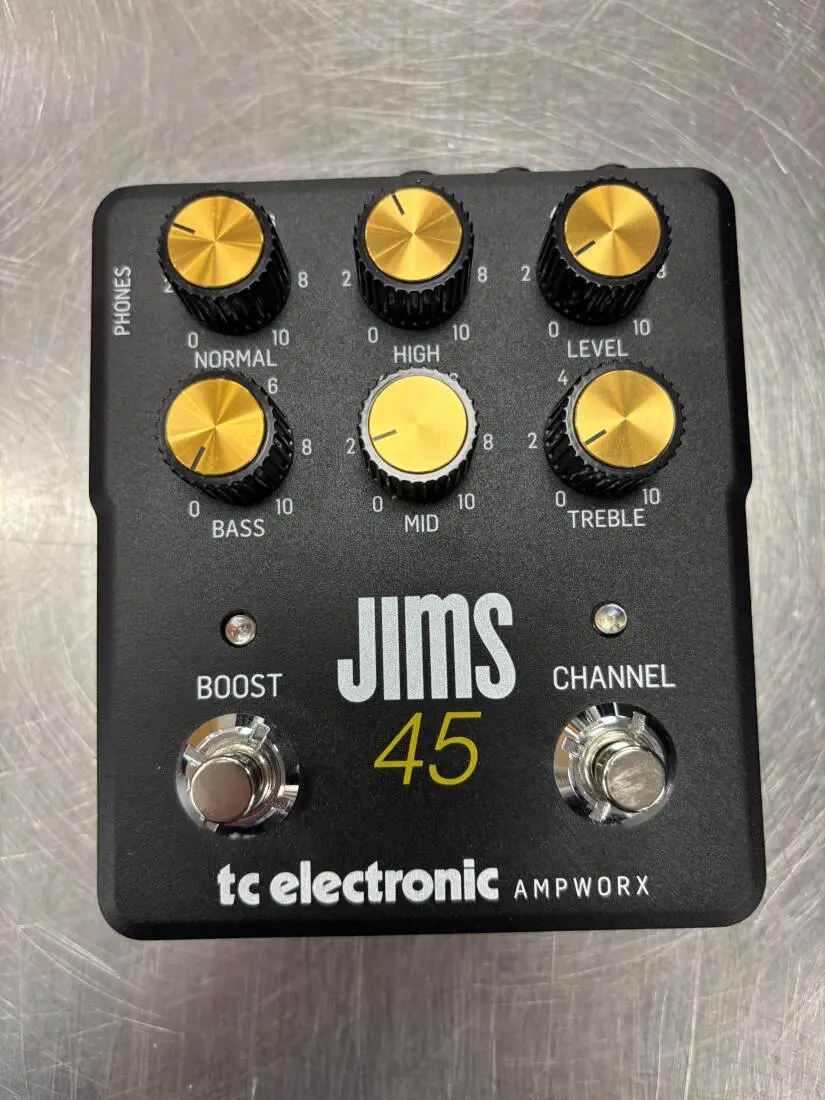

TC Electronics passionate and guitar-playing team of engineers set out to faithfully recreate the original amp with the painstaking accuracy and attention to detail that only guitar players with actual hands-on experience with the original amp can achieve.

At the heart of JIMS 45, the AMPWORX modeling technology works its magic, carefully recreating the classic guitar tone that's the sum of each and every component from the circuit of the original.

The result? The best and most precise digital amp modeling of this famous amp you have ever run your guitar through.

Features

* Guitar preamp pedal faithfully recreates the tone, touch and feel of a 1965 JTM45 tube amp
* Two channels with independent gain, volume and EQ controls for classic British rock and blues tones
* Independent gain controls for Normal and High inputs, just like the real amp with a jumper cable
* Integrated booster activates 5 dB boost at the kick of a footswitch with Pre/Post option on the back panel
* Pre boost dialed in to drive the amp model harder and add a distinct mid hump like a classic overdrive pedal
* Dedicated DI output, equipped with official Celestion 4x12 G12M Creamback cab sim IR, turns your pedalboard into a gig-ready rig direct to PA system or audio interface for recording
* Dedicated headphone output, equipped with official Celestion 4x12 G12M Creamback cab sim IR, for huge tube amp tones and practice sessions that wont disturb your neighbors
* Master presence, set it and forget it, control on the rear panel to tailor your preamp and compensate for darker or brighter rigs and rooms
* Optional bypass or always on channel change footswitch modes
* Groundbreaking TC AMPWORX modeling technology provides low latency, huge dynamic range and feels like the real deal
* Perfect pedalboard-friendly pedal platform takes drive pedals like a champ

Specifications

Input: 1 x 1/4" TS, unbalanced
Input impedance: 1 MΩ
Output: 1 x 1/4" TRS, balanced with ground sensing
Direct out (cab sim): 1 x 1/4" TRS, balanced with ground sensing
Output impedance: 1 kΩ
Headphones: 1 x 1/8" TRS, stereo
Headphones impedance range: 32 Ω
USB port: Mini-B USB connector
Front panel: NORMAL, HIGH, LEVEL, BASS, MID, TREBLE
Top panel: PRESENCE, BOOST switch (PRE / POST)
Footswitches: BOOST, CHANNEL (bypass)
Speaker and cab emulation impulse response: Celestion G12M Creamback, 4 x 12" closed cabinet
Bypass: Buffered bypass
