The PLX2 series is a range of premium quality, high-power amplifiers designed for the most demanding live performance uses. Built on the third generation of QSC PowerLight® technology, PLX2 amplifiers combine light weight, superlative audio quality and proven QSC reliability. With power ratings up to 3,600 watts, PLX2 amplifiers are capable of providing plenty of clean, undistorted output to the most power hungry speaker systems.

Features
* Very light weight
* Cooling design exhausts hot air out the front, keeping the rack cool. Flow-through heat sinks require no filters that could become clogged

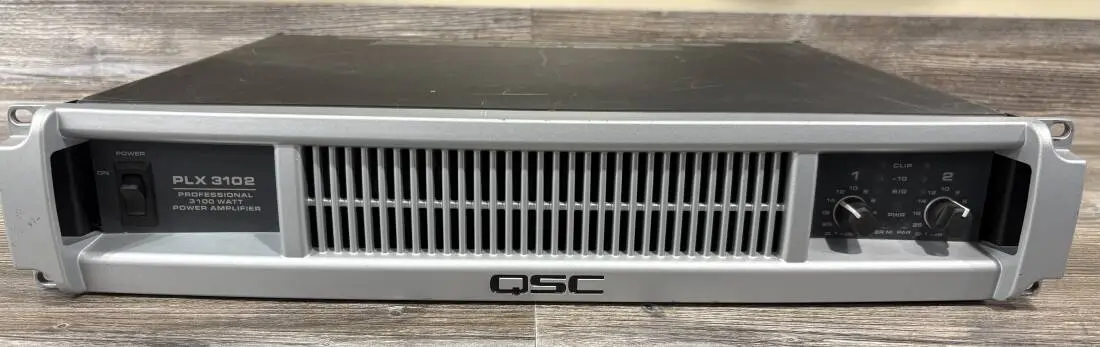

* Front panel LED power, clip, -10 dB, and signal present indicators for system monitoring and troubleshooting. 02 models also feature bridge and parallel mode LED indicators

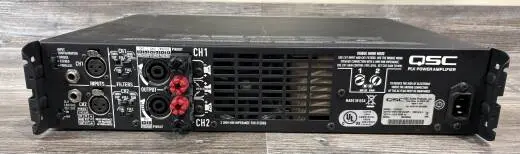

* Two Speakon® NL4 output connectors provide positive-locking speaker connections. Upper connector provides both channel outputs on all four poles (Channel 1: 1+, 1-; channel 2: 2+, 2-) for bridged mono or for single-cable connection to bi-amplified speakers
* 21-position front-panel gain controls for precise, repeatable amplifier adjustment
* Balanced XLR inputs with parallel TRS connectors accommodate all common input connectors and support loop-through operation
* Patented PowerLight power supply technology with other patents pending

Specifications
Power per Channel, Stereo Mode (both channels driven):
* 8Ω, FTC 20 Hz-20 kHz, 0.05% THD: 550W
* 8Ω, EIA 1 kHz, 0.1% THD: 600W
* 4Ω, FTC 20 Hz20 kHz, 0.05% THD: 900W
* 4Ω, EIA 1 kHz, 0.1% THD: 1000W
* 2Ω, EIA 1 kHz, 1% THD: 1550W
Rated Power, Bridge-Mono Mode:
* 8Ω20, Hz-20 kHz, 0.1% THD: 1900W
* 8Ω, EIA 1 kHz, 0.1% THD: 2100W
* 4Ω, EIA 1 kHz, 1% THD: 3100W

* Product Dimensions: 89 x 483 x 379 mm
* Net Weight: 9.5 / 21 lb
