EVID™ Series loudspeakers use innovative design and materials to provide premium-level performance from compact surface-mount speakers.

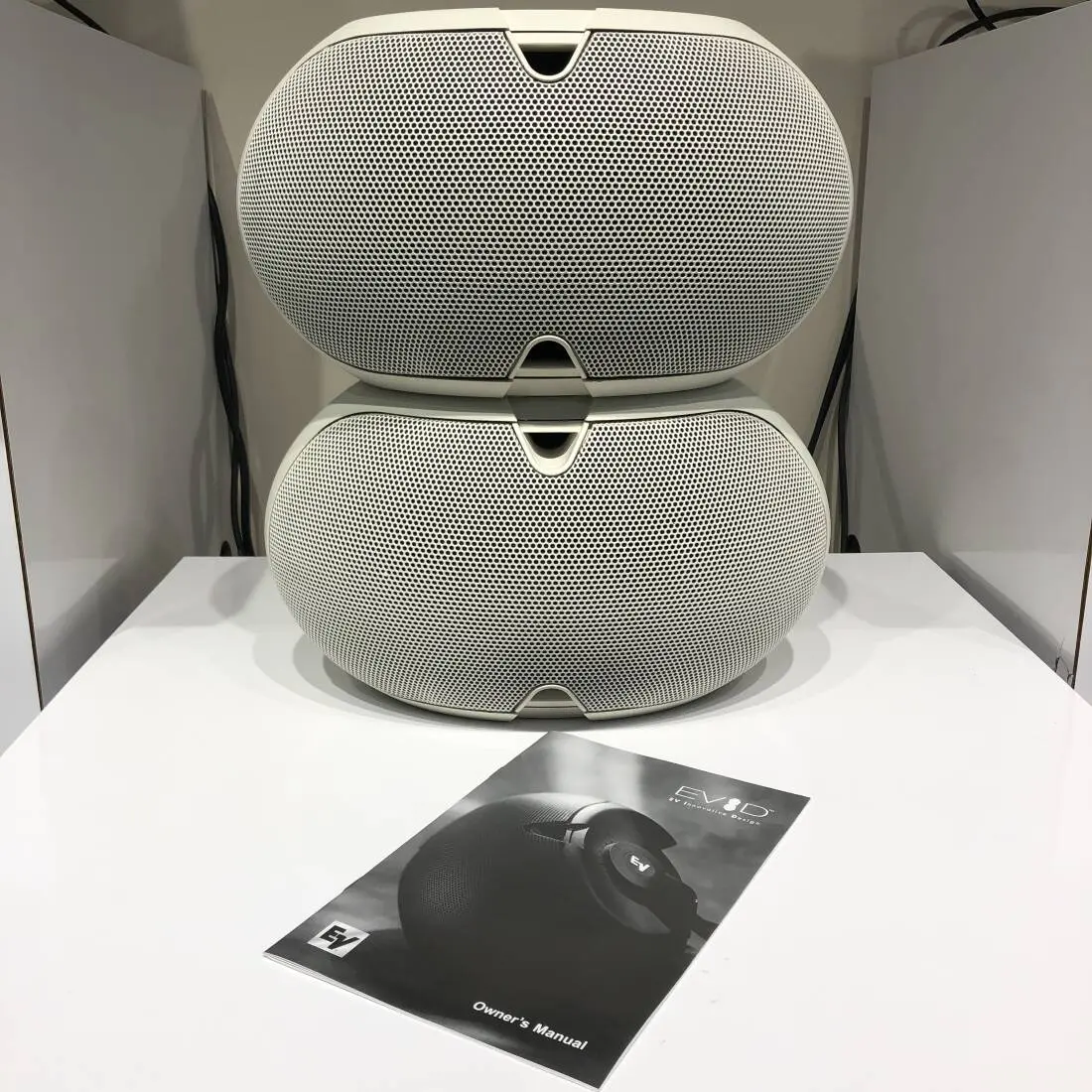

The compact EVID™ 4.2 delivers very full range sound from its dual 4-inch LF drivers and a 1-inch titanium tweeter with wave guide. It is able to deliver a 110-dB sound level over a wide coverage area. The EVID™ 4.2t includes a multi-tap transformer for 70V or 100V line distribution systems.

Features
* Compact full range
* Ideal for restaurants, bars, patios, and retail
* Vented LF enclosure
* 1-inch titanium diaphragm HF driver with neodymium magnetic structure
* Coherent Coverage Waveguide
* Full-bandwidth overload protection (LF and HF)
* Elliptical weather-resistant ABS enclosure
* Paintable black or white finish
* Magnetically shielded for video applications
* Strong-Arm Mount for easy, flexible aiming
* "T" version for 70 or 100 V distributed systems

Specifications
Frequency Response (-10 dB): 65Hz - 20kH
Power Handling: 200W Cont. Prog./400W Peak
Sensitivity: 89 dB, 1W/1m
Impedance: 8 ohms
Max SPL: 113 db
Horizontal Coverage: 120°
Vertical Coverage: 80°
Crossover Frequency: 2.2 kHz
LF Transducer: 2 x 4" (100 mm)
HF Transducer: 1" (25 mm)
Protection: Full System
Weather Resistance: Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splash proof ratings
Swing x Rotation: 100° x 90°
Terminals: Phoenix Connector
Enclosure Material: ABS (paintable)
"t" Version Wattage Taps: 70V/100V: 7.5W, 15W, 30W, 8 ohm bypass
Dimensions: 12.2 x 6.9 x 8.5" (234 x 127 x 165 mm)
Net Weight (each): 8.5 lbs (3.9 kg)
Included Accessories: SAM™, hex key
