Gear Hunter

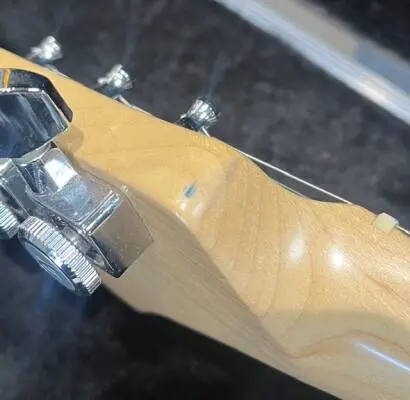

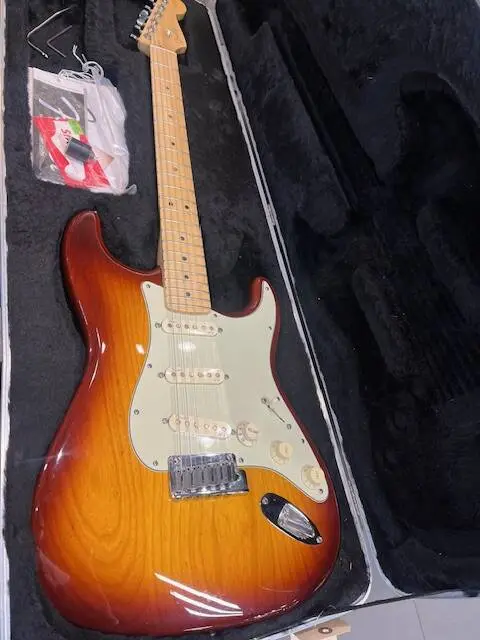

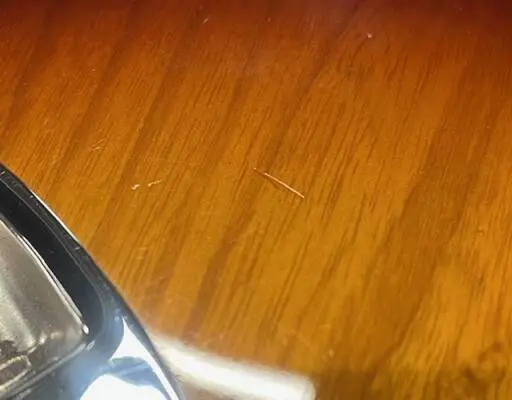

2011 Deluxe Strat. Slightly mismatched volume pot colour. Small ding near the input jack. Discoloured near low E tuner on the headstock. Please see photos.

Tone. Tradition. Innovation. Fender's new American Deluxe Stratocaster Ash gives you the distinct grain pattern and spanking tone of an ash body with all the cool specs of the new American Deluxe Stratocaster. New, compound radius fretboard allows exhilaratingly effortless string bending anywhere along the neck. New, N3 noiseless pickups supercharge your sound with improved Stratocaster tones for sparkling, bell-like chime with no hum and reconfigured S-1 switching offers even more knockout tonal options. Other features include staggered, locking tuners, two-point, synchronized, American Deluxe tremolo bridge with pop-in arm and beveled neck heel.

Web Instrument Type: Stratocaster
Series: American Deluxe Series
Model Name: American Deluxe Ash Stratocaster
Model Number: 011-9300-(Color #) and 011-9302-(Color #)
Colors:(731) Aged Cherry Burst, (752) Tobacco Sunburst,
(775) Wine Transparent, Urethane Finish

Body: Premium Ash
Neck: Maple, Modern C Shape, Satin Urethane Finish
Fingerboard: Rosewood (P/N 011-9300) or Maple (P/N 011-9302), 9.5 to 14 Compound Radius (241 mm to 355.6 mm)
No. of Frets: 22 Medium Jumbo Frets

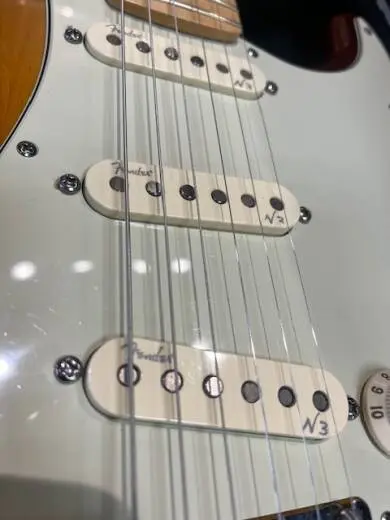

Pickups: 3 New, Noiseless N3 Strat Pickups (Neck/Middle/Bridge)

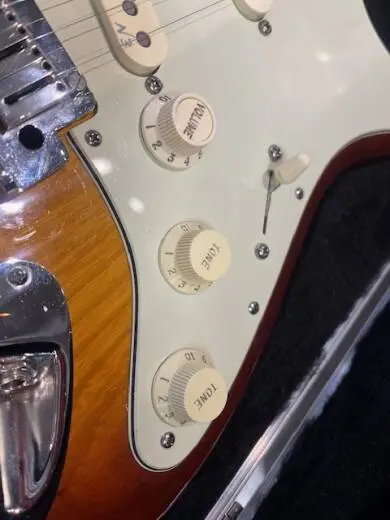

Controls: Master Volume (with S-1 Switch),
Tone 1. (Neck Pickup),
Tone 2. No-Load Tone Control (Middle and Bridge Pickups)
Pickup Switching: 5-Position Blade and 2-Position Push/Push S-1:
S-1 Switch Up (Off):
Position 1. Bridge Pickup
Position 2. Bridge and Middle Pickup in Parallel
Position 3. Middle Pickup
Position 4. Middle and Neck Pickup in Parallel
Position 5. Neck Pickup

S-1 Switch Down (On):
Position 1. Bridge, Middle and Neck Pickups in Series
Position 2. Bridge and Middle Pickup in Series
Position 3. Middle and Neck Pickup in Series
Position 4. Bridge and Neck Pickup Out-Of-Phase and in Series with Special Tone Capacitor
Position 5. Bridge and Middle Pickup in Series and Out-Of-Phase and in Parallel with Neck Pickup

Bridge: Fender Deluxe, 2-Point, Synchronized Tremolo with Pop in Arm

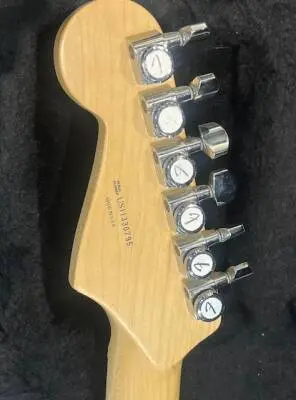

Machine Heads: Fender Deluxe Staggered, Cast/Sealed, Locking Tuning Machines
Hardware: Chrome
Pickguard: 3-Ply Mint Green on (731), (752), 3-Ply Black on (775)
Scale Length: 25.5 (648 mm)
Width at Nut: 1.6875 (43 mm)

Unique Features: Copper Infused, High Mass, 100% Metal Bridge Block, 3 Tall/3 Short, Staggered, Locking, Tuning Machines, S-1 Switching, Aged Plastic Parts, White Pearloid (Rosewood Fingerboard) or Black Pearloid (Maple Fingerboard) Dot Position Inlays, Highly Detailed Fret and Nut Work, 4-Bolt Neck Attachment with Micro-Tilt Adjustment, Bi-Flex Truss Rod System, Parchment Knobs and Pickup Covers, Rolled Fretboard Edges

Strings: Fender USA, Nickel Plated Steel,
Gauges: (.009, .011, .016, .024w, .032, .042)

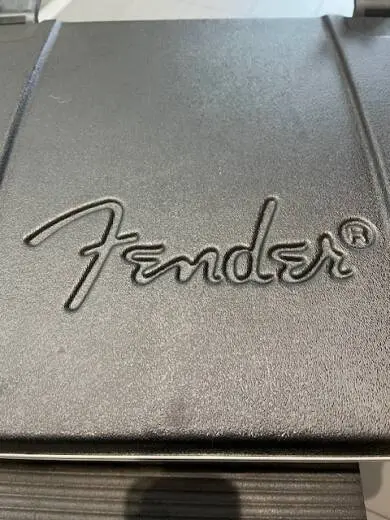

Case: High-Tech, Moulded Rectangular SKB Case
