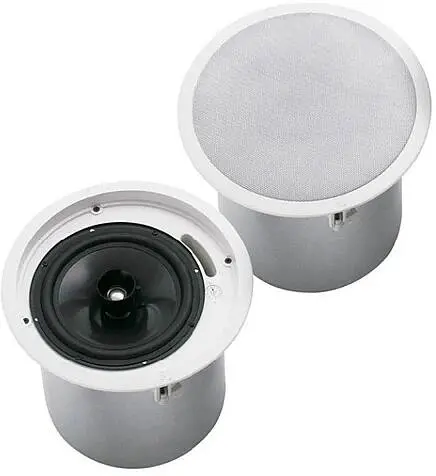

The EVID C8.2 EVID Series Two Way Pair of 300W 8" Coaxial Passive Ceiling Mount Speakers from Electro-Voice comes included with a tile bridge and mounting rig to make installation safe and simple.

The Electro-Voice ® EVID C8.2 loudspeaker system is a complete two-way ceiling loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker and internal line-matching transformer.

Features

Ported enclosure for extended bass response
Waveguide-coupled 1-inch titanium-coated tweeter
Full-bandwidth overload protection
Integrated transformer for 70 V, 100 V, or 8 Ω use
Front-panel mode/wattage selector
Safe, easy installation with included tile bridge and mounting ring
White semi-gloss perforated grille
Complete package, requires no additional accessories
The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C8.2 loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels.

The C8.2 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel. The rear enclosure, with fiberglass damping material, provides an optimum internal volume for extended low-frequency performance. A rear cover, with provisions for a junction box fitting, provides access to a 4- pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers.

The EVID C8.2D model features a 3-pin fire-safety rated input block. A tile bridge is included for safe suspension of the C8.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.

Specifications

Frequency Response (-10 dB): 50 Hz - 20 kHz
Coverage (Conical): 110°
Power Handling: 75 W Cont. / 300 W Peak
Sensitivity (SPL 1W/1m): 91 dB
Max Calculated SPL: 110 dB Cont. / 116 dB Peak
Impedance: 8 Ohms nominal (transformer bypass)
Network: Network and transducers protected, 12 dB/oct 2.6 kHz
LF Transducer: 8 in. (200 mm) Polypropylene cone
HF Transducer: 1 in (25 mm) Ti Mylar laminate
Transformer Taps: 70V: 1.88, 3.75, 7.5, 15 or 30w 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms
Connectors: C8.2: Phoenix type removable, with screw terminals and "loop-thru", accepts 12 ga wire C8.2D: Fire-safety rated input block, 3 terminal barrier strip accepts 12 ga wire
Enclosure Material: Baffle- UL 94V-O rated ABS Backcan-Zinc plated steel
Grille: Perforated powder coated steel with safety tether
Support Hardware: Tile bridge, backing plate support, cutout template, paint shield
Dim (H x Dia.): 10.0" x 10.6 (255mm x 270mm)
Cutout Size: 10.75" (272mm)
Net Weight (each): 11.0 lbs (5.0 kg)
Shipping Weight (pair): 24.0 lbs (11.0 kg)
Safety Agency Ratings: UL 1480 Safe for use in air handling spaces per UL 2043.
The EVID C8.2 features a four-point mounting system for easy installation.
