Accessories Included: Power adapter included

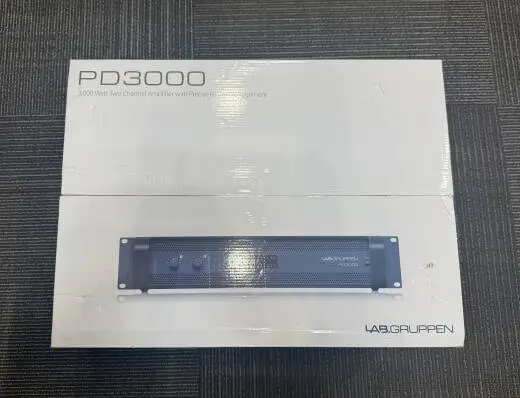

*** LIKE NEW IN BOX ***
- This is the 220V version for Asia/Pacific region

Specifications

General
Channels: 2
Peak total output: 3000 W (4 Ω)
Peak output voltage per channel: 115 V
Peak output current per channel: 32 A
Bridge mode: No
Output circuit type: Class-D
Dimensions (H x W x D): 93 x 483 x 326 mm (3.7 x 19 x 12.8")
Weight: 6.5 kg (14.3 lbs)

Peak Output Power
2 Ω: 1000 W per channel
4 Ω: 1500 W per channel
8 Ω: 800 W per channel

Audio Performance
THD+N (20 Hz - 20 kHz @ 1 W): < 0.1%
THD+N (@ 1kHz, 1 dB below clip): < 0.1%
Signal-to-noise: >90 dB
Channel separation (Crosstalk) @ 1 kHz: >75 dB
Frequency response: 10 Hz to 20 kHz, +0.5/ -1 dB
Input impedance: 10 kΩ unbalanced, 20 kΩ balanced
Distortion (1/8 rated power): < 0.1%

Controls
Front: Power switch, Gain controls (channels A and B)
Rear: Stereo / mono, switchable crossover (LF / full range / HF, switchable)
Crossover frequency: 100 Hz

Indicators
Power: RDY LEDs lit green
Limit (per channel): LIM LEDs lit red
Signal (per channel): -30 dB, -24 dB, -18 dB, -12 dB, -9 dB, -6 dB, -3 dB, LEDs lit green/orange
Thermal Warning (per channel): RDY LED blink orange
Thermal Warning (90%, PSU): Both RDY LEDs blink orange
Thermal fault (per channel): RDY LED blink red
Thermal fault (100%, PSU): Both RDY LEDs blink red
Fault (channel): RDY LED lit constantly red
Fault (device): Both RDY LEDs constantly lit red

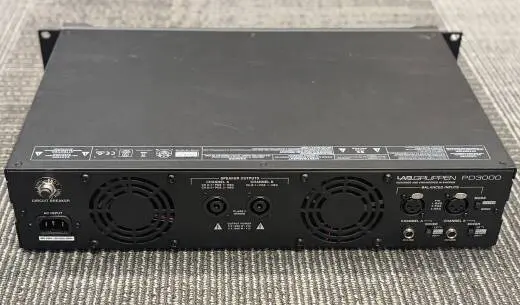

Connectors
Inputs / link: 2 x XLR, 2 x 1/4" TRS
Outputs: Neutrik speakON (2 x NLT4)
Power: Locking IEC appliance inlet, C14

Protection Features
Cooling: Two fans front-to-rear air flow, temperature controller speed
Amplifier protection: Thermal and DC protection, Rail sensing and peak current limiting.
Load protection: Controlled start and shutdown, behavior, DC-fault protection, Short-circuit protection

Power Supply
Voltage: 220 V, 50/60 Hz
Power consumption @ 4 ohms - 1050 W
