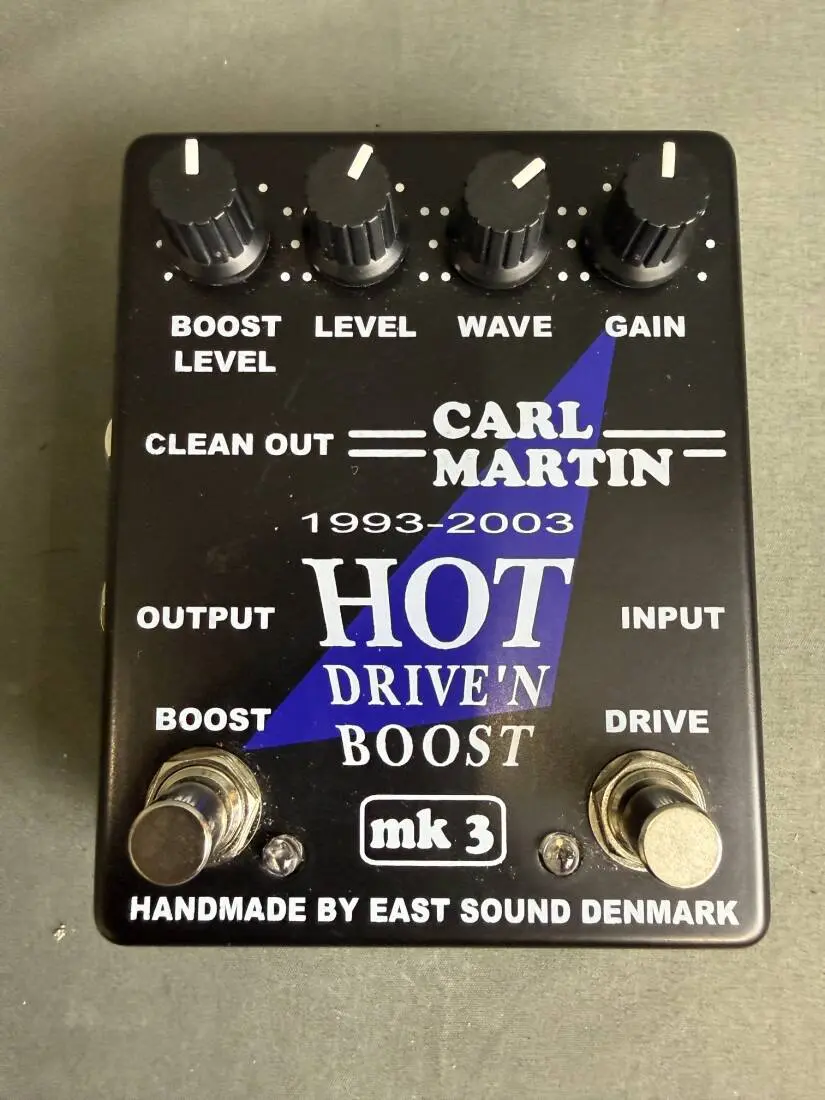

Carl Martin HOTDRIVENBOOSTMK3 Details
The Carl Martin's anniversary edition Hot Drive'n Boost MK3 delivers a pristine, amp-quality drive without altering your original tone-pure sonic integrity in a pedal.

The anniversary Hot Drive'n Boost MK3, featuring a complete new overdrive design that gives a even more authentic "tube" simulating overdrive than the original HDB, which is know to be one of the best.
The new HDB MK3 sound like a tweaked up quality tube amp, and on contrary nearly every other overdrive pedal does it not change the original tone, has no midrange pronouncement, no low end cut of, no high end cut of, all that gives a tone of a clear brilliant tube drive of it's own.
With the BOOST feature the Hot Drive'n Boost MK3 is a "TWO IN ONE" pedal. That allows you to get that extra "kick" (up to 20db) for solos to really stand out.
The Hot Drive'n Boost MK3 has a built in regulated (+-12V) power supply. This enables us to design circuitry of the highest quality with maximum headroom.
The low output impedance insures a lo noise connection, and gives improved working conditions for the guitar amp.

Power Requirements:

Comes with the innovative Carl Martin DC/DC circuitry that delivers internally +-12V regulated.
Power consumption: max. 60 mA
Power supply: 9 V DC (regulated), 80 mA minimum, 2.1 mm female plug, center negative (-)
Please Notice: It's not possible to use battery, only external power supply (not included)
Attention: Please Use DC Power Supply Only! Failure to do so may damage the unit and void the warranty.
Specifications:

Input: 1M Ohm
Output: 200 Ohm
S/N Ratio: 80 dB (clean out)
Gain Max: +60 dB
Boost Max: +20 dB
Dimensions: 120 (W) x 95 (D) x 56 (H) mm / 4.72" (W) x 3.74" (D) x 2.2" (H)
Weight: 625g / 1.38lbs
Embrace the future of overdrive with the Hot Drive'n Boost MK3, where cutting-edge technology and classic sound come together in harmony.
