The desired child- Omnitronic's popular TRM series has been expanded: the TRM-422 combines all the proven features of the previous models, but additionally offers functions that numerous fans had wished for. During the development of the mixer, the focus was on the demands and suggestions of the community.

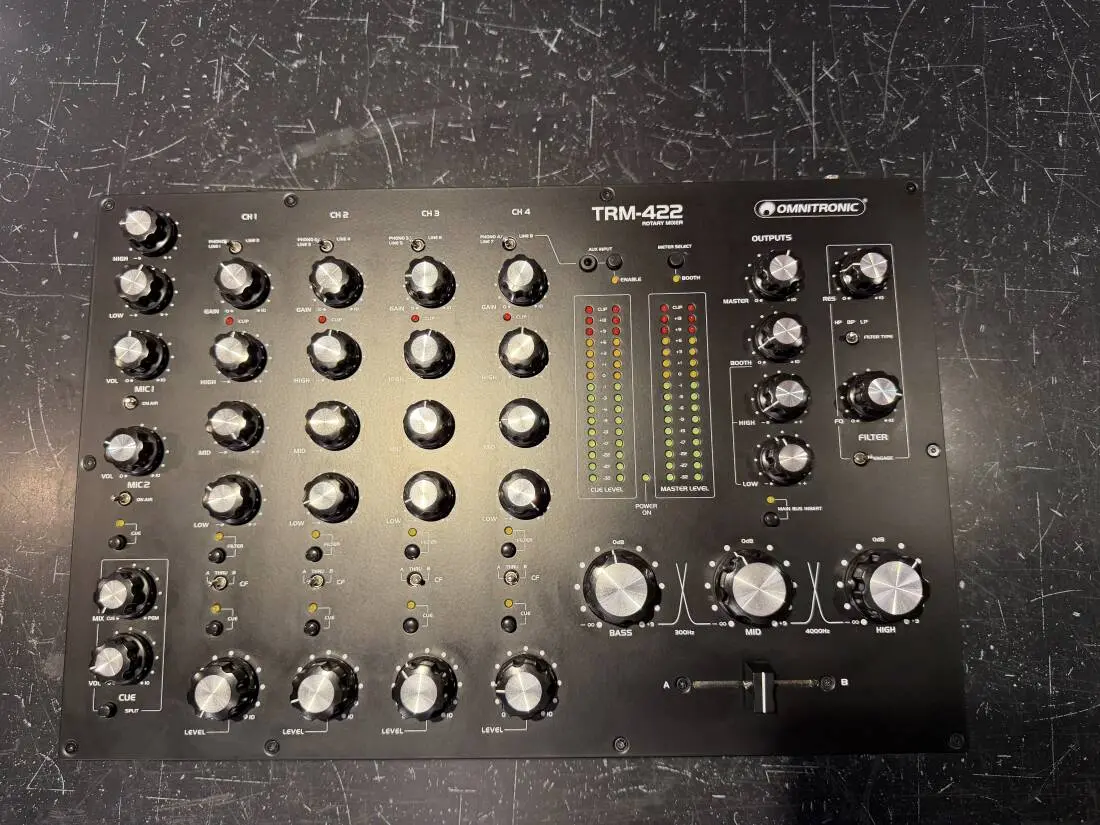

Full control- Each of the 4 input channels has 2 line inputs, one of which can become a phono input at the touch of a button. The channels are each equipped with a volume as well as a gain control. In addition to the master isolator (bass, mid & high), the DJ has the option to activate a filter with HPF, BPF, LPF, resonance and sweep controls in each of the 4 input channels.

The master output is available to the DJ in both XLR and RCA versions.

Effect ways- The use of external effect devices is possible through an FX-In and FX-Out via 6.3 mm jack. The mixer's master insert is also equipped with a send & return (unbalanced) path. This allows additional external effects to be looped into the mixer.

DVS integration- The mixer's timecode outputs allow easy integration of a DVS system (Digital Vinyl System) such as Traktor or Serato.

Monitor section- The booth output of the TRM-422 is provided with one XLR and one RCA connector. The signal of the booth output can be easily adjusted to the conditions in the DJ booth with the help of an EQ (High & Low).

Microphone inputs- The TRM-422 offers 2 microphone inputs. The first mic input gives the DJ the ability to modify the mic signal with EQ (high & low).

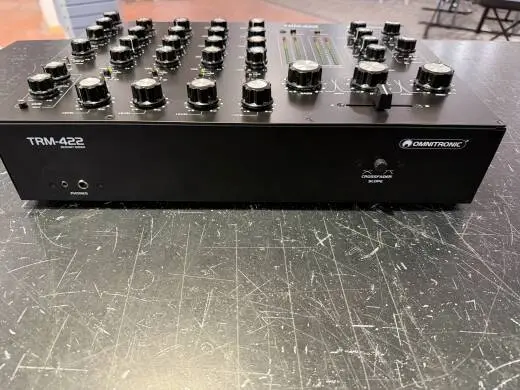

Backup source- With the help of the AUX input on the front panel, players such as smartphones, tablets or MP3 players can easily be connected via mini-jack (3.5 mm) and thus serve as a backup solution.

Activatable crossfader- If you don't want to do without a crossfader during your DJ set, you have the option to assign each of the 4 channels to the integrated crossfader. If the crossfader is not used, it can easily be switched off.

Set recording- The RCA record-out makes it easy to record your own DJ set.



Technical specifications

Power supply: 100-240 V AC, 50 / 60 Hz

Power consumption: 24 W

Protection class: Class I

Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)

Frequency range: Microphone 20 - 20000 Hz, Line 20 - 20000 Hz, Phono 40 - 18000 Hz

S / N ratio: >97,2 dB line, >91,7 dB Microphone

THD: Line <0,04 % at 1 kHz, Phono <0,13 % at 1 kHz, Microphone <0,008 % at 1 kHz

Gain: Microphone 44 dB, Line -16,5 dB to +8,5 dB Phono -48,5 dB to +23,5 dB

Isolators: Master Gain:- ? bis +9, Low / mid 300 Hz, 18db / oct , Butterworth, Mid / high 4000 Hz, 18db / oct , Butterworth

Crosstalk: >-68 dB

Control elements: Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, EQ controls

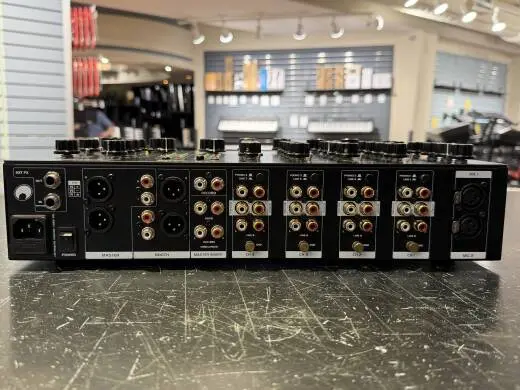

Connections

Input: 4 x line via stereo RCA

Input: 4 x line / phono via stereo RCA

Input: 2 x Microphone via 3-pin XLR

Output: 1 x headphones via 6.3 mm jack socket (stereo) mounting version

Output: 1 x headphones via 3.5 mm jack (stereo) mounting version

Output: 1 x rec. via stereo RCA

Output: 2 x booth via 3-pin XLR

Output: 1 x booth via stereo RCA

Output: 2 x master via 3-pin XLR

Output: 1 x master via stereo RCA

Output: 1 x AUX sends via 6.3 mm jack socket (stereo) mounting version

Output: 1 x AUX returns via 6.3 mm jack socket (stereo) mounting version



Channels:

Input chanel: 4 x stereo with Line-Line / Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, Crossfader selector switch,

Microphon chanal: 2 x mono via XLR, channel control via Rotary dial, ON AIR switch

Master output: 2 x stereo via XLR, channel control via Rotary

Booth output: 2 x stereo via XLR, channel control via Rotary

Rec. output: 1 x stereo via RCA

Headphones output: 1 x stereo via Plug 6,3mm / 3,5mm (Jack), channel control via Rotary dial, Cue mix split function,

Max. level: Output: +18 dBu

Material: Metal

Housing design: Desktop console housing

Dimensions: Width: 41 cm, Depth: 28.5 cm, Height: 10.5 cm

Weight: 5.74 kg
