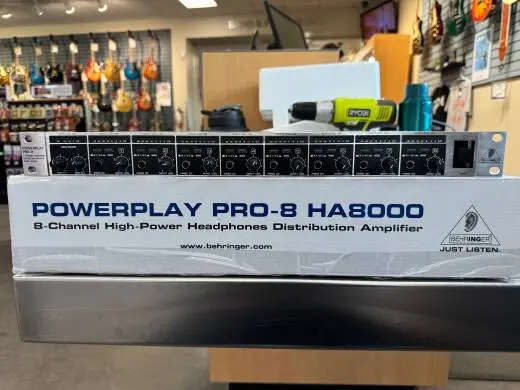

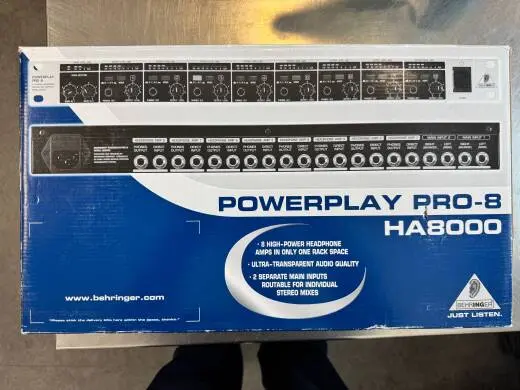

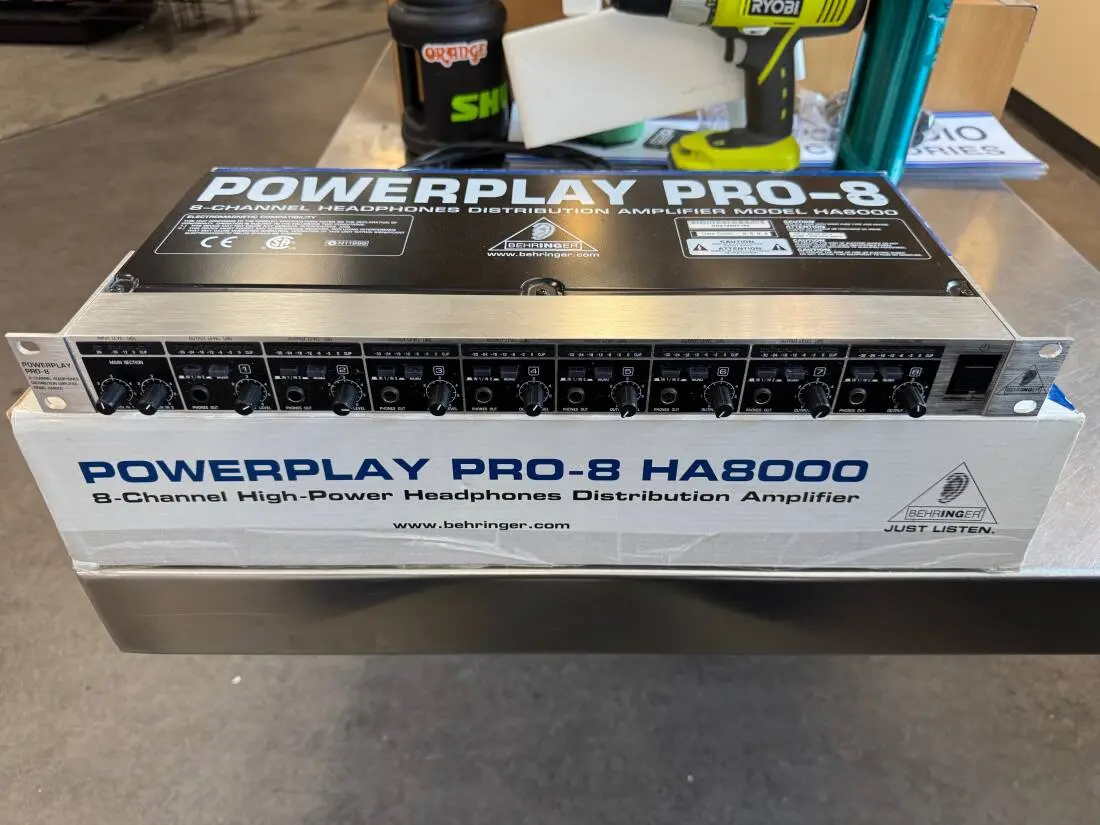

The 8-channel POWERPLAY PRO-8 HA8000 features superior performance, routing and mixing functions to accommodate even the most discerning set of ears. Two independent stereo Main Inputs, along with a dedicated Direct Input on each channel allows individual performers to obtain a more customized monitoring mix. When optimized mixes have to reach multiple listeners, each with their own specific requirements, the HA8000 delivers high-quality headphone mixing in a class all its own!

The HA8000 offers 8 high-power amplifiers that can drive loads down to 8 Ohms. Each amplifier section features its own 8-digit LED Output Level meter, Main In 1/Main In 2 select switch, a stereo or dual mono select switch, and a 1/4" Direct Input for integrating an additional sound source. The front panel gives you one 1/4" Phones Out jack per channel. The Main Section features a dedicated 5-segment LED Input meter, plus Main In 1 and Main In 2 Level dials.

On the back panel you'll find an additional 1/4" Phones Output per channel, allowing up to 16 pairs of headphones to listen to 8 separate mixes at once. The back panel also provides access to the HA8000's per-channel Direct Inputs and the Main 1 & 2 Inputs.

With 8 discrete channels and the ability to connect up to 16 sets of cans, this is one tool you will use every day.

Features:

• Professional, multi-purpose headphones amplifier system for stage and studio applications


• Highest sonic quality with virtually all types of headphones even at maximum volume


• 8 totally independent stereo high-power amplifier sections in one rack space


• 2 stereo Main inputs for two independent mixes, accessible from all 8 output channels


• 8 independent Direct inputs provide up to 8 individual stereo mixes


• Output level control and accurate 8-digit LED output meter per channel


• Mono/stereo switch per channel for more flexibility


• 1 front and 1 rear TRS phones connector per channel


• Direct input connector on each channel for easy connection of any sound source


• Parallel Main outputs allow cascading of several headphones amplifiers


• "Planet Earth" switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy savings

Specifications:

Number of Channels: 8

Input Connections:
2 x 1/4" TRS Phone (L/Mono, R) Main Input 1, Balanced
2 x 1/4" TRS Phone (L/Mono, R) Main Input 2, Balanced
8 x 1/4" Stereo Phone Direct Ins

Input Impedances
Main: 20 kOhms balanced / 10 kOhms unbalanced
Direct In: 15 kOhms

Line Max Input Level: + 16 dBu

CMMR: > 50 dB

Headphone Outputs:
8 x 1/4" TRS stereo on front panel
8 x 1/4" TRS stereo on back panel

Maximum Output Level:
+24 dBm @ 100 Ohms
+19 dBm @ 8 Ohms

Function Controls:
1 x Main In 1 Level Control Knob
1 x Main In 2 Level Control Knob
8 x Channel Output Level Control Knobs
8 x Main In 1/Main In 2 Channel Monitoring Switches
8 x Mono Channel Monitoring Switches

Frequency Response:
10 Hz - 150 kHz, +/-3 dB

THD + N: 0.007% typ. @ +4 dBu, 1 kHz, Gain 1

Noise: 22 Hz - 22 kHz > 80 dB @ 0 dBu

Dynamic Range: 103 dB (22 Hz to 22 kHz)

Display
Input Level: 5-digit LED:
Output Level: 8-digit LED: -30, -24, -18, -12, -6, -3, 0 dB, CLIP

Power Supply:
Autorange, 100-240 VAC, 50/60 Hz
Fuse: T1.25AL 250 V

Power Consumption: 35 W

Dimensions (H x W x D): 44 x 483 x 189mm (1.7 x 19 x 5.9")

Weight: 1.9 kg (4.2 lbs)
