This mic solution for piano makes it easy to achieve a high level of isolation on stage. It also provides clean and transparent stereo sound quality with realistic dynamics. It is a complete system, which includes a pair 4099 CORE mics for Loud SPL selected on sensitivity within +/-1.5 dB. It includes two versatile magnet mounts/gooseneck systems that provide stable and repeatable positioning.

From the piano to guitar; strings to woodwinds; brass to percussion, the 4099 Series sounds equally impressive on them all. This one microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument; just make sure you have the right type of clip to mount it correctly. The award-winning 4099 Series gives you a much more natural sound than any clip-on microphone or pickup. This instrument condenser microphone rejects unwanted noise and accurately captures the true voice of your acoustic instrument.

CORE 4099 Mic Features

* CORE by DPA technology inside
* Supercardioid instrument condenser microphone
* Handles high SPLs
* Superior gain-before-feedback
* Flexible and easy mounting
* Detachable cable and a versatile gooseneck extender
* Water-repellant nano-coating of the cover and housing
* Hermetic sealing of the sensitive amplifier at the core of the mic
* Dual gold plating of the diaphragm

The CORE 4099 comes with an XLR connector as an adapter. The microphone can easily be connected to a wireless system via an adapter from an extensive range of wireless adapters (sold separately). The 4099 CORE also features an enhanced shock mount design, providing excellent isolation from handling noise and rumble.

The mics can be easily unclipped and repositioned or moved to another instrument. The mounting system is designed to never blemish or scratch the finish of your instrument. The flexible design supports a wide variety of mounting and positioning possibilities.

These mics have a supercardioid polar pattern for high rejection and superior gain-before-feedback. The 4099 also retains a uniform off-axis frequency response to ensure a high-energy, clear live performance.

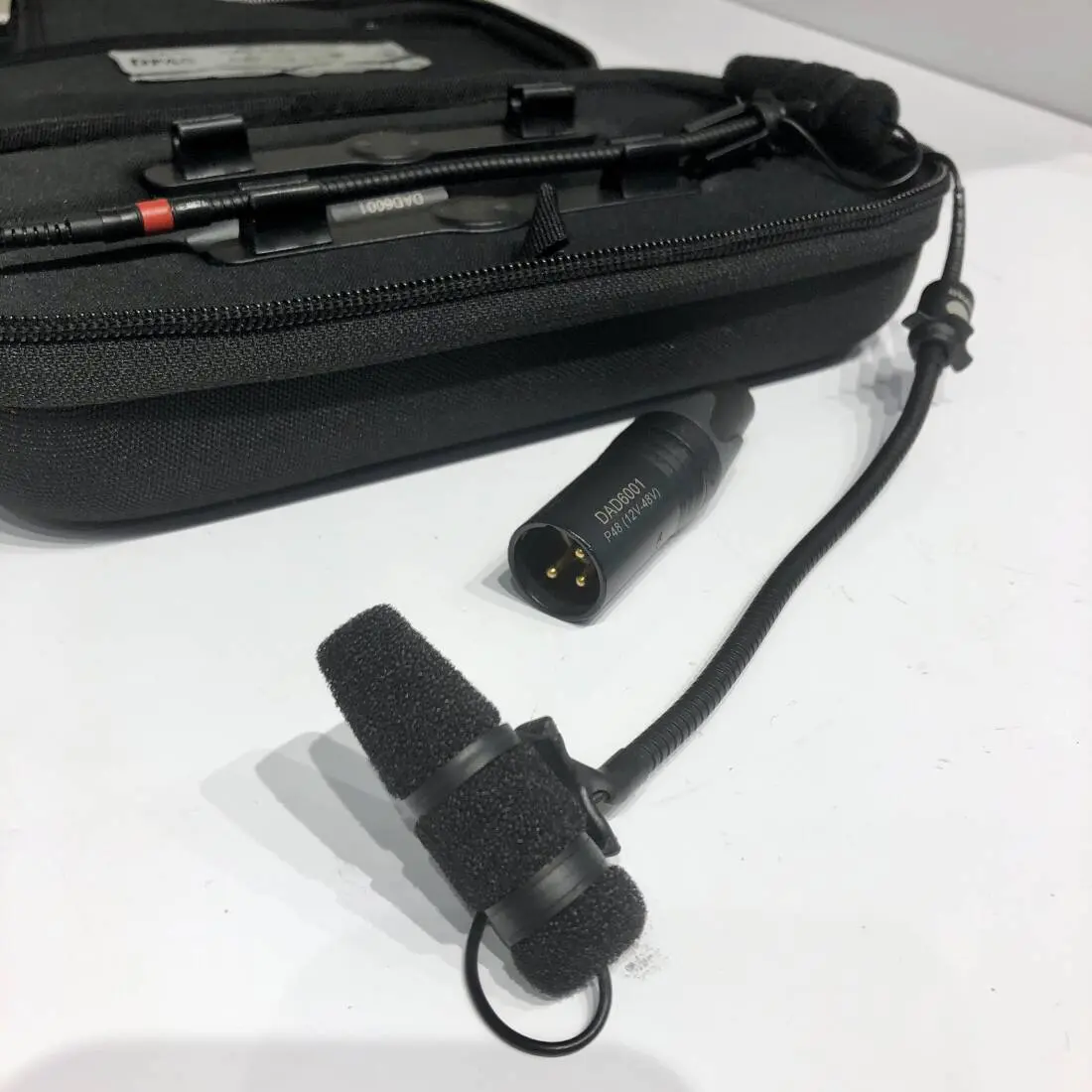

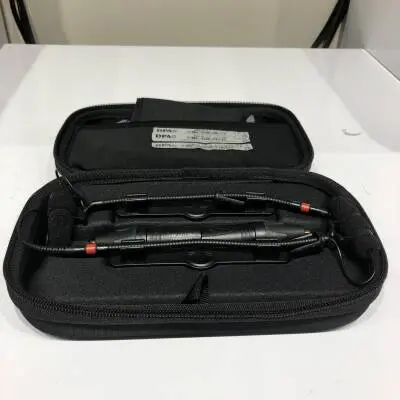

IN THE BOX:
- (2) 4099 CORE microphones for Loud SPL
- (2) magnetic mic clips for piano
- (2) XLR adapters
- (2) 1.6mm microdot extension cables, 1.8m (5.9ft) length

Specs

Directional pattern: Supercardioid

Principle of operation: Pressure gradient

Cartridge type: Pre-polarized condenser

Frequency response: 20 Hz - 20 kHz

Effective frequency range +/-2 dB, at 20 cm (7.9 in): 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz. Second order low-cut filter at 80 Hz with DAD4099-BC XLR Adapter

Sensitivity, nominal, +/-3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa

Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))

Distortion, THD < 1%: 128 dB SPL RMS, 131 dB SPL peak

Dynamic range: Typ. 108 dB

Max. SPL, THD 10%: 142 dB SPL peak

Rated output impedance:
From MicroDot: 30 - 40 Ω
From DAD4099-BC or DAD6001-BC Adapter: 100 Ω

Cable drive capability: Up to 300 m (984 ft)

Output balance principle: Signal balanced

Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz

Power supply (for full performance)
For wireless systems: Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA

Microphone length: 45 mm (1.8 in)
Cable length: 1.8 m (5.9 ft)
Gooseneck length: 140 mm (5.5 in)

Sensitivity selection tolerance (at 1 kHz): +/-1 dB
