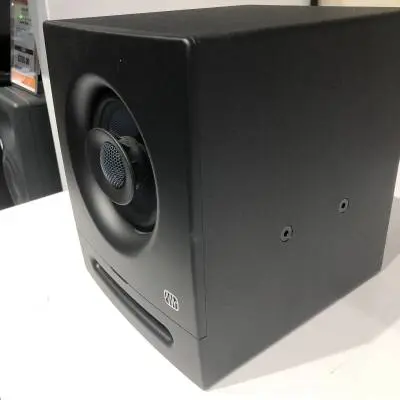

The Eris Pro 4 reference monitors employ a single point-source coaxial design for clear and accurate sound reproduction. This design provides superior phase alignment between components and delivers a wide sweet spot, precise stereo imaging, and symmetrical dispersion patterns - unique advantages for Dolby Atmos immersive rooms as well as stereo mix environments.

The Eris Pro 4 also delivers finely detailed transient response, and stunning dynamics that create a natural and less fatiguing listening experience. A 1-inch ultra-low mass, silk-dome tweeter ensures snappy, accurate transient reproduction, while a 4.5-inch woven-composite woofer offers tight, clear bass, with plenty of punch and no flab. A ported enclosure and 80 Watts of power allows the Eris Pro 4 to reach down to 55 Hz.

Acoustic tuning controls let you configure the Eris Pro 4 for your room and three-way Acoustic Space tuning can compensate for the effects of speaker placement against a wall or in a corner.

Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You'll have no problem hooking your Eris speakers up to virtually anything. Lastly, provisions for wall and ceiling mounts make it easy to integrate Eris Pro 4 monitors into any stereo or multi-channel system.

Features

* Single point-source coaxial design for wider sweet spot and better phase alignment
* 4.5" woven composite low-frequency driver
* 1", ultra-low mass, silk-dome, high frequency driver
* Crossover Frequency, 3.4 kHz
* 80W, Class AB amplification
* 55 Hz to 20 kHz frequency response
* 99 dB Peak SPL (@ 1 meter)
* Acoustic Space (flat, -2, -4 dB)
* High Frequency (+6 dB, center 10 kHz, continuously variable)
* Mid Frequency (+6 dB, center 1 kHz, continuously variable)
* Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
* XLR and 1/4" TRS balanced rear inputs
* RCA unbalanced rear-panel input
* Provisions for wall and ceiling mounting (mounts sold separately)
* RF interference
* Output-current limiting
* Over-temperature
* Turn-on/off transient
* Subsonic filter
* Power Saver mode (engages after 40 minutes)

Specifications

Electronics
VOLTAGE: 120V
WATTAGE: 80 Watts
INPUT IMPEDANCE: 10 kΩ

Performance
PEAK SPL: 99 dB (@ 1 meter)

Speakers
CROSSOVER FREQUENCY: 3.4 kHz

Hardware
CABINET MATERIAL: Vinyl-Laminated, Medium-Density Fiberboard
AUDIO CONTROLS: Volume High Frequency (+6 dB, center 10 kHz, continuously variable) Mid Frequency (+6 dB, center 1 kHz, continuously variable)
AUDIO SWITCHES: Acoustic Space (Flat, -2 dB, -4 dB) Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
MONITOR INPUTS: 1- Balanced XLR, 1- Balanced 1/4" TRS, 1- Unbalanced RCA
POWER AMPLIFIER TYPE: Class AB

Protections
- RF interference
- Output-current limiting
- Over-temperature
- Turn-on/off transient
- Subsonic filter

Miscellaneous
POWER CABLE: IEC
