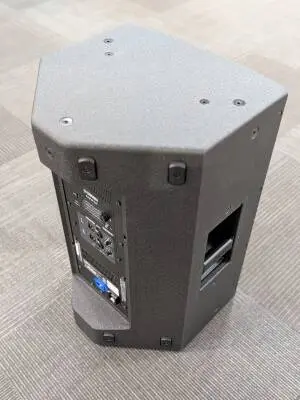

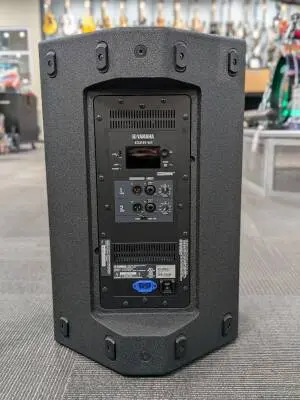

***All photos are of serial number YFFO01062 - Taken by the team at L&M Brampton - Everything included in purchase is shown in photos***

Socials, Sale Details, Giveaways, Lessons and Even More Deals!

Power and Performance. Integrated.

The DZR12 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 139dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

FEATURES

* 2-way powered loudspeaker with a 2" HF and a 12" LF
* Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today's sound engineering demands
* High power 2000W Class-D amplifier module
* 96kHz DSP and FIR filter for true high-resolution sound with super low latency
* Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
* Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
* D-Contour and highly reliable protection circuits
* Floor monitoring setting enables mirroring configuration
* Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
* Optional speaker cover (SPCVR-DZR12)
* Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement

SPECS

Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency Range: 39Hz - 20kHz
Coverage Area: H90ﾟ x V60ﾟ (Rotatable)
Components:
* LF: 12" cone, 3" voice coil, Neodymium magnet
* HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 1.8kHz (FIR-X)
Sampling Frequency Rate: 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum output level (1m; on axis): 139dB SPL *1
Power Rating:
* Dynamic: 2000W (LF:1000W, MF/HF: 1000W) *2
* Continuous: 1300W (LF: 920W, MF/HF: 380W)
Analog I/O:
* Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
* Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
* AC: IEC AC inlet x1 (V-Lock)
Amplifier class: Class-D
Cooling: Fan cooling, Variable speeds
Power consumption: 45W (Idle), 150W (1/8)
Handle: Aluminium die-cast, Side x2
Rigging: M10 x12
Dimensions, with rubber feet (W x H x D): 410 mm (16.1") x 646 mm (25.4") x 394 mm (15.5")
Net weight: 21.4kg (47.2lbs)
Enclosure Material, Finish, Colour: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle: 50 degree Symmetrical
Pole socket diameter: 35 mm x2 (0 degree or -7 degree)
