Preamp/DI pedal with advanced tone shaping

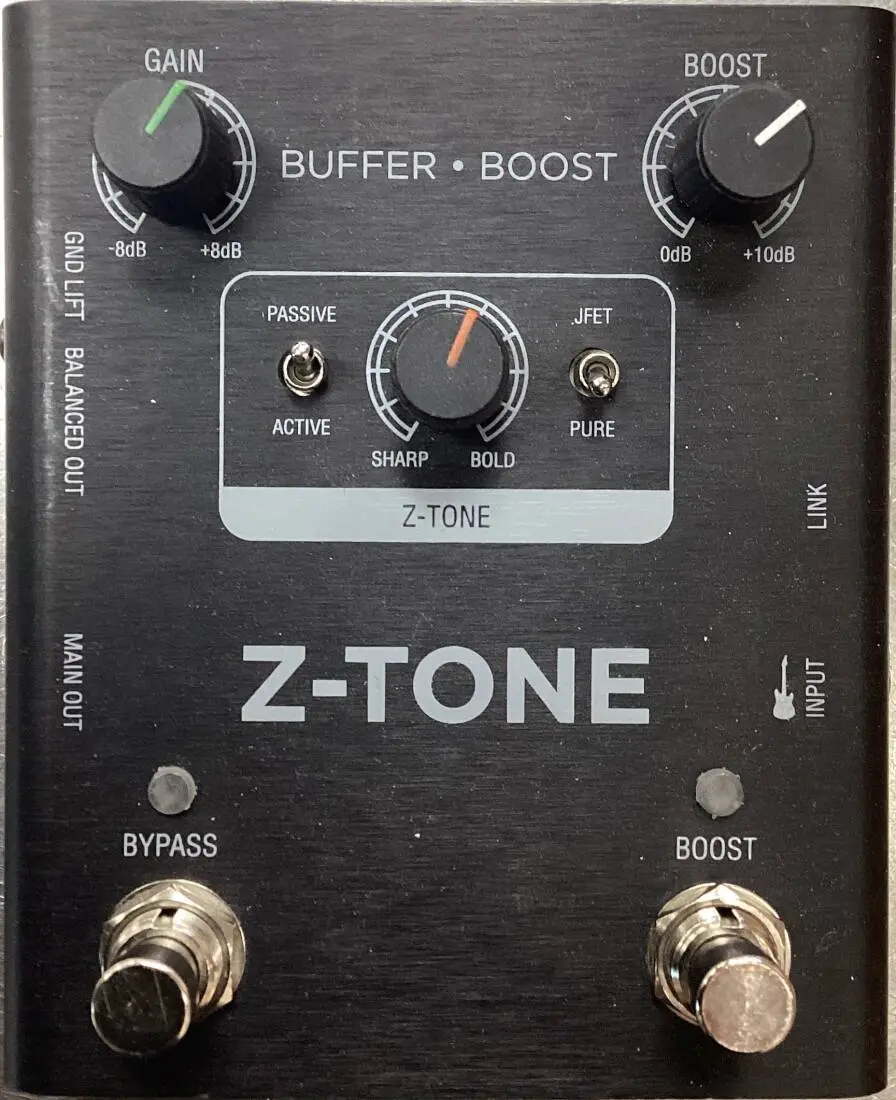

Guitar and bass pedalboards are all about exploring new tones and textures, creating a wide range of sound for your instrument. Z-TONE® Buffer Boost takes your live rig to a new level, letting you shape the sound of your instrument with the input circuits from IK Multimedia's award-winning AXE I/O interface.

Change the tone and feel of your guitar or bass, buffer your tone to survive even the biggest pedalboard, kick in the boost and supercharge all your existing gear with a powerful new front-end.

Features

* Active/Passive pickup selector
* PURE channel for transparent sound
* JFET channel adds warmth & harmonics
* Z-TONE variable impedance control creates a wide range of tones
* Buffers signal for longer pedalboards & cable runs
* Boost circuit adds volume & drive
* Alternate outs for mixers & PAs
* Ground lift switch eliminates buzz & hum
* Designed and made in Italy

Audio Specifications

* I/O Gain: Unitary, from 1/4" input JACK to both 1/4" and XLR outputs when GAIN is at 0dB and Z-TONE at the SHARP position.
* Gain Range: From -8dB to +8dB
* Boost range: From 0dB to +10dB
* Input impedance - Z-TONE set on PASSIVE mode: Variable from 1MΩ down to 2.2kΩ
* Input impedance - Z-TONE set on ACTIVE mode: Approx 20kΩ
* Output impedance, unbalanced out: 56Ω
* Output impedance, balanced out: 600Ω
* Max input level before clipping: +13dBm when powered by 48V phantom,+9dBm when powered by 9V battery
* Dynamic Range: better than 114dB(A) for both outputs, input gain at 0dB
* Total Harmonic Distortion, balanced output, 1kHz, +4dBm input: 0.0033% (PURE), 0.2% (JFET)
* Total Harmonic Distortion, unbalanced output, 1kHz, +4dBm input: 0.00055% (PURE), 0.2% (JFET)
* Frequency response: from 5Hz to 30kHz -1dB
* Phase deviation: 0° +/-10° from 20Hz to 20kHz

Power
* Phantom power: +48V phantom on Balanced output.
* Battery power: 9V
* External DC power: 9VDC, positive outside - not included
* Current consumption from P48 phantom power source: 6.5mA
