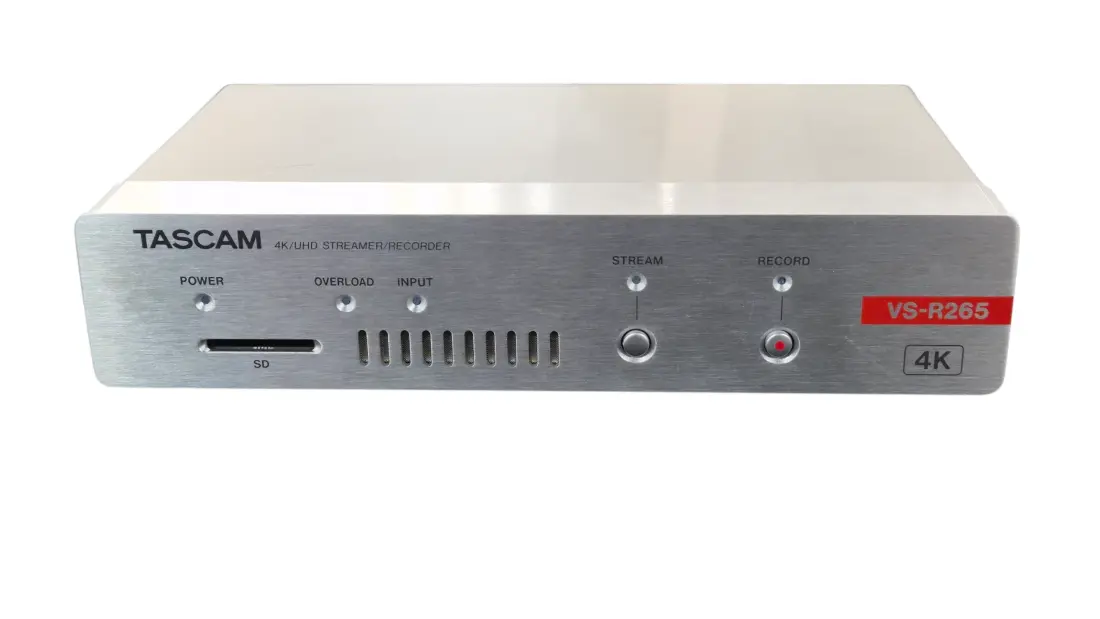

Live Streaming Hardware Encoder/Decoder with 4K support
The VS-R265 is a 4K live-streaming hardware encoder/decoder with H.264 and H.265 support. With its simple structure, this all-in-one video distribution device allows for simultaneous 4K/Full HD live streaming, backup recording, and decoding. Software encoding is the mainstream method of live streaming, and while it's easy to use and provides high-quality video, it can also cause unexpected trouble such as PCs overheating during long streaming sessions. Hardware encoders are powerful for long, stable live streams and recordings.

The VS-R265 4K live stream encoder addresses the growing demand for an external stand-alone encoder for 4K live streaming environments. The VS-R265 functions as a YouTube encoder and also provides live video streaming to popular Content Delivery Networks (CDNs) including to name a few. The half-rack size VS-R265 functions as a stand-alone unitno external computer is needed for recording or streaming.

Balanced analog Euroblock/Phoenix low voltage wire connectors and unbalanced analog 1/8" (3.5mm) mini-stereo jacks provide versatile audio I/O connections for a wide range commercial AV over IP environments, including corporate, education, house of worship, government, industrial and security.

Audio can be embedded from analog sources and de-embedded to drive networked audio playback for ceiling speakers, or digital audio within the HDMI I/O can be used. An integrated installed output level configuration function and reference level switching function (up to +20dBu) allows reliable and flexible system structuring when streaming video.

The VS-R265 is such a powerful partner that offers stability and convenience. Once users experience live streaming with a hardware encoder, they will never want to return to live streaming over software.

Features

* 4K/UHD AV over IP streaming media encoder and decoder for live video streaming
* Simultaneously records, encodes, streams, and decodes 4K/UHD (3840x2160p) video streams
* Functions as an external stand-alone encoder for live Full HD streaming environments
* YouTube and also provides live video streaming to popular Content Delivery Networks (CDNs) including to name a few
* Perfect for a wide range of 4K live streaming AV installations and environments
* Uses High Efficiency Video Coding (HEVC), a high efficiency coding scheme that delivers H.264 video quality via 4K content at half the bit rate
* Compatible with major streaming protocols such as RTMP, RTSP and HLS
* Unicast and multicast streaming support
* Multiple Simulcast and backup enabled by 3 RTMP Streams Simultaneously
* Offers RESTful API for integration into control systems in commercial AV installations
* Versatile audio I/O connections via balanced analog Euroblock low-voltage wire connectors and unbalanced analog 1/8" (3.5mm) mini-stereo jacks
* Audio can be embedded from analog sources and de-embedded to drive networked audio playback for ceiling speakers
* Provides digital audio embedded within the HDMI I/O
* Installed output level configuration function and reference level switching function (up to +20dBu) allows reliable and flexible system structuring
* Ability to record directly to USB connected media or SD cards via a front panel loading slot
* Recording to internal storage (17GB) is now supported (maximum capacity of each file recorded is up to 17GB)
* MP4 is added to the recording file format in addition to TS
* Recorded files can easily be uploaded to an FTP server automatically for creating back-up copies or repurposing to the web
* Support for continuous recording regardless of storage capacity. New function enables old files to be automatically deleted when the storage is full
* Web browser based remote control to configure unit settings
* Supports Gigabit Ethernet
* Support PoE+ for power supply in addition to the optional AC adapter (TASCAM PS-P1220E; sold separately)
* Compact half-rack size. Included surface rack mountable angles allow installation on different usage scenes and environments
* With the optional rack-mountable shelf AK-RS1, up to two VS-R units can be installed in a 19 inch rack space

Specifications

Encoding bitrates: 500k to 30M bps
Bit rate Control: Variable, Constant
Frequency response: 20Hz to 16.5kHz (+0.5/-0.5dB, JEITA)
Distortion (THD+N): 0.008% or less (Full scale -0.5 dB, JEITA)
S/N ratio: 94dB or higher (JEITA)
Dynamic range: 95dB or higher (JEITA)
Channel crosstalk: 90dB or higher (JEITA)
Balanced output: 113dB or higher (JEITA)
Unbalanced output: 109dB or higher (JEITA)
Power: PoE Plus Class 4, TASCAM PS-P1220E AC adapter (sold separately)
Power consumption: 12.2W
Dimensions: 214 x 44.5 x 136.1 mm (including protrusions)
Weight: 850g
Operating temperature range: 0 to 40 °C

Includes

- x2 Installation brackets
- x4 Euroblock plugs
- Cable band kit
- USB memory
- Quick Start guide
