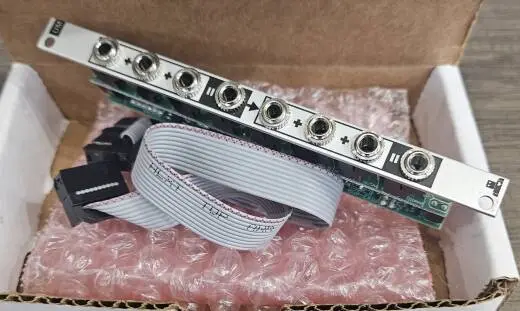

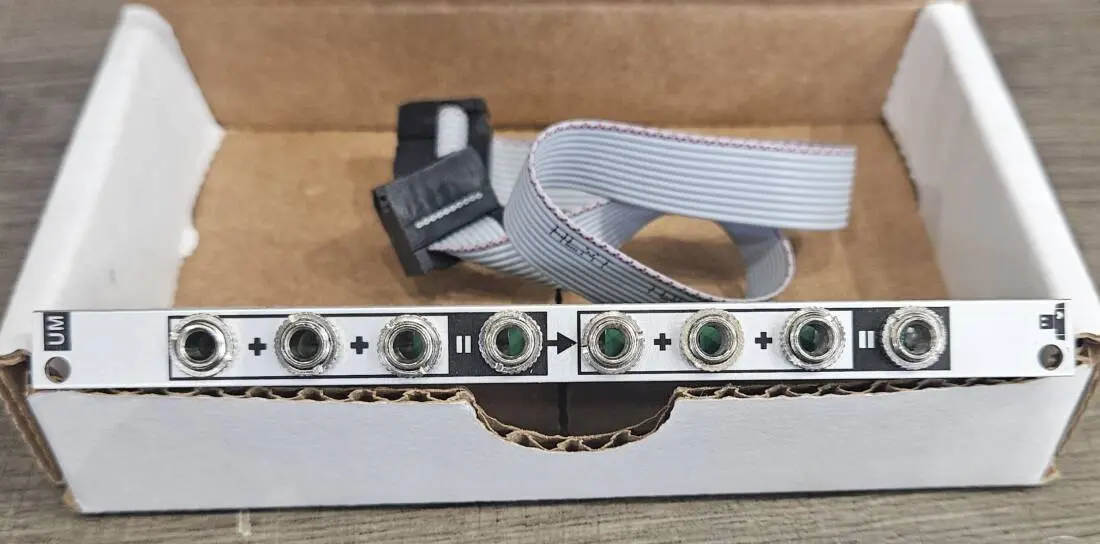

Intellijel - UMIX-3U
Sale Price: $99
Buy From Store
Quantity Available: 1
Condition: Used Excellent Condition
Customer responsible for any shipping charges.
This product may not come in original packaging.
Description
Width: 2hp
Power: 11mA @ +12V; 14mA @ -12V
Dual 3:1 / 6:1 unity gain mixer (for cv or audio) in 2HP
Features:
* Output of top mixer is normalled to the bottom mixer to give a 6:1 mix.
* Outputs are phase correct (e.g. the output audio is not inverted).
* The input signals are neither boosted nor attenuated (unity mixing). their resultant sum is the output.
e.g. if input 1: 2v, input 2: 4v, input 3: 3v
then output1: 9v (input1 + input2 + input3 = 2v + 4v + 3v = 9v).
NOTE: Version 2 of the Unity Mixer has two sets of jumpers on the main pcb. These allow the top and bottom sum to be set to -6dB attenuation instead of unity gain. This creates more headroom when summing higher amplitude sources like raw VCO signals.
