Hiwatt T20/10 MK III Head

Professional British valve tones to take you from the studio to the biggest stages. The Tube Series (our nod to the North American market...) are two-channel amps combining our classic Clean Hiwatt tones and Overdrive channel with 20 watts of EL84 power, FX loop, and true spring reverb. Our power scaling reduces output to 10 watts for power valve breakup at lower volumes. A perfect gig-ready pedal platform!

FEATURE OVERVIEW

— Portable awesome Hiwatt tone for use in the Studio or on Stage.
— Half your power, to drive the Tubes harder, to obtain pure, natural Hiwatt Overdrive with less volume.
— 2 x EL84 Output Tubes 2 x ECC83 + 1 x ECC82 Preamp Tubes for Classic Hiwatt Tone.
— Touch sensitive Cathode Biased ( Class A) Tube Amplification.
— Birch ply construction for Durability and sonic stability.
— British engineering for classic Hiwatt tone.

Specs

wattage: Switchable — 20W or 10W

channels: Normal, Overdrive

inputs: Normal/Overdrive (Channel Selector)

3.5mm AUX Input

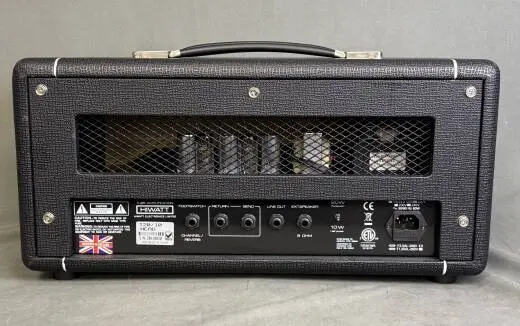

1/4" Effects Loop Return

1/4" Channel/Reverb Footswitch Input

outputs: 1/4" Extension Speaker, 1/4" Effect Loop Send, 1/4" Line Output

preamp valves: 2 x ECC83 (12AX7), 1 x ECC82 (12AU7)

output valves: 2 x EL84

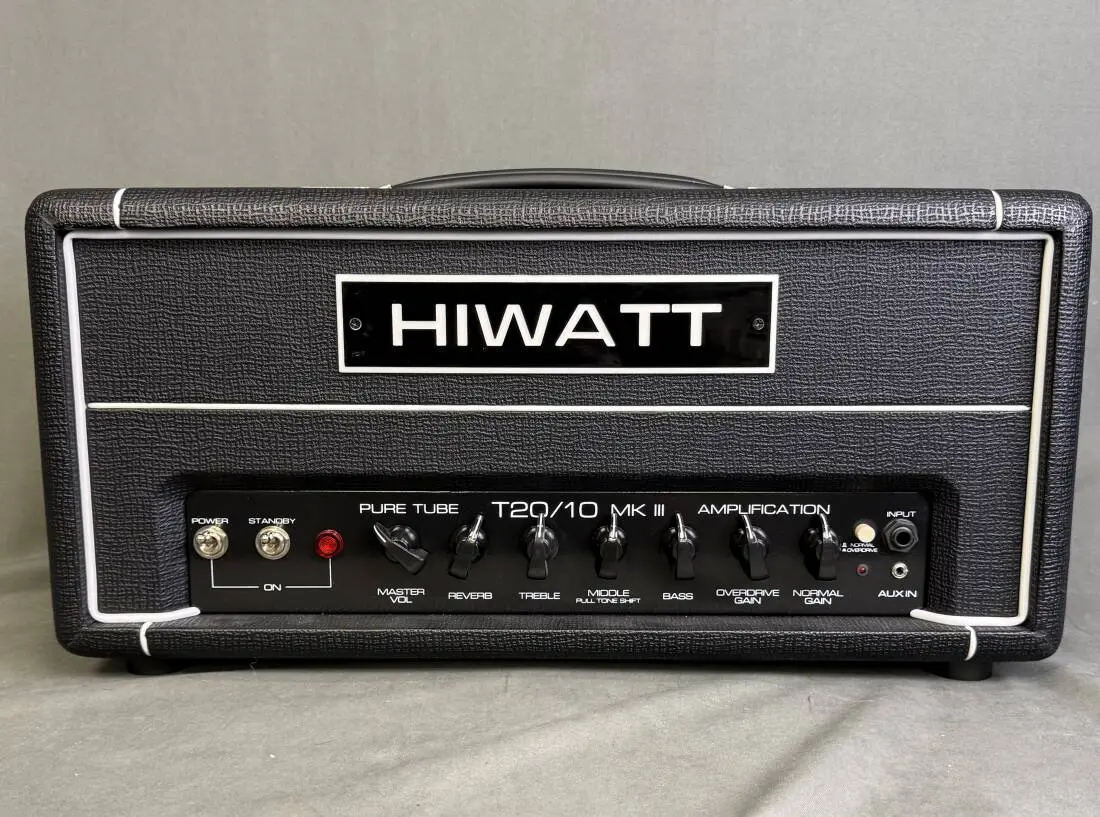

controls:

Master Volume

Reverb Level

3-Band EQ shared by both channels — Treble, Middle (Pull potentiometer for Tone Shift), Bass

Overdrive Gain

Normal Gain

Normal/Overdrive Channel Toggle

Standby — On/Off

Mains — On/Off

Built-in Effects Loop.

Built-in True-Spring Reverb.
