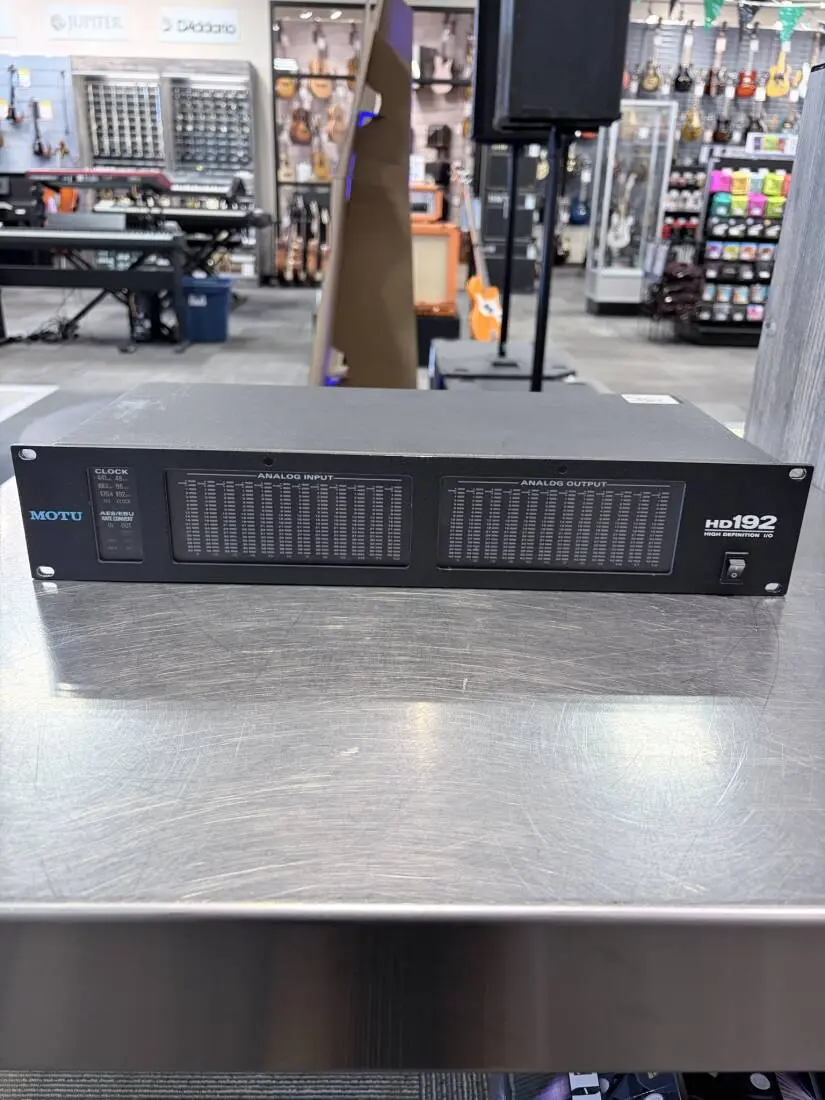

The MOTU HD192 high-definition 192-kHz audio interface is designed for those who demand the very best audio quality available.

Equipped with the latest generation 24-bit, enhanced multi-bit 128x oversampling 192-kHz converters, the HD192 achieves a remarkable A-weighted signal-to-noise ratio of 120 dB with balanced XLR connectors throughout. Ideal for surround applications, the HD192's 12 inputs and 12 outputs can support two simultaneous 5.1 mixes. And the HD192 is full of advanced features, like AES/EBU I/O with sample rate conversion both in and out.


Specifications

* Twelve channels of +4, balanced, 192-kHz 24-bit analog inputs and outputs using XLR jacks.
* AES/EBU digital I/O
* 19-segment LED meters on every input and output
* 16, 20 and 24-bit recording at 44.1, 48, 88.2, 96, 176.4 or 192-kHz
* Word clock in and out
* Dedicated word clock input for AES/EBU I/O
* AudioWire connector for PCI-424 audio card
* A-weighted dynamic range 120dB
* THD+N of 0.00056% (-106dB)
* R/CORE transformers for efficient, low-heat operation with virtually no magnetic interference or acoustic hum
* Chassis dimensions, excluding rack ears and front and back panel switches and connectors: 19 x 7 x 3.5 inches (48.26 x 17.78 x 8.89 cm). Switches and connectors extend up to 0.5 inch (1.27 cm) from front and back panels, adding 1 inch (2.54 cm) to depth. Fits standard 19 inch (48.26 cm) rack at 2U high.
