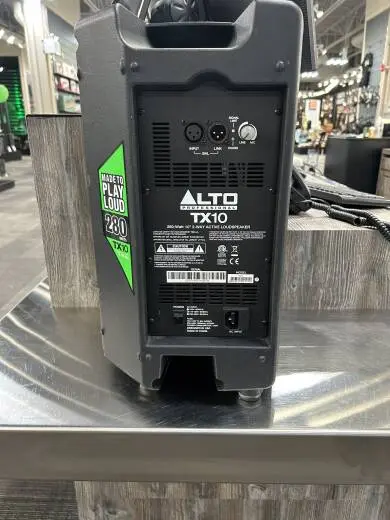

The Alto TX10 Active two-way loudspeaker comes equipped with efficient, bi-amped Class D amplification that pumps out a generous 280 Watts of peak power. An exacting electronic crossover ensures smooth frequency response from the 10" low-frequency driver and 1" high-frequency compression driver. Bass porting offers extended low-end response, while the steel grille adds extra protection.

Built to travel, the road-ready TX Series is both lightweight and portable. Trapezoid cabinet contouring makes either upright or wedge-monitor placement a snap. A pole-mount socket and a comfortable handle are conveniently built in. Create a custom setup using the Link output to chain multiple cabinets together. For the musician, DJ, or live-sound provider craving professional audio reproduction, The TX Series delivers impressive, dynamic sound night after night.

Applications

Small/Mid-sized PA systems
Gymnasiums, fitness centers, and dance studios

Houses of worship

Bars, restaurants, clubs

Mobile DJ systems

Special events, presentations, and weddings

Features:

• 280 Watts peak / 140 Watts continuous power


• Efficient Class-D power amp, bi-amplified


• 10" LF woofer with 1.5" voice coil


• 1 titanium diaphragm HF compression driver with 1" voice coil


• Balanced XLR Mic/Line Input and Link Output


• Precision electronic crossover


• Integrated analog limiter and overload protection circuitry


• Lightweight, portable design


• Integrated 36mm speaker pole socket


• Main or wedge monitor operation


• Designed in the USA

Specifications:

System Type: 2-way active ported speaker
LF Driver: 10" woofer, 1.5" voice call
HF Driver: 1" titanium diaphragm, 1" voice coil
Amplifier: Class D SMPS, 280 watts peak
Horn Coverage: 90 degree H x 45 degree V
Frequency Response (-3dB): 75 Hz 20 kHz
Crossover Frequency: 2.5 kHz
Max SPL: 116 dB at 1m
Connector: XLR Mic/Line Input & XLR Link output
External Controls: Volume control / Power ON with green LED / Clip Limiter with red LED
Electronic Protection: Thermal / Overload / Analog Limiter / Compressor
Power Supply: 110V-240V ~ 50/60Hz
Enclosure Construction: Injection-molded polypropylene enclosure, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
Mounting: 36mm standard pole mount
Dimensions: (HxWxD): 18.1 x 11.2 x 10.4 in / 460 x 285 x 265 mm
Net weight: 15.26 lbs / 6.92kg
