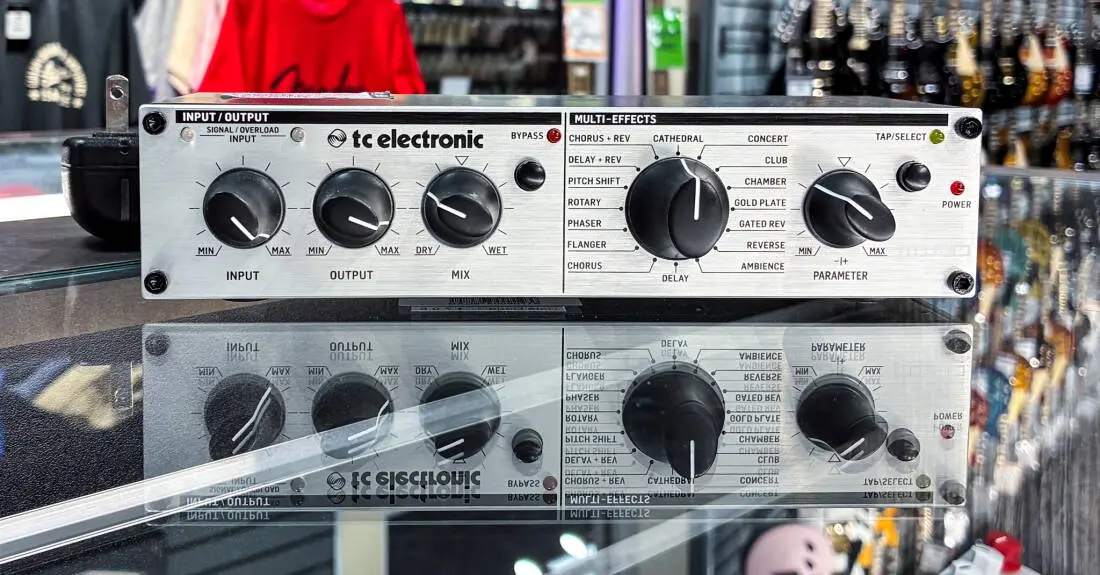

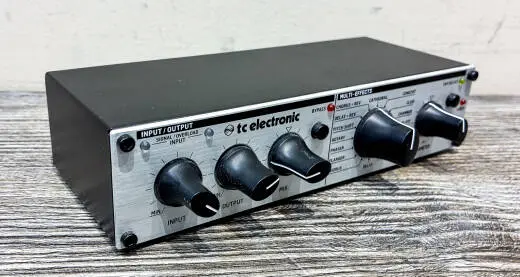

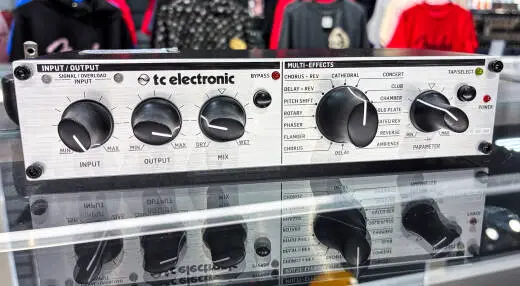

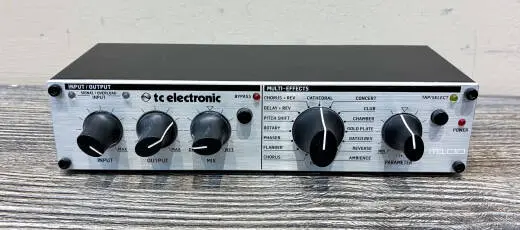

***All photos are of serial number S170600479CAH - Taken by the team at L&M Brampton - Everything included in purchase is shown in photos (Not Including Accessories Used to Showcase the Product - Stools, Stands, Lights & Other Display Accessories)***

Socials, Sale Details, Giveaways, Lessons and Even More Deals!

Stereo Multi-Effects Processor with Legendary TC Reverbs and Effects

If you want to add the digital magic that puts the perfect finishing touch on your live or studio sound, tap into the incredible M100. So easy-to-use, the M100 can instantly turn anyone into a digital FX expert!

16 Award-Winning FX Presets

An incredibly compact multi-effects processor, the M100 features 16 award-winning TC ELECTRONIC presets including studio-grade reverb, delay, chorus, flanger, phaser, rotary speaker, pitch shifter and a variety of stunning multi-effects.

An intuitive FX selector allows you to choose from the 16 single or multi-effects that suit your music, while the versatile Parameter and Tap/Select functions give you the ultimate control over a wide range of parameters.

Your Connection to Amazing Sound

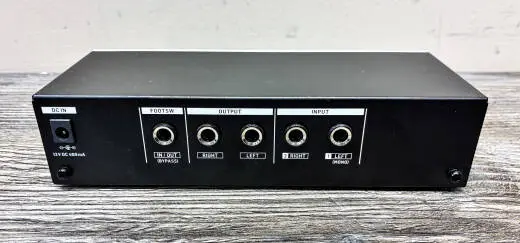

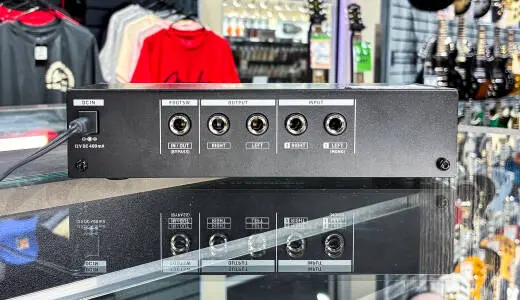

The M100 has two modes of operation - mono or stereo. While the input connectors accept both balanced and unbalanced 1⁄4" cables, the output features impedance-balanced 1⁄4" TRS connectors.

M100's stereo Input level control with LED level indication ensures precision adjustment for the optimal signal integrity.

Features:

• Stereo multi-effects processor for studio and stage applications


• 16 award-winning TC effects including reverb, delay, chorus, flanger, phaser, rotary speaker, pitch shifter and multi-effects


• Versatile Edit and Tap/Select functions to control a wide range of parameters


• Stereo Input Level control with LED level indication


• Dedicated Mix Balance and Output Level controls for perfect level adjustment


• High-resolution 24-bit AD/DA converters


• Additional footswitch connector for easy effects on/off control (sold separately)


• Designed and engineered in Denmark

Specifications:

Inputs
Type: 1/4" TS connectors, unbalanced
Impedance: approx. 7.5 kΩ

Output
Type: 1/4" TRS connectors, impedance balanced
Impedance: approx. 220 Ω
Max. output level: +10 dBu

In/Out
Type: 1/4" TS footswitch connector

Digital Processing
Converters: 24-bit Delta-Sigma, 128-times oversampling
Sampling rate: 48 kHz

System Specifications
Frequency response: 10 Hz to 22 kHz, -3 dB
Dynamic range: 96 dB, 10 Hz to 22 kHz
Distortion: 0.01% typ. @ 0 dBFS
Crosstalk: -76 dB @ 1 kHz
Signal-to-noise ratio: 10 Hz to 22 kHz > 86 dB @ 0 dBu, A-weighted

Power Supply
Mains connection: external power supply, 12 VDC, 400 mA
Mains voltage: 120 V~, 60 Hz
Power consumption: approx. 3.5 W

Physical
Dimensions (H x W x D) 46 x 191 x 99 mm (1.8 x 7.5 x 3.9")
Weight 0.6 kg (1.3 lbs)
