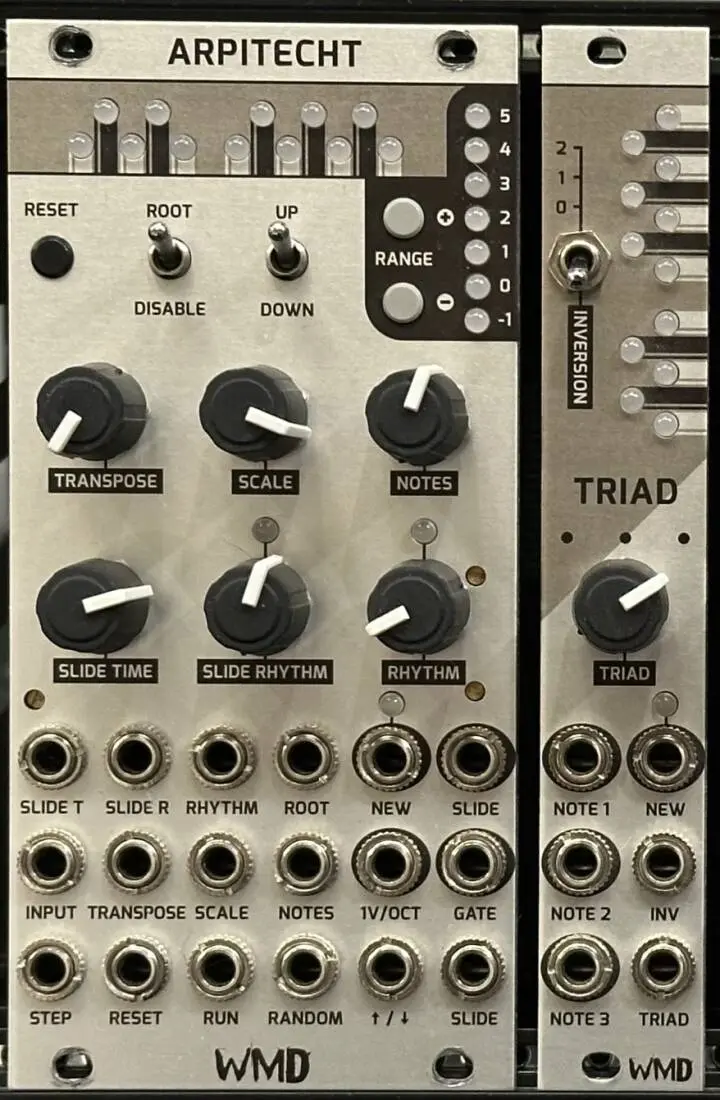

WMD Arpitecht with Triad Expander

Arpitecht:

Voltage controlled quantizer and rhythmic arpeggio generator designed for modular musicians. Create intricate melodies spanning 8 octaves, acid basslines, and evolving generative sequences. Features 16 scales with customizable note masks, 32 rhythm patterns, and 32 slide patterns—all with CV control. Transform static clocks into unique, evolving gate patterns and note changes. Optional Triad expander enables polyphonic chord generation in the same key as your arpeggios for complete harmonic control.

Triad:

Expansion module for Arpitecht that generates three static voltages to create chords with oscillators. Connects via ribbon cable and follows master's scale/transpose settings. Triad knob selects 3-note combinations, while inversion switch provides three chord voicings. Features CV inputs for dynamic control, three 1V/Oct outputs for oscillators, and trigger output for new chords. Perfect for adding harmonic depth to arpeggios while staying in key. Includes manual and CV control over chord selection and inversions.
