MicroBlock 45
45 watts of Quilter power in the smallest possible package. The ultimate pedalboard backup amp.

CONGRATULATIONS!
Your new MICROBLOCK 45 is a complete mid-power guitar amplifier, with a nice helping of “Quilter Mojo” in an unprecedented compact form. Popular applications include:

A complete guitar-amp head, with enough power and overdrive for rehearsals and even small gigs.
Headphone driver, with or without speaker connected.
All-purpose utility amp for popular music sources that use ordinary mini-plugs. For maximum headroom, keep Master on full and use the Gain to set volume level.
Gain to set volume level. • Perfect for any pedal board or ultra-compact power rig.
Velcro to the back of utility speakers, micro-combo rigs, or even conceal inside props that need sound.

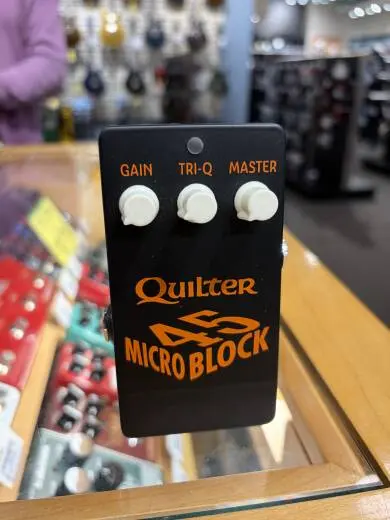

CONTROLS
GAIN: Cleaner on low settings, louder with more overdrive to the right.
TRI-Q: smoothly blends between three popular tone settings: “Scoop” on the left, “Normal” at 50%, “Lead” to the right.
MASTER: Adjusts the overall loudness and peak output power without changing the tone established by Gain and Tri-Q.
APPLICATION NOTICE -- THIS IS A MINI GUITAR AMP!

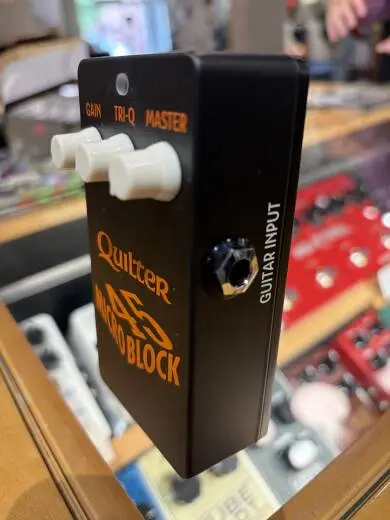

The INPUT JACKS are compatible with any standard guitar, pedal, or music source.

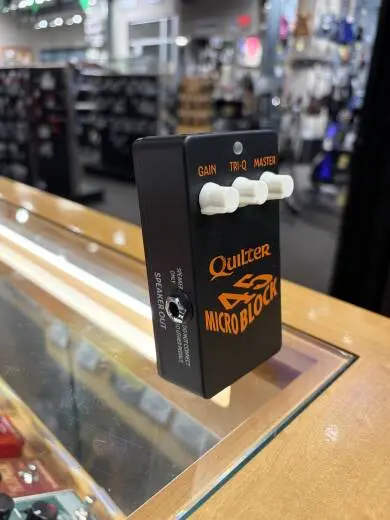

The OUTPUT JACK MARKED SPEAKER must be connected ONLY to a separate 4-16 ohm speaker. Do not connect to electronic inputs.

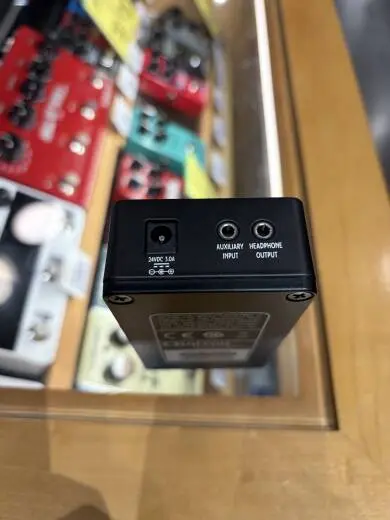

The HEADPHONE OUTPUT may be used to feed other electronic inputs or standard headphones.
USE ONLY WITH THE PROVIDED 24V-3A POWER SUPPLY, which is NOT COMPATIBLE with standard 9V pedal supplies. For maximum safety, plug the power supply into the MicroBlock, then connect to AC power.
