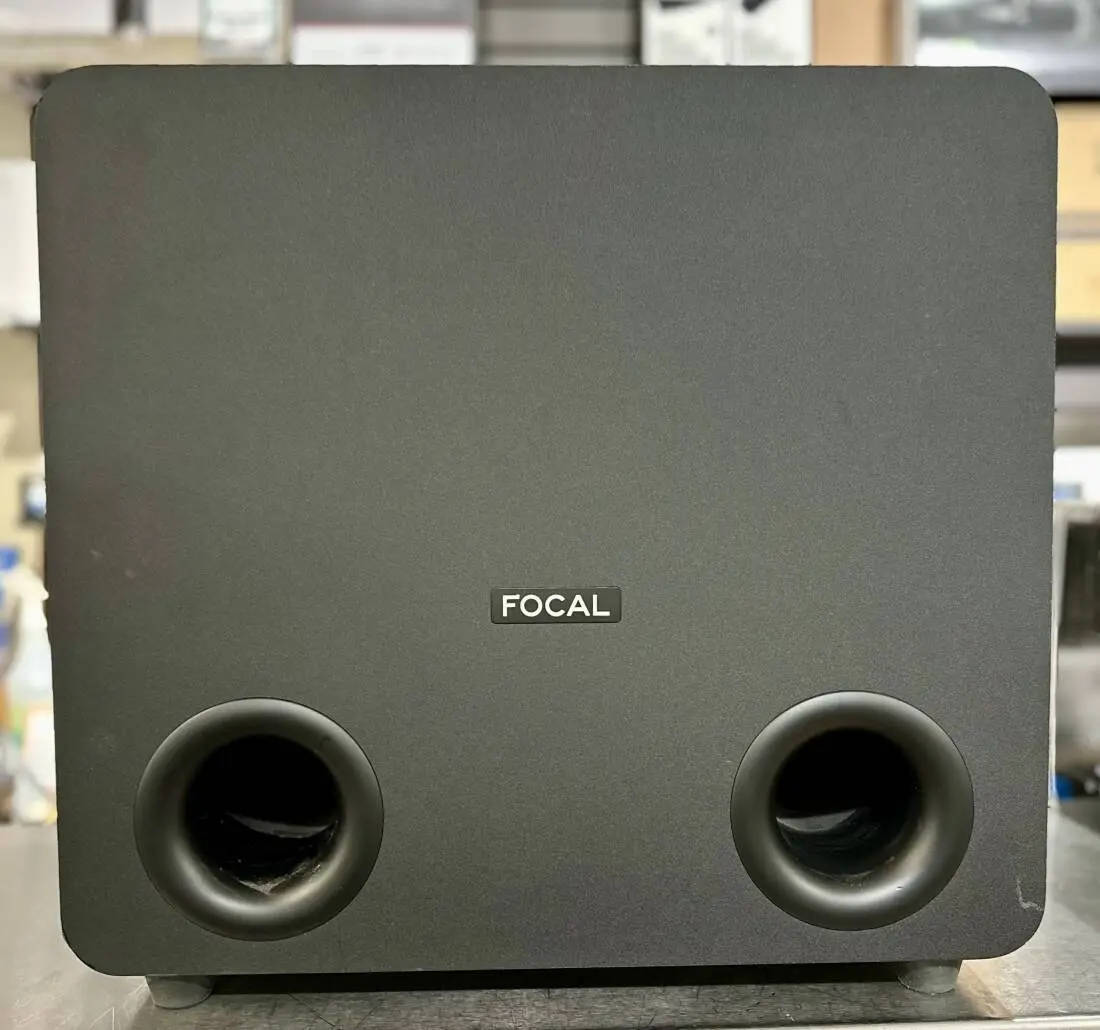

For producers and sound engineers with higher demands in the sub-bass, Focal offers Sub One, a subwoofer that delivers power of 200W RMS. Thanks to its precision and extremely low distortion, Sub One provides an ideal partner for the Alpha Evo and Shape lines. The speaker drivers boast an exclusive double-skinned Slatefiber cone: the two cones affixed against each other offer even greater rigidity, ideal for a subwoofer. Finally, with its large vents located on the front panel, Sub One is very easily and discreetly positioned along a wall or under a desktop as it takes up less depth.

Key Features
* 2 x 8" (20cm) woofers with Slatefiber cone made in France
* 200 W RMS amplifier
* Sound neutrality, precise control of bass equalization
* Compact design, optimal integration
* Multiple settings: low-pass crossover, volume, Footswitch input, etc.
* LFE, left and right inputs / left and right outputs
* Reproduction of sonic micro-details; precise adjustment of signal compression

Specifications
Frequency response (+/-3dB): 32Hz 120Hz

Maximum SPL: 114dB SPL (peak @ 1m)

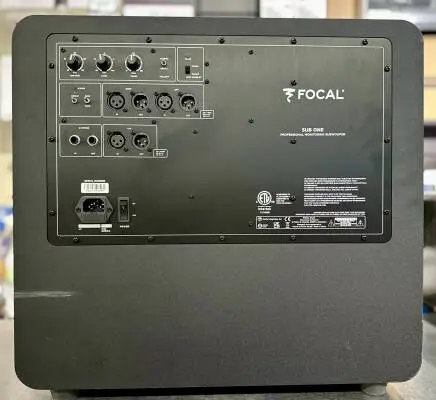

Inputs:
* Left, Right, LFE
* Electronically balanced / 110kOhms
* 3-point female XLR
* Variable

Outputs (to satellites)
* Left + Right
* 3-point male XLR in parallel on inputs

Amplification: 2 x 100W RMS, D-class
* Internal signal processing and functions:
* Left + Right mono summation
* 60Hz or 90Hz high-pass crossover
* Adjustable low-pass crossover, 24dB/octave
* Phase adjustment
* Polarity

User controls:
* Subwoofer level adjustment (sensitivity)
* Low-pass crossover cut-off frequency adjustment
* Phase adjustment
* Polarity inverter
* External mute (controlled by a pedal)

Indicators (LED): Power, Defeat

Power supply: Universal detachable IEC inlet power cord

Subwoofer: 2 x 8" (20cm) long-excursion Focal speaker drivers with "Slatefiber" cone

Construction: 7/8" (22mm) MDF panel with internal braces
Finish: Dark grey vinyl

Dimensions (HxWxD): 18-3/4"x11-3/4"x19-3/4" (475x310x520mm)
Weight: 40.8lbs (18.5kg)
