A revolution in stereo microphones
for the iPhone, iPad and iPod Touch.

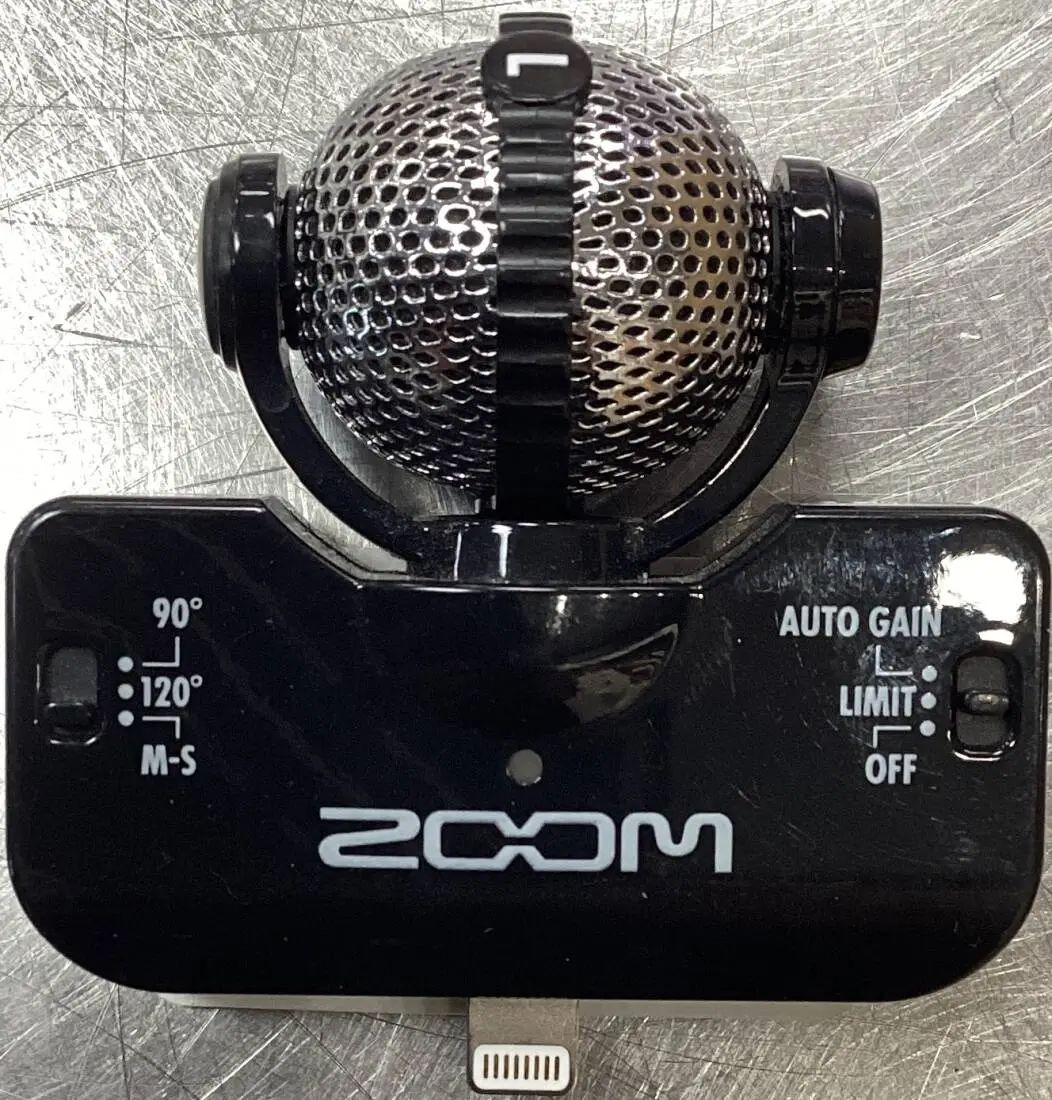

The Zoom iQ5 is a high-quality mid-side stereo condenser mic, perfect for recording music and compact enough to be slipped into your pocket. Simply connect it to the Lightning connector of your iPhone, iPad or iPod Touch and get ready to do some serious stereo recording any time, any place.

Use it vertically or use it horizontally
The iQ5 employs a unique rotating mechanism that enables audio recording with correct left-right stereo orientation whether used vertically or horizontally. Use it in standard "audio" position or simply rotate it to the "video" position in order to record video with the attached iPhone, iPad or iPod touch held horizontally.

Mid-side recording made easy
Mid-side recording makes it easy for anyone to record in realistic (and fully mono-compatible) stereo. The iQ5 actually contains two microphone elements: a directional "mid" mic that captures audio coming from in front and a bidirectional "side" mic that covers ambient signal. Stereo width can be set to 90 or 120 according to the recording situation, or you can opt to record the mid and side mic signals as RAW data and then use Zoom's Handy Recorder iOS app to adjust the stereo width from 30o to 150o. This allows you to go from a tight sound focused on a single instrument to a wide image that includes the surrounding ambience and reverberation. The app even allows you to collapse the signal into phase-coherent mono, which is great for interviews, narration and other voice recordings.

Precision gain control

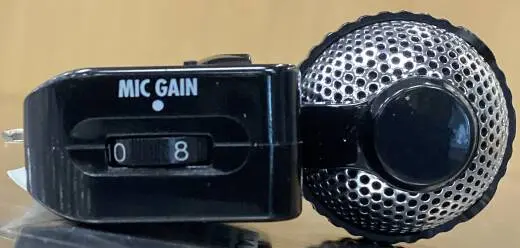

The iQ5 makes it easy to get great sound no matter what kind of material you're recording. Its analog-type MIC GAIN wheel allows you to dial in the perfect amount of gain for any recording application. Or choose one of three Auto Gain presets (Concert / Solo / Meeting) to automatically set the recording level for any given situation. You can also use the iQ5's built-in Limiter to avoid input overloads.

Note: The Handy Recorder app is required to enable the Auto Gain function.

The Handy Recorder app
Zoom's free Handy Recorder app is specially designed for use with the iQ5. Simply download it from the App Store and install it on your iOS devices. The app allows you to record in linear PCM format for the highest quality sound, or in AAC format to conserve storage space. It also enables you to apply compression, EQ and reverb effects, as well as normalize and divide files. Using the Handy Recorder app, you can even upload files to the SoundCloud audio sharing site, so you can immediately share your recording with the world.

SPECIFICATIONS
Microphone: Mid-side (M-S) stereo mic（90/120/M-S）
Maximum input sound pressure: 120dB SPL
Input gain: + 0 to + 40dB
Audio quality: 44.1kHz/16bit
Power: Powered by the connected iOS device. The connected iPhone/iPod touch can be powered by connecting the genuine Apple power adapter that was included with it to the USB connector. (* iPad/iPad mini does not support this function.)
Connector: Lightning connector. USB Mini-B connector (only for recharging the connected iOS device). Stereo mini jack (combined headphone/line level output)
Dimensions: 58.6（W） x 62.45（D） x 38.5（H）mm
Weight: 30.5g
Compatible devices: iPhone 5, iPod touch (5th generation), iPad (4th generation), iPad mini
Supported OS: iOS 6.0 or newer
