The controls

The Soundblox 2 Dimension Reverb controls are as follows:

• Effect knobs: by turning it you can select the type of reverb you want to use.
• Time: Used to adjust the length of the reverb.
• Option: adjusts the parameters selected through the OPTION SELECT button.
• Treble: is a control of the high frequencies of the generated reverb.
• Mix: Balances the clean signal (dry) with the effect signal (wet).
• Option Select: selects the parameter (pre-delay, diffuse, bass) that will be controlled by the Option knob.
• Control Input: select the type of external control that will be used, if one is connected (eg: Hot Hand).
• Footswitch 1 and 2: activate and deactivate the selected presets, keeping them pressed saves the preset in use.

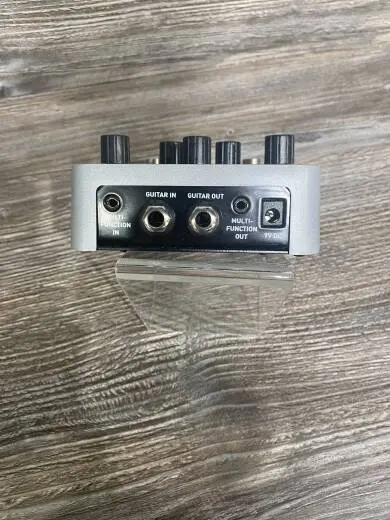

The inputs

The Dimension Reverb features the following inputs:

• Guitar in: it is the input for the connection of our instrument through a normal mono cable.
• Guitar out: is the signal output, to be connected to another pedal or to the amplifier.
• Multifunction in: This is the input designed for using an external interface, such as an expression pedal, a MIDI controller or a Hot Hand controller.
• Multifunction out: it is the output to connect the pedal to another multifunction input of a subsequent pedal of the Soundblox series.
• 9V DC: it is the power supply input, with BOSS type connector.
