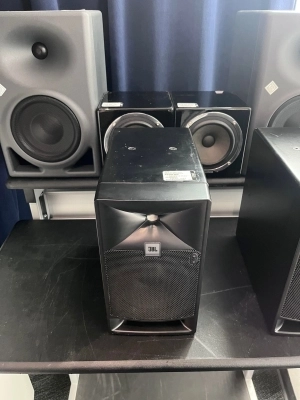

JBL - 705P
Description
The JBL 705P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The JBL 705P leverages the same patent-pending driver technologies and JBL's renowned Image Control Waveguide found in the 708P and the flagship M2, but with a smaller footprint. Despite its compact size, JBL 705P delivers an eye-opening level of output, well beyond that of existing, comparably-sized studio monitors, for greater dynamic range and greater working distances. The speakers deliver an expansive soundstage and pristine accuracy in a broad range of rooms.
Features:
* Next-generation JBL driver technology
* Patent-pending JBL Image Control Waveguide
* Integrated dual amplification system with internal floating-point DSP
* Comprehensive room EQ and delay controls
* Compact enclosures for easy placement and installation
* JBL 725G low-frequency transducer delivers low-distortion and high SPL
* JBL 2409H high-frequency transducer with low-mass annular diaphragm
* JBL-designed patent-pending Image Control Waveguide
* 2-channel Class-D amplifier HF 250W / LF 250W
* 192 kHz, 32-bit floating point processing
* 12 bands of Room EQ, 8 bands of User EQ
* 6 factory presets, 6 user-defined presets
* 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
* 1 x XLR-1/4" balanced combination analog audio input
* 1 x XLR AES3 format digital input with 1 x XLR pass-through output
* Digital input accepts sample rates of up to 192 kHz
* User-enabled sample rate converters
* RJ-45 network connection for Harman HiQnet connectivity

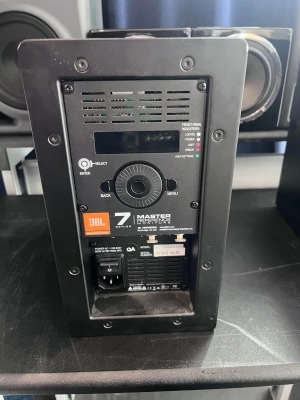

* Rear-panel multi-function controls and LCD display allow selection of input sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay
* Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting
* Protective steel grilles
Specifications:
* Frequency Response: -1.5 dB @ 48Hz - 23kHz
* Frequency Range: 39Hz - 36 kHz
* Max SPL: (80 Hz - 20 kHz) >101 dB SPL / 1m
* Maximum Peak SPL: (80 Hz - 20 kHz) >107 dB SPL / 1m
* HF Driver: 2409H
* LF Driver: 725G
* Dividing Network Transition Frequency: 1.9 kHz
* Input Types: 1 x XLR-1/4" balanced combination analog audio input , 1 x XLR AES3 format digital input with 1 x XLR pass-through output , Digital input will accept sample rates up to 192 kHz
* Dimensions (HxWxD): 10.5 x 5.875 x 8.125 in (267 x 149 x 206 mm)
* Weight Each: 9.0 lb (4.08 kg)
* Enclosure: Birch plywood reinforced for mounting
* Mounting: Top, bottom and rear mounting points. 2-hole mounting pattern
