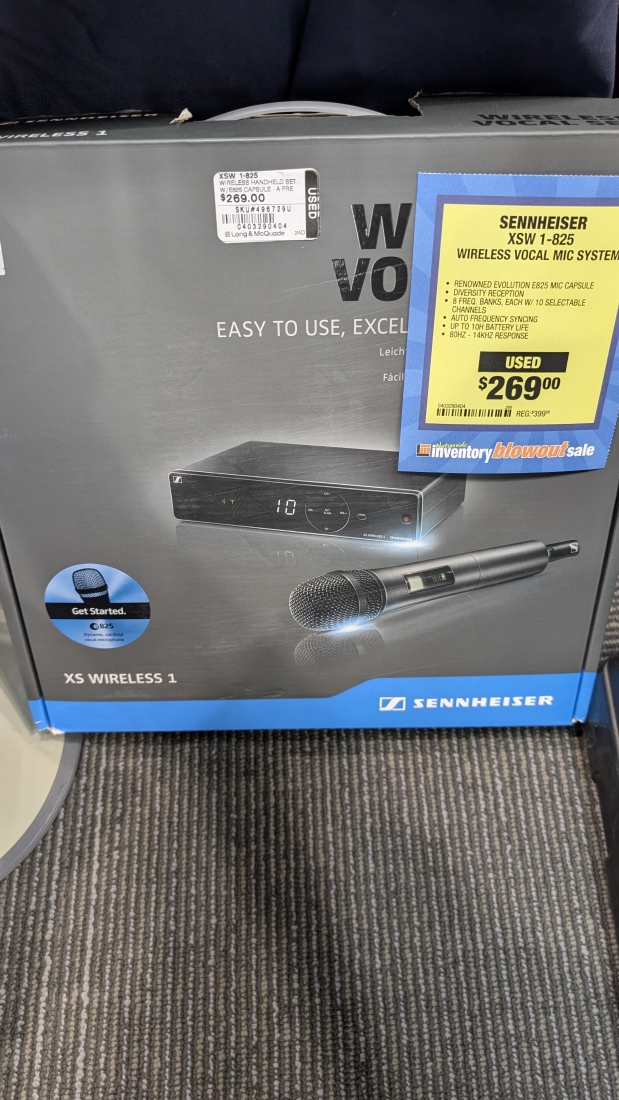

Sennheiser - XSW 1-825

SKU: 496729 Model: XSW 1-825 Serial: 0022290865
Quantity Available: 0 Condition: Used

Sennheiser - XSW 1-825

Buy From Store

 Pick up at the store only. Contact Langford British Columbia

 This product may not come in original packaging.

You are looking at serial 0022290865

We have 6 of these online.

Compare all 6


The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser's renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band.

* Excellent live sound featuring Sennheise's renowned evolution microphone capsule (e825)
* Antenna-switching diversity reception
* Integrated antennas
* Automatic frequency management and synchronization via remote channel for easy setup
* Selectable UHF frequencies within a large bandwidth
* Up to 10 compatible channels

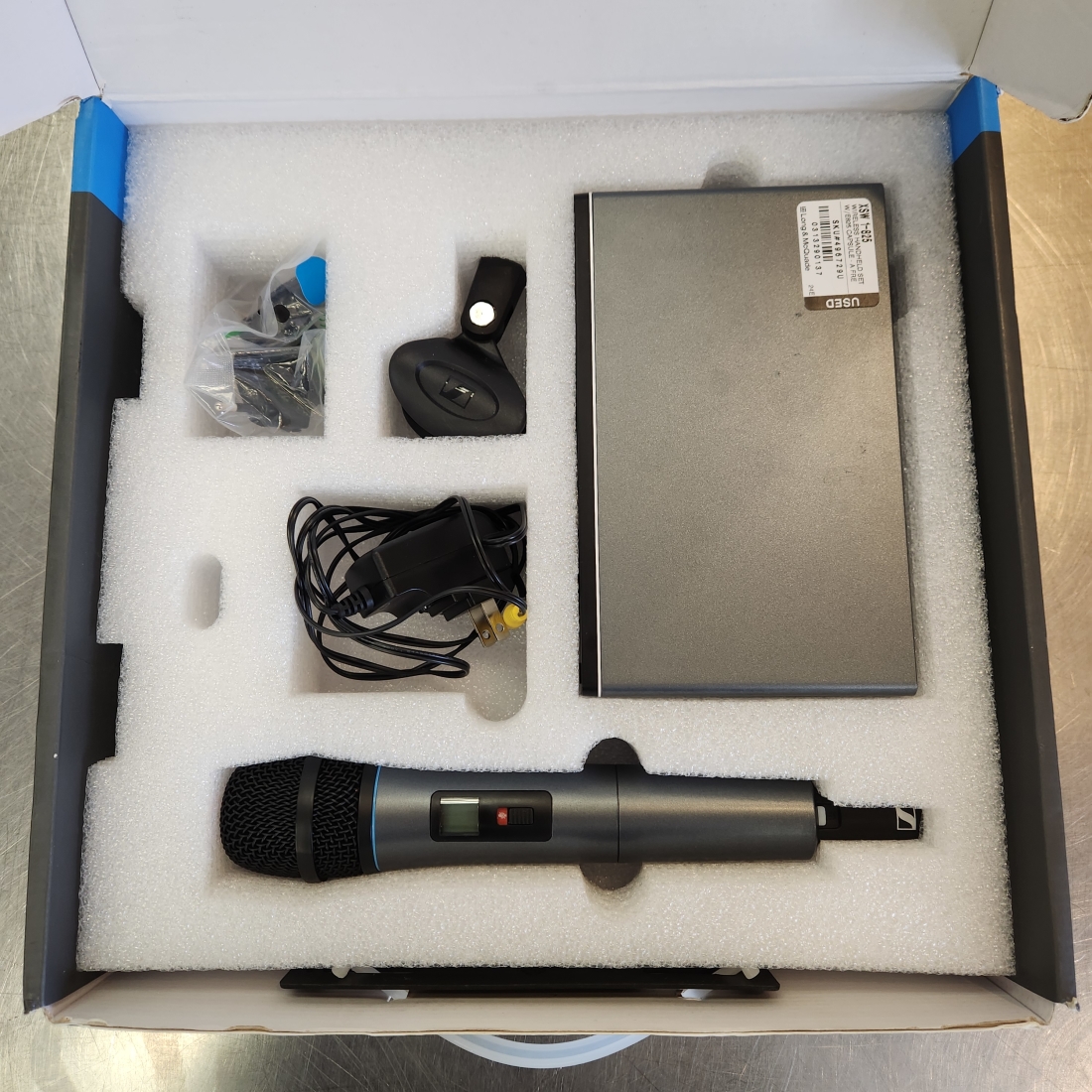

1 receiver EM-XSW 1
1 handheld transmitter SKM 825-XSW
1 microphone clamp MZQ 1
1 power supply NT 12-5 CW
2 AA batteries

Dimensions: approx. 200 x 42 x 127 mm
THD, total harmonic distortion: < or equal to 0.9%
Pick-up pattern: cardioid
Signal-to-noise ratio: > or equal to 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Operating time: approx. 10 hrs
Modulation: wideband FM
Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: rugged ABS housing
Dynamic range: dynamic
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Sensitivity: < 3 μV at 52 dB(A)rms S/N
Squelch adjustable: from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
Adjustment Range: Transmitter 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range operation: 0 deg C to +40 deg C, storage: 20 deg C to +70 deg C
Receiver Principle: double superheterodyne
Diversity Principle: Antenna switching diversity via internal antennas

Receiver Weight: approx. 340g
Power supply: Receiver: 12 V DC nom. / 300 mA
AF frequency response: Receiver: 50 to 16,000 Hz (3 dB)

Microphone Weight: approx. 245g
Power supply: Microphone: 2 AA size batteries, 1.5 V
AF frequency response: SKM 825: 80-14,000 Hz / SKM 835: 80-16,000 Hz
