Gear Hunter

Yorkville - YSM6

SKU: 333739 Model: YSM6 Serial: 1071180
Quantity Available: 1 Condition: Used

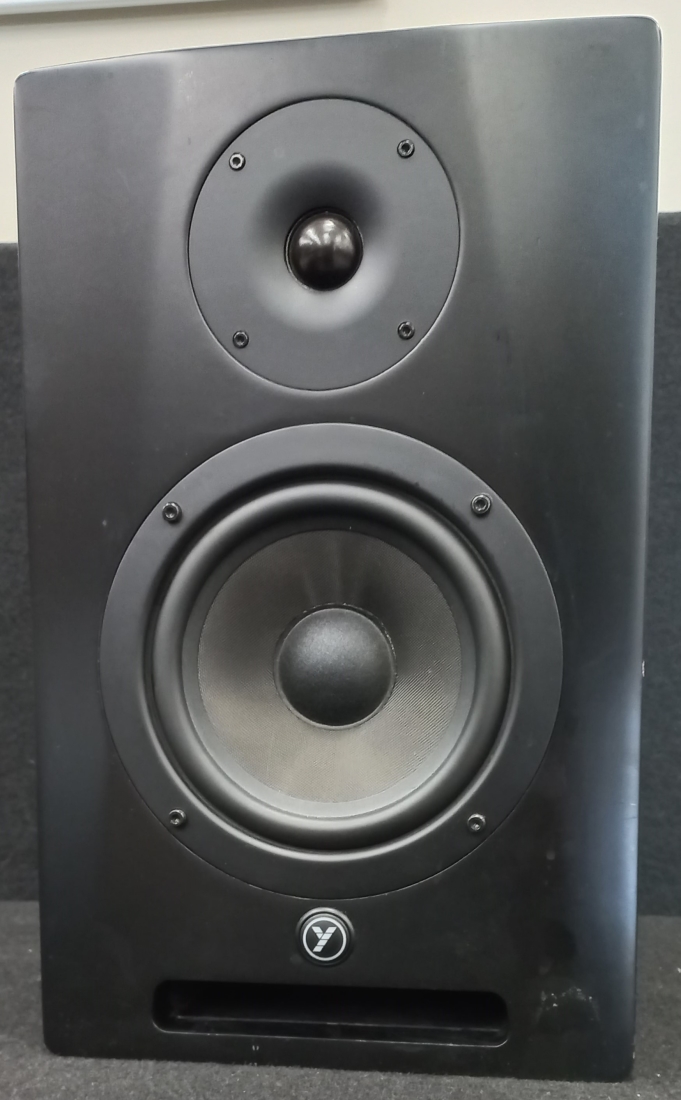

Yorkville - YSM6

Sale Price: $269

Original Price: $269

Buy From Store

Notify Me

 Customer responsible for any shipping charges.



Designed from the ground up to deliver maximum performance, clarity and accuracy for home or project studios, the new Yorkville YSM Series powered monitors are priced to suit virtually any engineers budget.

Contoured MDF baffle housing the high quality custom soft dome tweeters and low frequency woofers used in the new YSM Series monitors are designed to minimize reflections improving phase response and providing a wider sweet spot in the listening position. Front facing ports used in the YSM Series monitor design solve the issues of bass coupling with back walls and corners which general false low frequency information in your mix, a common issue with competitive monitors that choose to use rear firing ports.

Compatible with virtually any source Yorkville YSM Series monitors have a widely variable input trim control for the balanced XLR / 1/4-inch combi-jack input capable of handling level from everything from computer soundcard and mixer outs. Four position high and low frequency trim controls (at -2, -1, 0 and +1.5dB) allow user adjustable EQ contour to compensate for speaker placement in less than perfect listening spaces.

Rock-solid 3/4-inch MDF cabinet construction with heavy internal bracing and ample internal dampening material reduces unwanted low frequency rumble ensures Yorkville YSM Series cabinets reproduce source material with near pinpoint accuracy and detail.

*Sold Individually*

YSM6 Details

* Model: YSM-6
* Active or Passive: Active
* Total Applied Power (Watts): 65
* Configuration: Biamp
* Max SPL: 105db
* Frequency Response (Hz +/- 3db): 50Hz - 20kHz
* Crossover Frequency (Hz): 2.6 kHz
* HF Driver: Neo Soft Dome Ferro Fluid Cooled
* HF Program Power (Watts): 20
* HF Dispersion (H x V): 60
* HF Protection: Thermal, Over Voltage
* LF Drivers: 6.5" Composite
* LF Program Power (Watts): 45
* LF Impedance (ohms): 4
* LF Protection: Thermal, Over Voltage
* Sheilding: Yes
* HF Power Amplifier (Watts): 18
* HF Amplifier Type: A/B
* HF Distortion: 0.08
* LF Power Amplifier (Watts): 50
* LF Amplifier Type: A/B
* LF Distortion: 0.02%
* LF Processing: Analog
* Cooling Scheme: Convection
* Power Cable: Included
* Power Switch: Front
* Power Consumption (typ/max): 40/100 VA
* Inputs - 1/4-inch x 1, XLR x 1
* Input Sensitivity (Vrms Sine): 0.2
* Level Controls: 1
* EQ Controls: 2
* Limiter: Yes
* LED Indicators: Power On Front
* Other Controls / Features: Base Foam Pad
* Enclosure Materials: MDF
* Baffle Material: MDF
* Covering / Finish: Enamel
* Dimensions (DWH xbackW, inches): 10 x 9.5 x 15
* Dimensions (DWH xbackW, cm): 25.4 x 24.13 x 38.1
* Weight (lbs/kg): 21 / 9.5
