Behringer - 1006 FILTAMP
Buy From Store
Pick up at the store only. Contact Toronto (LM Pro) Ontario
This product may not come in original packaging.
Description

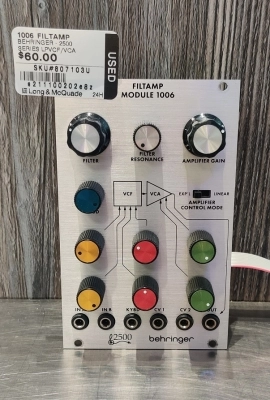

This is the Behringer 2500 series FILTAMP MODULE 1006. An authentic reproduction of the original "System 2500" circuitry from the 70's that can fit in a standard Eurorack case. The best part? Its at a very affordable price. Mix the FILTAMP MODULE 1006 in with your existing rig or start your modular synth journey from here. Either way you're sure to have a lot of fun.
The FILTAMP MODULE 1006 is a classic voltage controlled 24 dB per octave low pass filter, the filter is a matched transistor ladder design followed by a matched transistor VCA for a vintage sound. The 1006 filter is equipped with a filter frequency control, a resonance control capable of self-oscillation, 3 summed CV inputs all with independent attenuators for maximum flexibility, the 2 filter signal inputs are also equipped with 2 dedicated attenuators so act as an input mixer.
The VCA has an amplifier gain control which is summed with the CV inputs, an exponential or linear response switch and 2 summed CV inputs with attenuators. All this lets you shape your sound to perfection
Specifications
InputsType: 2 x 3.5 mm TS jacks, DC coupled
Impedance: 70 kΩ, unbalanced
Max input level: +14 dBu
Keyboard
Type: 3.5 mm TS jack, DC coupled
Impedance: 50 kΩ, unbalanced
CV range: 0 to 10 V
CV 1/2: Type 2 x 3.5 mm TS jacks, DC coupled
Impedance: 50 kΩ, unbalanced
CV range: 0 to 10 V
Outputs
Type: 3.5 mm TS jack, DC coupled
Impedance: 1 kΩ, unbalanced
Max output level: +14 dBu
Controls
In A/B: -∞ to unity gain
Keyboard: 20 Hz to 20 kHz, 1 V/octave
CV 1/2 VCF: 20 Hz to 20 kHz, 1 V/octave
CV 1/2 VCA: -∞ to unity gain
Filter: Cutoff frequency, 20 Hz to 20 kHz
Filter resonance: Off to self resonance
Amplifier gain: -∞ to unity gain
Amplifier control mode: Linear or exponential VCA control
Power
Power supply: Eurorack
Current draw: 22 mA (+12 V), 20 mA (-12 V)
