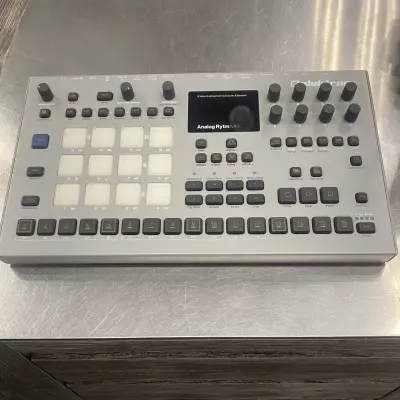

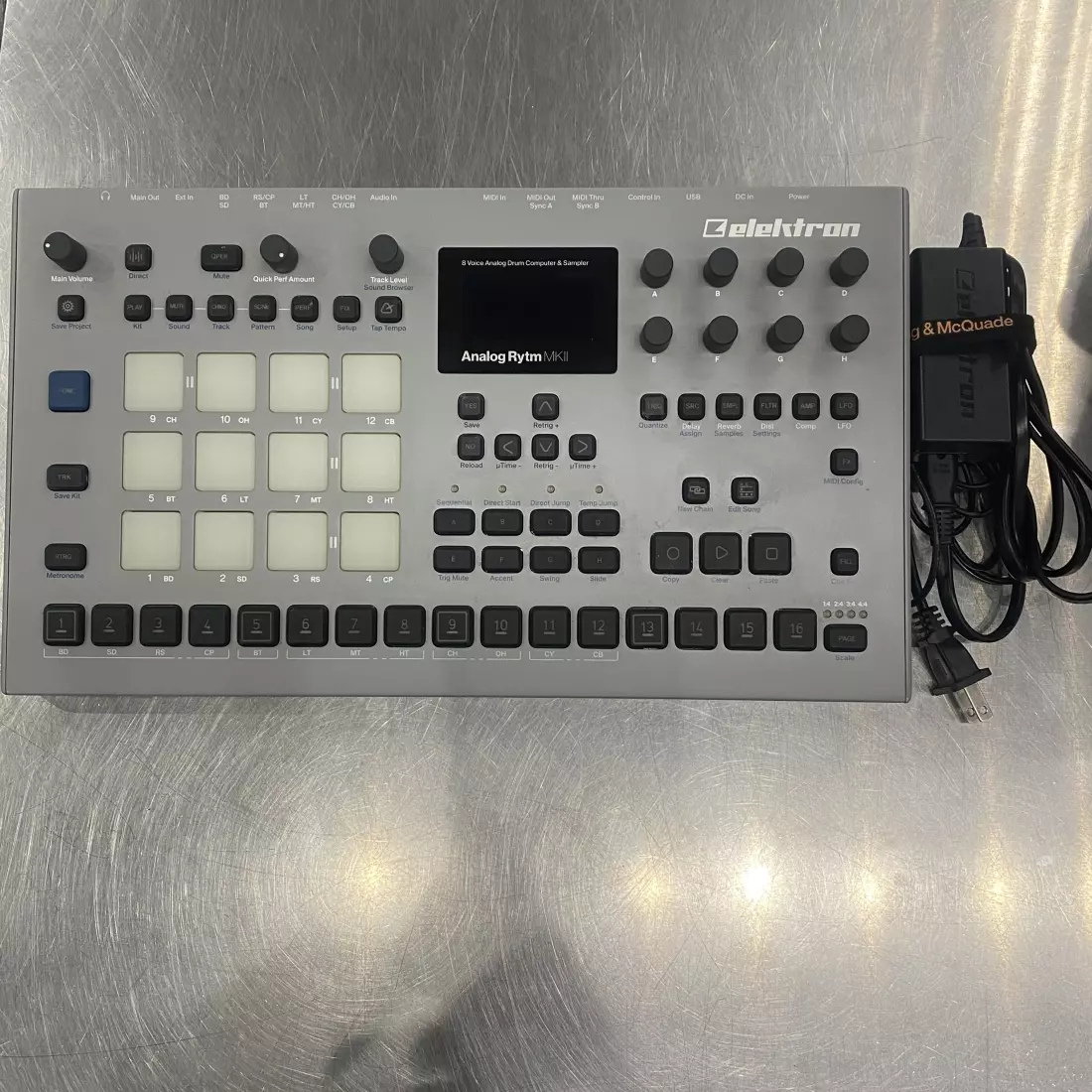

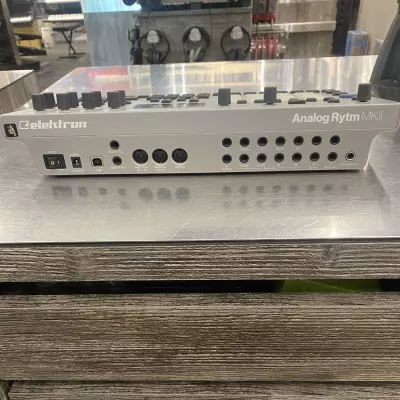

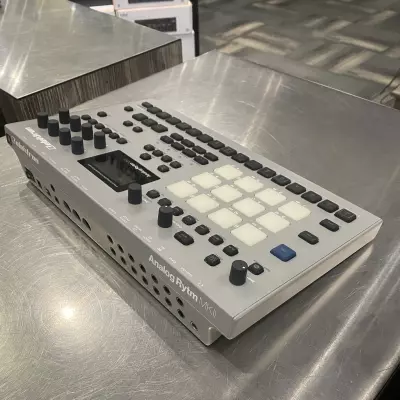

Elektron - ANALOG RYTM MK2

Description

Analog Rytm MKII is an analog/digital beat making dream machine. Everything from the state of the art aluminium enclosure, via the large pads, to the new quick performance controls is a direct result of the quest for rhythmical excellence. And now you can sample with it too.

Analog Rytm MKII features several upgrades compared to the MKI version:

* Sampling capability
* Crisp, large OLED screen providing optimal feedback in dimly lit environments
* Ultra durable back-lit buttons rated for 50 million presses
* Precise, hi-res encoders
* Quick performance controls
* Large pads for maximum playability
* Increased amount of dedicated buttons enabling quicker workflow
* Expression/CV inputs for external control of Analog Rytm MKII parameters
* Balanced sampling inputs
* Overbridge with higher bandwidth
* Premium cast aluminium enclosure

Eight voice analog drum machine & sampler

True analog punch
What really sets the Analog Rytm MKII apart is the analog sound. It has a magic character. The depth of the kick drums, the bite of the snare drums, those cavernous toms, the airy shimmer of the hihats. Fine-tune the sounds to your liking and get working.

Elevated by samples
For ultimate creative versatility you can layer samples on top of the analog drum sounds. Capture your own sounds, or use pre-recorded material, to make your beats as smooth, as rough, as realistic or as fantastic as youd like. The perfect unity of analog percussion and sampling simply goes beyond.

Maximized playability
When youve got your drums ready, record them to the sequencer and play them back. Do it using the pads, or perform detailed programming on the sequencer steps. Really meticulous or totally spontaneous: it's up to you.

Specifications:

Drum voice features (8)
* Fully analog signal path
* 1 specialized analog percussion sound generator
* 1 sample playback engine
* 1 analog overdrive circuit
* 1 2-pole analog multi-mode filter
* 1 panning VCA pair
* 1 filter envelope
* 1 amp envelope
* 2 individual effect sends
* 1 assignable LFO
* 1 dedicated LFO fade envelope

Storage
* 128 Projects (+Drive)
* 16 Songs per Project
* 4096 Sounds (+Drive Sound Library)
* 1 GB +Drive sample storage
* 127 factory samples

Sequencer
* 12 drum tracks
* 1 FX track
* Up to 64 steps per pattern
* Full real-time control

Send effects
* Delay
* Reverb

Master effects
* Analog stereo distortion
* Analog stereo compressor

Hardware
* 12 large, velocity, pressure sensitive, and backlit pads
* 128 64 pixel OLED screen
* MIDI In/Out/Thru with DIN Sync out
* 2 x 1/4" impedance balanced audio out jacks
* 1 x 1/4" stereo headphone jack
* 8 x 1/4" impedance balanced individual track output jacks
* 2 1/4" balanced audio in jacks
* 2 1/4" ext in jacks
* 2 1/4" CV/Expression inputs
* 48 kHz, 24-bit D/A, and A/D converters
* Flash-EEPROM upgradable OS
* USB 2.0 port

Electrical specifications
* Unit power consumption: 14 W typical, 20 W maximum.
* Recommended power supply: 12 V DC, 2A

Physical specifications
* Aluminum enclosure
* Dimensions: W385  D225  H82 mm (15.2  8.85   3.3″) including knobs, jacks and feet
* Weight: approximately 2.4 kg (5.3 lbs)

Miscellaneous
* 3 year Elektron warranty

Included in the box:

- Analog Rytm MKII
- Power Supply PSU-3b
- Elektron USB cable
- Quick Guide
