Description

e16i Input Module

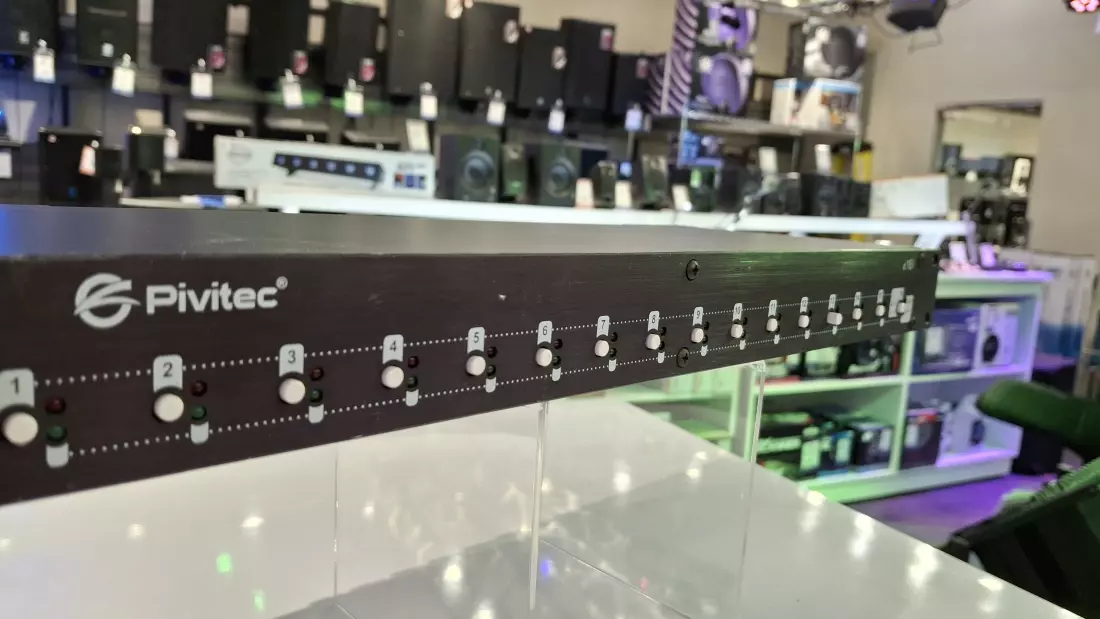

The Pivitec e16i Input Module is a 16-channel Ethernet AVB “Talker” Endpoint. Use the Pivitec e16i
to convert signals from analog sources such as mixing consoles, microphone preamps, instruments,
or any other line level source. The16 balanced line-level input channels are converted to 24 bit 48K
digital audio and sent to the audio network as a 16 channel Ethernet AVB stream. Each input is
selectable between +4 / -10 Signal Level and features 22dBu of input headroom.
Features:
• 24 bit / 48k Analog to Digital Converters

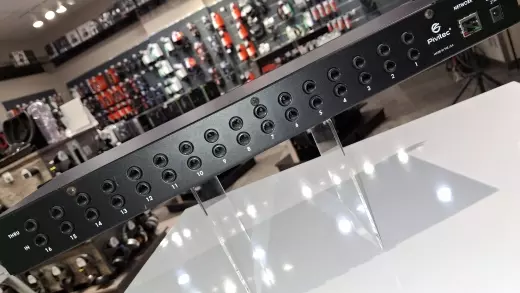

• 16 Balanced Line Level Inputs via 1/4” TRS connectors
• Parallel Inputs for pass through connection to other devices
• Signal and Clip indicators for each audio input
• +4 / -10 Selectable Input Level
• High Quality THAT InGenius® Line Receivers on each input
• Made in USA
As an integral component in the Pivitec Audio Networking product family, the e16i is the perfect
audio source for the e32 Personal Monitor Mixer. Multiple e16i’s can be combined to create larger Networks
