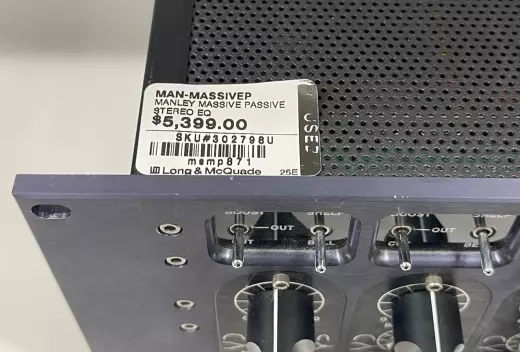

Manley - MAN-MASSIVEP

Description

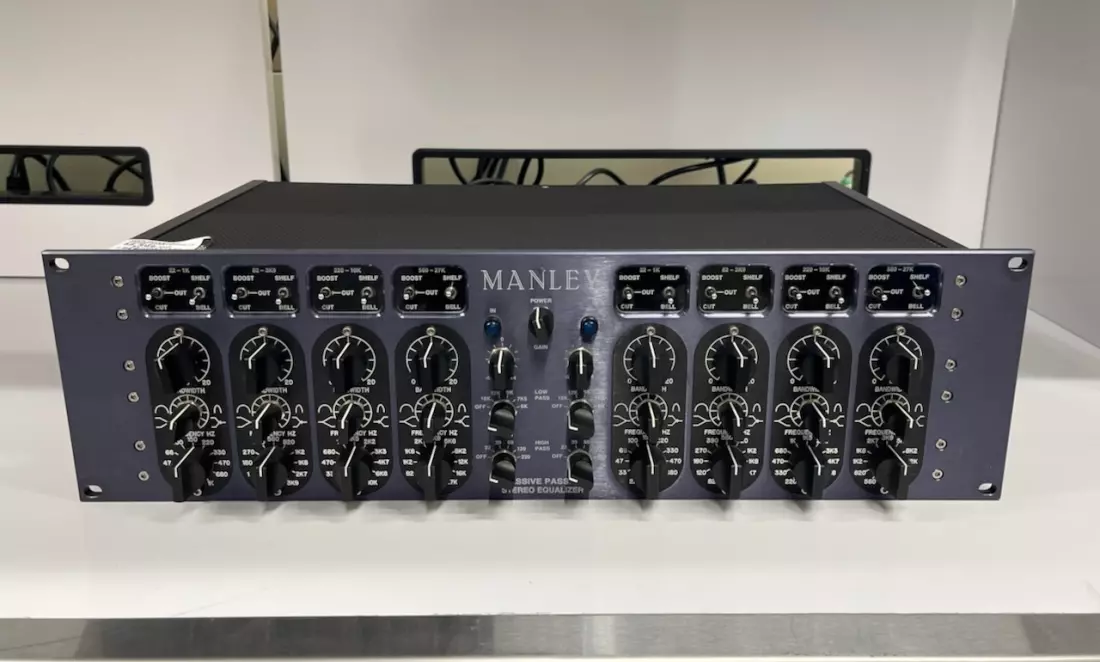

The Manley Massive Passive Stereo Tube EQ is a two-channel, four-band equalizer (with additional high pass and low pass filters) that can handle radical EQ sometimes needed for tracking as well as the most subtle shadings for vocals and mastering. It is designed to be a fundamentally different EQ but incorporates the best strengths of Pultecs, choice console EQs, parametrics and graphics. The difference is that the Massive allows twice as much EQ with half the coloration. It delivers huge HF boosts without sibilance problems and extreme fatness with impressive clarity.
Manley Massive Passive Features:
All-Passive tone sculpting circuitry
Unique Shelf curves use the "bandwidth" control
Overlapping and Interleaved Frequency choices
Every band switchable to shelf or bell
Vacuum tube make-up gain and line drivers
Parallel symmetrical topology
Premium components throughout
HP and LP Filters plus gain trims
Modular design allows future upgrades and special functions

Manley Massive Passive Specifications:

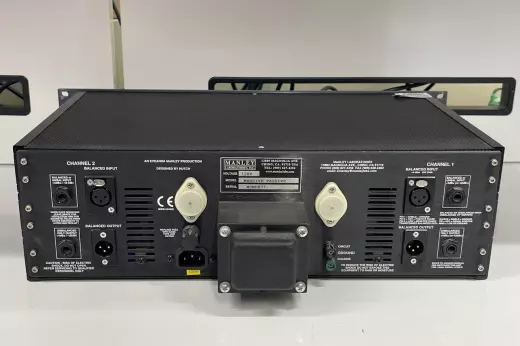

Ins and Outs Balanced XLR and 1/4" (accepts unbalanced)
Level +4 dBu nominal, internal switches for -10 operation
Bypass Switch bypasses EQ and tube circuits (not hardwire)
44 Frequencies (roughly 1/4 octave spacing)
Frequency Range: 22 Hz to 27 Khz
EQ Boost/Cut Range: 20 dB boost, 20 dB cut
Nominal Q range: 1.5 to 3 (uniquely active in shelf modes)
Frequency Response: +/- 2 dB: 8 Hz to 60 KHz
Maximum Output @ 1.5% THD +37 dBv; +26dBv @ 20 Hz
THD and Noise (1KHz @ +4 dBu): 0.06%
Noise Floor (referred to +4dBu): -85 dB (A Weight)
Dynamic Range: 120 dB
Power Consumption (120/240VAC): 72 watts
Unit is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage
Mains Voltage Frequency: 50~ 60Hz
Size (3U): 19" x 5.25" x 10"
Weight: 21 lbs
