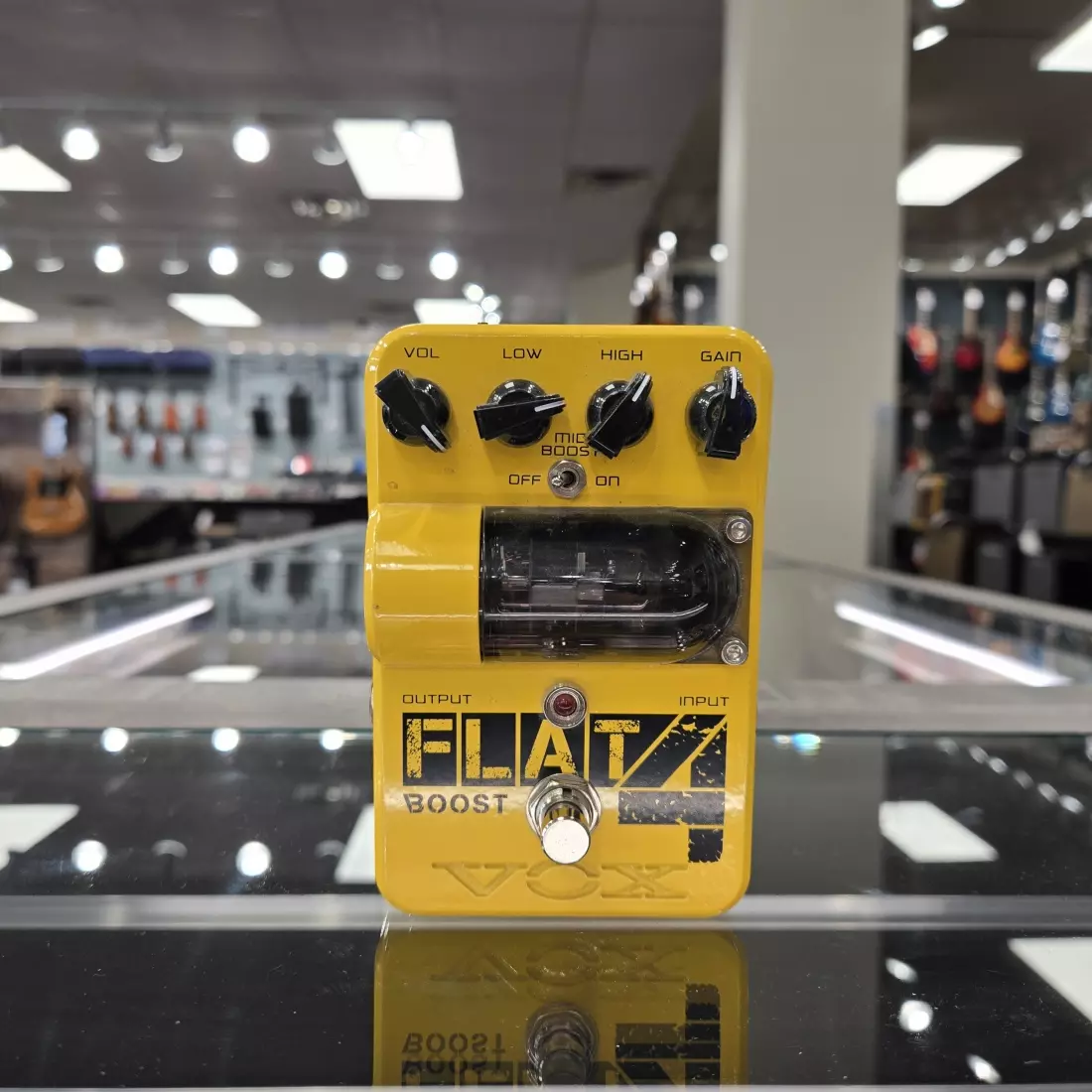

VOX FLAT 4 BOOST

SKU: 19 Model: TG1FL4BT Serial: 001804 Views: 30
Quantity Available: 1 Condition: Used Excellent Condition

VOX FLAT 4 BOOST
VOX FLAT 4 BOOST 2
VOX FLAT 4 BOOST 3
VOX FLAT 4 BOOST 4
VOX FLAT 4 BOOST 5
VOX FLAT 4 BOOST 6

Sale Price: $100000

Buy From Store

Notify Me

 Customer responsible for any shipping charges.

 This product may not come in original packaging.


Description

This vacuum tube booster can be used for a mid-boost, treble-boost, and overdrive, in addition to a full-range boost. Its Baxandall tone circuit allows adjustment from the flat position to the desired boost or cut range. Raising the gain will gradually apply a low-cut, giving you an overdrive sound that’s strongly reminiscent of sought-after vintage tones. An independent mid-boost switch lets you switch the response of the mid-range, which is ideal for playing lead. This is a great unit for blues guitarists who wish to highlight their picking nuances.

VOX FL4BT FLAT 4 BOOST Specifications
Input impedance:
1M Ω

Output impedance:
2.2k Ω

Vacuum tube:
ECC83 / 12AX7

Connections:
INPUT jack (guitar input), OUTPUT jack (line output)

Power:

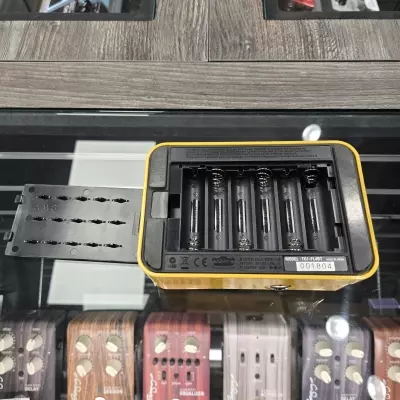

AA battery x 6

AC adapter:
DC 9V (Option)

Vacuum tube operating voltage:
200 V

Consumption current:
240 mA

Battery Life:
Approximately 7 hours

Dimensions: (W x D x H):
87 x 132 x 63 / mm, 3.43 x 5.20 x 2.48 / inch

Weight:
420 g / 14.81 oz (not including battery)
