Yorkville M810 800W Powered Mixer

Description

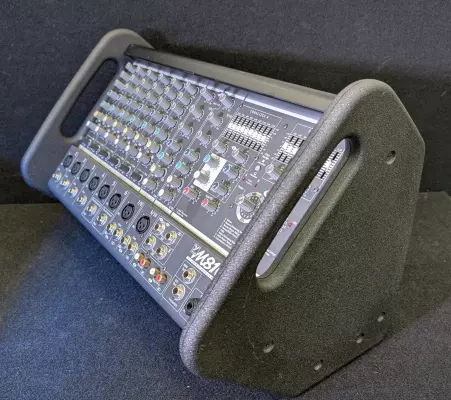

The convenience, lighter weight and small 'footprint' of a box mixer with the tilt-back visibility and channel control access of a desk mixer makes these new 'wedge' mixers an ideal high power, high quality powered mixer solutions. High-powered high-efficiency class-H power amplifiers, on-board DSP, 9-band graphic EQ and ten very useful and usable input channels complete the mixer design.

The 800-watt M810 has two integrated 400-watt power amplifiers that can be assigned as stereo mains, or mono main and mono monitor. Each amplifier is attached to a master EQ section designed specifically for these mixers. The EQ can control left or right main output, or if the amplifier is switched to the dual-mono mode, the mains and monitors. In addition to the graphic EQs, there are 2 2-band shelving equalizers for overall tone adjustment.

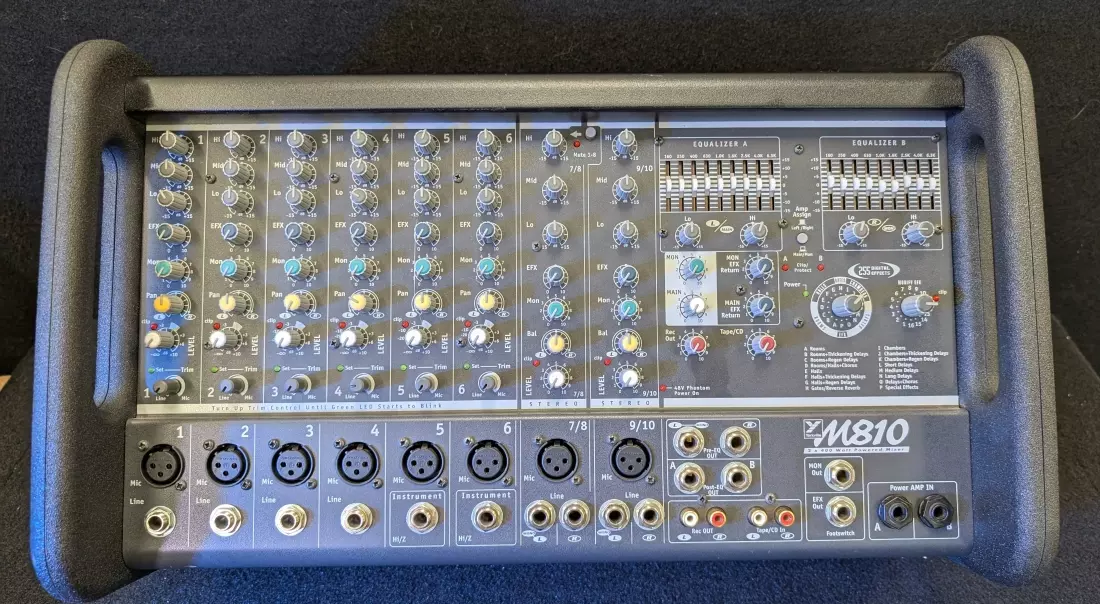

The M810 has 10 input channels. The first six channels have balanced XLR microphone and TRS balanced inputs, input trim control, three-band EQ, master volume and trim set light. The mono line inputs on channels 5 and 6 are pre-EQ'd for Hi-Z instrument level input, making them an ideal place to start when looking for that perfect live acoustic guitar or direct bass sound.

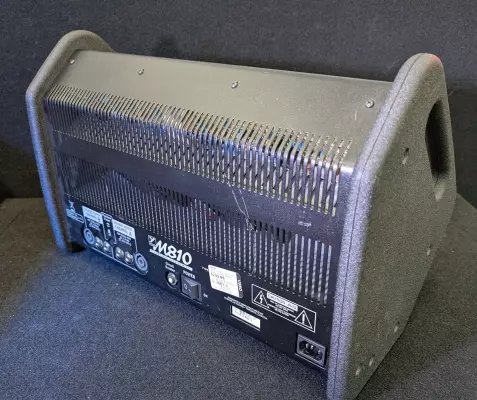

All Yorkville Box Mixers are built knowing they have to withstand a long worry free life on the road. Designed for the working musician, only high quality epoxy circuit boards coated with thick copper laminate and precision low noise components are used. Large heatsinks and variable speed DC fans ensure that the mixers keep their cool even under the most demanding live performance conditions.

The Yorkville M810 is made in Canada.

Number of Channels: 10
Mono Channel EQ: Low, Mid, High
Stereo Channel EQ: Low, Mid, High
Channel Effects: All Channels
Monitors Effects: Yes
Balance Controls: Ch. 7 - 10
Pan Controls: Ch. 1 - 6
Channel Overload Protection: Ch. 1 - 6
Inputs - XLR: (bal) 8
Inputs - 1/4-inch: 10
Inputs - RCA: (unbal) 1 Pair
Mute Switches: Global 1 - 8
Activity / Solo LED Trim Set Ch. 1 - 6
Clip /Mute LED: All Channels
Phantom Power: 48V + LED Indicator
Internal Effects: 24 bit Stereo, 16 Effects with Modify EFX pot
Auxiliary Sends Effect: Monitor
Effects Send: Yes
Effects Return: Internal
Effects Return to Main: Yes
Effects Return to Monitor: Yes
Reverb / Effects Footswitch (optional): Yes
Record Outputs: Stereo RCA Pair
Max Gain to Line Out -Mic Input: (dB) 84
Max Gain to Line Out -Line Input: (dB) 82
Master EQ -1 (type /Channels /Range - dB) Graphic 9 band (160hz-6.3khz) +2 band Shelving
Monitor EQ -1 (type /Channels /Range - dB) Graphic 9 band (160hz-6.3khz) +2 band Shelving
Main Outputs ( Line Level) 2 x 1/4inch TRS
Main Amp Inputs (Line Level) 2 x 1/4inch TRS
Monitor Outputs (Line Level) 1 x 1/4inch TRS
Outputs - Amp A - 1/4-inch Jacks 2
Outputs - Amp A - Speakon 4-pin 1
Outputs - Amp B - 1/4-inch Jacks 2
Outputs - Amp B - Speakon 4-pin 1
Mixer - Signal to Noise Ratio (dB) 105
Mixer - Frequency Response (Tone and EQ Flat,+/-2dB) 20 - 20,000
Mixer - Input Referred Noise to line out, @ 150 ohms (dBv) -119
Mixer THD (Main out w/ -10dB input) 0.01%
Amp A - Power Output @ 8 ohms (0%1"THD, 1kHz) 250
Amp A - Power Output @ 4 ohms 400
Amp A - Power Output -other 400 @ 2 ohms
Amp B - Power Output @ 8 ohms (0%1"THD, 1kHz) 250
Amp B - Power Output @ 4 ohms 400
Amp B - Power Output -other 400 @ 2 ohms
THD - 1kHz (dB) 0.1%
THD - 20Hz-20kHz (dB) 0.5%
Hum and Noise (un / Aweight -dB) -101 / -107
Typical crosstalk -1 kHz (dB) better than -60db
Input Impedance - Bal/Unbal (ohms) 20k / 10k ohms
Input Sesitivity (Vrms Sine) 1.4
CMRR @ 60Hz (min/typ) -37db / -60db
Max Votage Gain (dB) 29
Power Consumption (typ/max) 770VA / 500VA
Protection Thermal, Short Circuit, Impedance Overload
Cooling 2 x 80mm Fans
Transformer Type Toroidial
Finish Grey and Black Powder Coat
Chassis Construction Steel and Aluminum
Rackmount Yes (Kit Available)
Other Features Tiltback or Upright Wedge Angles
Dimensions (DWH, inches) 11.1 x 18.6 x 11
Dimensions (DWH, cm) 28 x 47 x 28
Weight (lbs/kg) 28.2 / 12.
