JBL - JRX212

Description

Looking for a matched pair? Check out:

https://www.long-mcquade.com/GearHunter/882131/

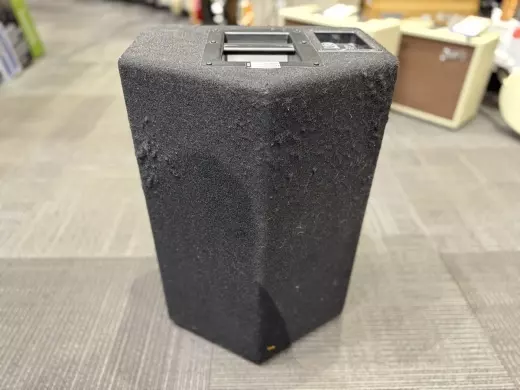

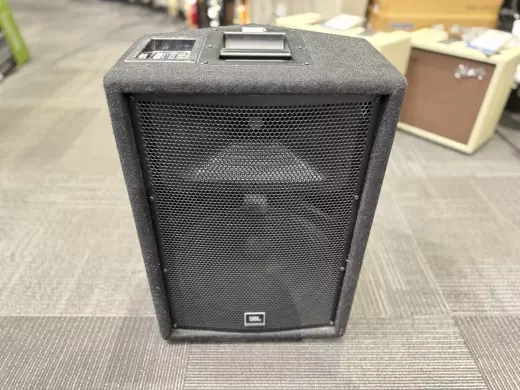

The JRX212 is a portable, twelve-inch, two-way speaker system designed specifically for live performance stage monitoring applications.

Features:
* JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
* JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
* The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.
* High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
* Progressive Transition high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
* The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
* SonicGuard protects the high frequency driver from excess power without interrupting the performance.
* Non-resonant, all-steel handles
* Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
* Dual-angle pole-mount socket allows the speaker to tilt 10 degrees for more uniform audience coverage.

Specifications:
* Power Rating: 250 W / 1000 W
* Frequency Range (-10 dB): 60 Hz - 20 kHz
* Frequency Response (+/-3 dB): 80 Hz - 18 kHz
* Sensitivity (@1m): 98 dB SPL (1w/1m)
* Nominal Impedance: 8 ohms
* Recommended Amplifier Power: 250 W to 500 W into 8 ohms
* Maximum SPL: 128 dB
* Nominal Dispersion: 90 x 50 degrees
* Crossover Frequency: 2.1 kHz
* Low Frequency Driver: JBL M112-8
* High Frequency Driver: JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition Waveguide

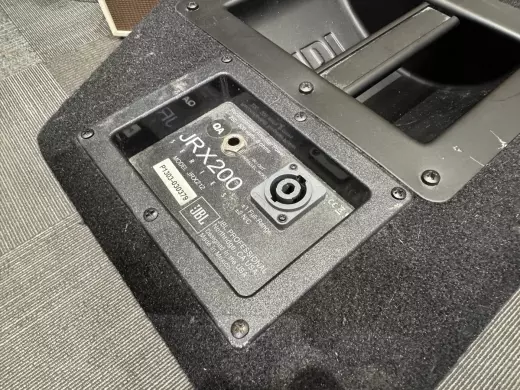

* Input Connectors: Neutrik Speakon NL-4 (x1); .25 in
TS phone jack (x1); parallel
* Dimensions: 23 in x 15.7 in x 12.8 in
* Weight: 43 lbs
