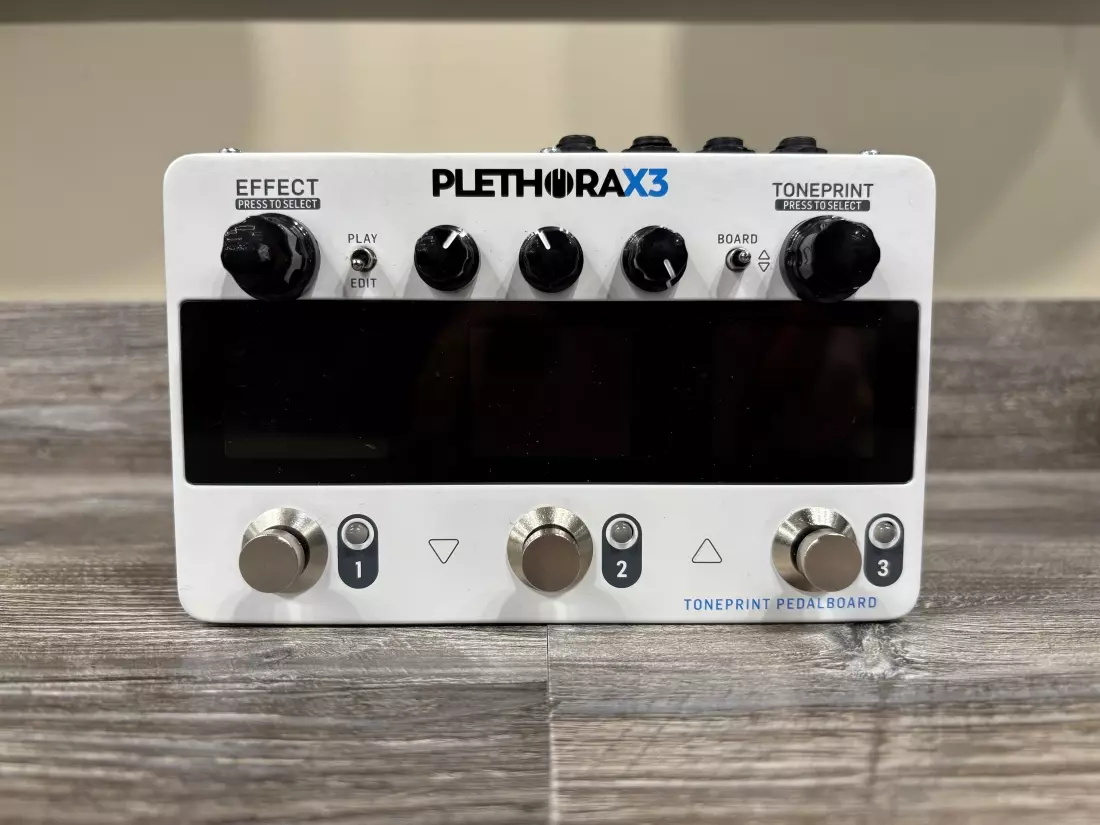

TC Electronic - Plethora X3 Pedalboard

Description

PLETHORA X3 is your flexible collection of up to 127 mini boards within your pedalboard just like the original PLETHORA X5. In comparison, the only hint of a compromise is 3 slots instead of 5, but you may well find that beneficial, as it takes up less precious real estate on your pedalboard! Rest assured that the sound quality and flexibility is every bit as hard rocking as PLETHORA X5.

Load any one of your favorite TC Electronic TonePrint effects in any one of the 3 pedal slots. Then add up to 75 custom, swift-recall TonePrints to each effect and youre good to go. Once you have buckled up and got your fingers flying, step up and MASH the footswitches for mind-bending expressiveness. Each footswitch acts as an expression controller with customizable mapping. Tailor each effect and MASH-functionality to catch your drift and fit your playing style perfectly!

Features

* Highly-flexible TonePrint pedalboard with simple, intuitive controls
* Create and customize up to 127 custom boards with any combination of TonePrint pedals
* Populate each board with up to 3 pedals including all TonePrint effects
* Store up to 75 TonePrints per effect for fast and easy recall
* Effects include HELIX PHASER, VISCOUS VIBE, TAPE DECK LOOPER, HALL OF FAME 2 REVERB, FLASHBACK 2 DELAY, SUB N UP OCTAVER, BRAINWAVES PITCH SHIFTER, CORONA CHORUS, HYPERGRAVITY COMPRESSOR, MIMIQ DOUBLER, VORTEX FLANGER, PIPELINE TAP TREMOLO, QUINTESSENCE HARMONY, SENTRY NOISE GATE, SHAKER VIBRATO AND ALTER EGO VINTAGE ECHO
* Customizable effect signal chain on each board
* MASH technology turns all 3 footswitches into expression controllers with customizable mapping
* Includes built-in UniTune chromatic tuner
* Global speaker cab sim for direct play with audio interface and PA systems
* Bluetooth connection to the free TonePrint App to import tones from a vast library of TonePrints
* Use the free TonePrint App editor to access hundreds of effects parameters and design custom TonePrints
* Customize play controls with Hot Knobs
* Simple 3 knob control over each pedal for fast parameter tweaking
* 'Quick Swap' feature to instantly reorganize your signal chain
* Automatically saves your settings as you go
* MIDI IN for selecting boards from external devices
* Full stereo I/O with low noise and high levels of headroom
* Regular firmware updates to include new boards, new pedals, new TonePrints and some top secret exclusive stuff

Specifications

Bypass mode: True Bypass

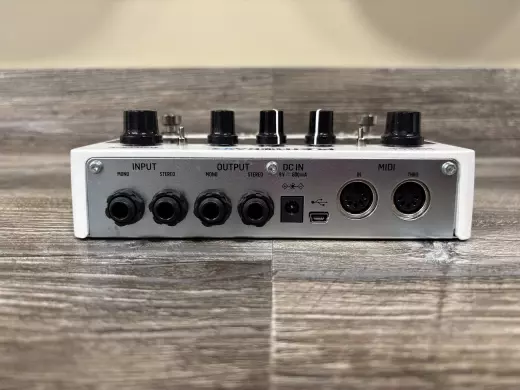

Input connectors: 2 x 1/4" TS, unbalanced
Input impedance: 1 MΩ
Output connectors: 2 x 1/4" TS, unbalanced
MIDI in / thru: 2 x 5-pin DIN

Power input
Standard 5.5 / 2.1 mm 9 VDC, centre negative
600 mA (included)

Controls
EFFECT knob, TONEPRINT knob, parameter knobs (assignable), effect slot / MASH footswitches (assignable), PLAY / EDIT selector switch, BOARDS selector switch

Latency: 0.8 2.4 ms
USB port: Mini-B USB connector

Bluetooth
Version Version: 4.2 Low Energy
Operating frequency: 2.402 to 2.48 GHz
Channel Number: 40
RF output power: 8 dBm
Working distance: Up to 10 m measured in open space (wall and structures may affect range of device)
